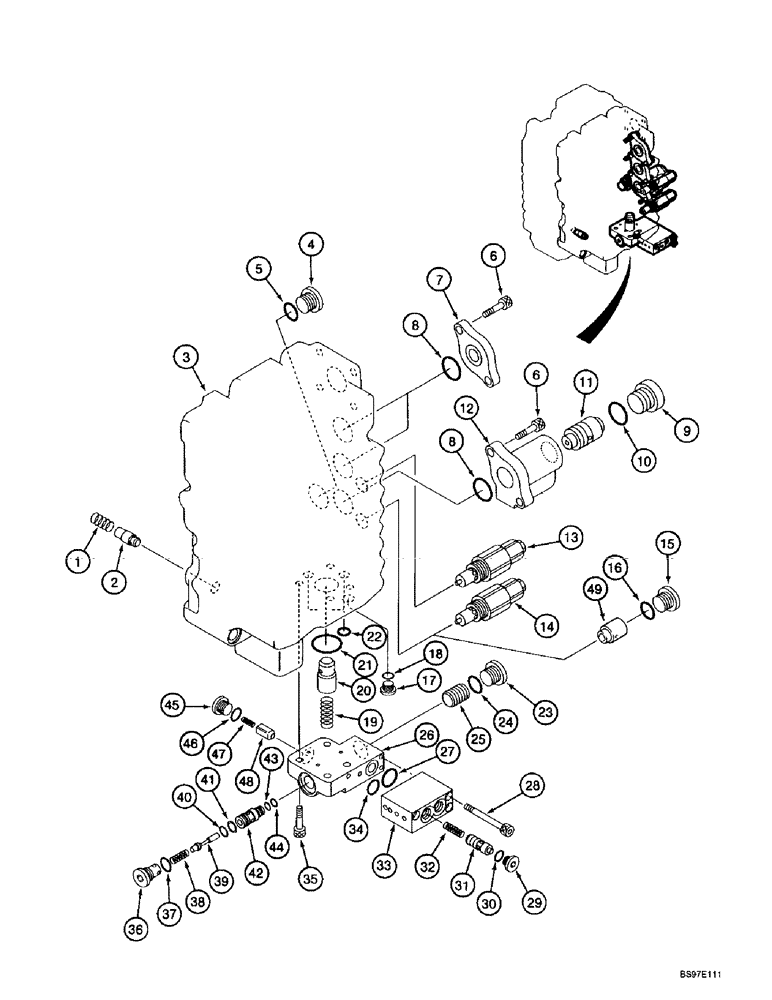

Запчасти Case 9010B (8-108) - CONTROL VALVE, THREE SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models without load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 49

1шт.

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models with load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 49

1шт.

1

160952A1

SPRING

- compression

1шт.

2

160930A1

PLUNGER

VALVE - check

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - three spool side

1шт.

4

160927A1

CAP

PLUG - port

1шт.

5

154495A1

O-RING

- plug

1шт.

6

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

4шт.

7

160850A1

RETAINER

PLATE - retainer

2шт.

8

160805A1

O-RING

- plate

2шт.

9

156262A1

CAP

PLUG - port

1шт.

10

155067A1

O-RING

- seal

1шт.

11

160929A1

PISTON

- valve, boom speed restriction

1шт.

12

160977A1

COVER

- valve

1шт.

13

162192A1

VALVE

- port relief, replaces 161319A1, parts list see Figure 8-116

1шт.

14

162192A1

VALVE

- port relief, parts list see Figure 8-116, 162042A1 valve

1шт.

15

160903A1

CAP

PLUG - port, 163696A1 valve

1шт.

16

154487A1

O-RING

- plug, 163696A1 valve

1шт.

17

160306A1

CAP

PLUG - port

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

19

160948A1

SPRING

- compression

1шт.

20

160914A1

VALVE POPPET

POPPET - valve

1шт.

21

154523A1

O-RING

- housing port

1шт.

22

154463A1

O-RING

- housing port

2шт.

23

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

24

154487A1

O-RING

- plug

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - valve stop

1шт.

26

160882A1

BLOCK ASSY.

VALVE ASSEMBLY - anti-drift

1шт.

27

154491A1

O-RING

-, Serial Range: block-valve

1шт.

28

961-5050

HEX SOC SCREW,M5 x 50mm, Cl 10.9

BOLT - hex socket, 5 - 0.8 x 50 mm, class 10.9

2шт.

29

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

33

160877A1

BLOCK ASSY.

VALVE ASSEMBLY - selector, anti-drift

1шт.

34

155205A1

O-RING

-, Serial Range: block-valve

1шт.

35

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

4шт.

36

NSS

NOT SOLD SEPARAT

PLUG - special, spool stop

1шт.

37

154475A1

O-RING

- plug

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - spool return

1шт.

39

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

40

154463A1

O-RING

- sleeve, outer

1шт.

41

153952A1

BACK-UP RING

RING - backup

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

43

154455A1

O-RING

- sleeve, inner

1шт.

44

153946A1

BACK-UP RING

RING - backup

1шт.

45

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

46

154475A1

O-RING

- plug

1шт.

47

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

48

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

49

163526A1

PLUG

- hydraulic port, 163696A1 valve, parts list see Figure 8-116

1шт.
