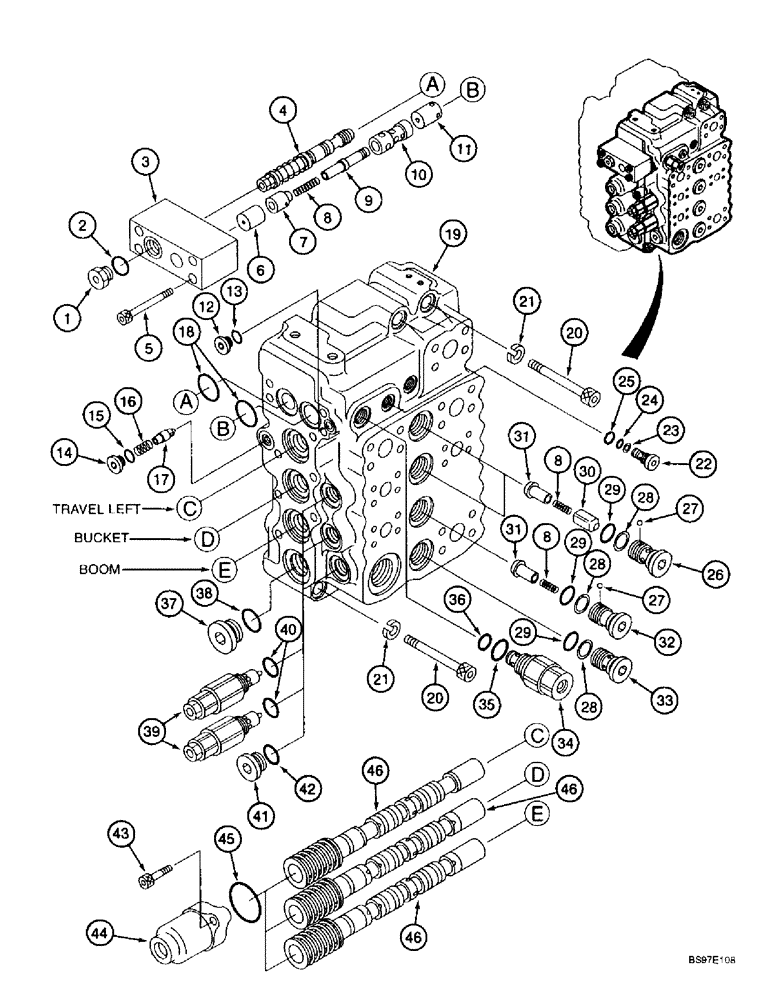

Запчасти Case 9010B (8-106) - CONTROL VALVE, THREE SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models without load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 46

1шт.

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models with load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 46

1шт.

1

160924A1

CAP

FITTING - hydraulic port

1шт.

2

154495A1

O-RING

- fitting

1шт.

3

160976A1

COVER

BLOCK - cover

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, arm 2

1шт.

5

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 45 mm, class 12.9

4шт.

6

160839A1

RING

BUSHING - passage

1шт.

7

160851A1

SLEEVE

- valve

1шт.

8

156027A1

SPRING

- valve

1шт.

9

160904A1

SPOOL

- valve, neutral pump destroke

1шт.

10

160857A1

SLEEVE

- valve

1шт.

11

160858A1

SPACER

- sleeve

1шт.

12

160902A1

CAP

PLUG - port

1шт.

13

154455A1

O-RING

- plug

1шт.

14

160306A1

CAP

PLUG - port

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

16

160949A1

SPRING

- compression

1шт.

17

160910A1

PLUNGER

VALVE - check, arm 2

1шт.

18

154509A1

O-RING

-, Serial Range: block-housing

2шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - three spool side

1шт.

20

862-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 95 mm, class 12.9

7шт.

21

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

7шт.

22

160916A1

ORIFICE

- hydraulic

1шт.

23

153943A1

BACK-UP RING

RING - backup

1шт.

24

154451A1

O-RING

- fitting

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting

1шт.

26

160918A1

CAP

PLUG - special

1шт.

27

155295A1

BALL

INSERT - locking, nylon

2шт.

28

153976A1

BACK-UP RING

RING - backup

3шт.

29

154495A1

O-RING

- plug

3шт.

30

155920A1

VALVE, CHECK

VALVE - check

1шт.

31

155911A1

VALVE

- check, load, upper for bucket and left travel, lower for boom

3шт.

32

160974A1

CAP

PLUG - special

1шт.

33

160923A1

CAP

PLUG - special

1шт.

34

160883A1

VALVE

ASSEMBLY - relief, neutral pump destroke, parts list see Figure 8-116

1шт.

35

154475A1

O-RING

- valve to housing, outer

1шт.

36

154463A1

O-RING

- valve to housing, inner

1шт.

37

156262A1

CAP

PLUG - port

1шт.

38

155067A1

O-RING

- seal

1шт.

39

162192A1

VALVE

- port relief, replaces 161319A1, upper for bucket circuit, lower for boomdown circuit, parts list see Figure 8-116, Includes: Ref. 40

2шт.

40

154487A1

O-RING

-, Serial Range: valve-housing

1шт.

41

160903A1

CAP

PLUG - port

1шт.

42

154487A1

O-RING

- plug

1шт.

43

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

6шт.

44

160975A1

COVER

- valve

3шт.

45

160806A1

O-RING

- cover

3шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - valve, M1, C1 and B2

3шт.
