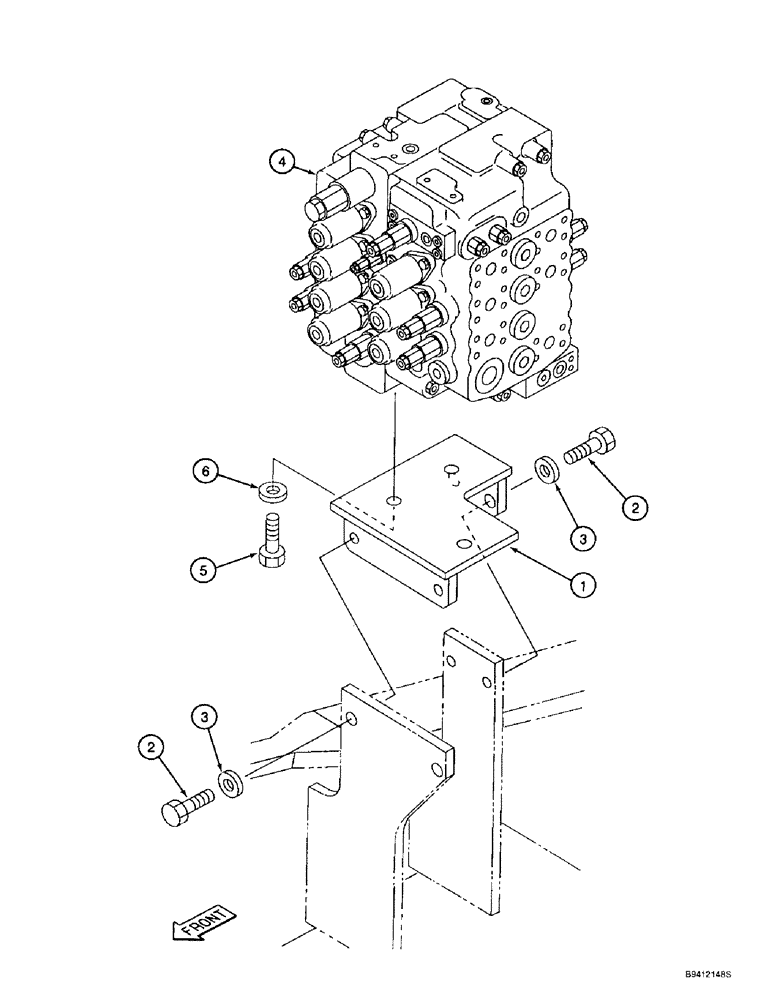

Запчасти Case 9010B (8-104) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

161207A1

BRACKET

- mounting, valve assembly

1шт.

2

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

4

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, machines without load hold, parts list see Figures 8-106 - 8-116

1шт.

4

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, machines with load hold, parts list see Figures 8-106 - 8-116

1шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

3шт.

6

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

3шт.
