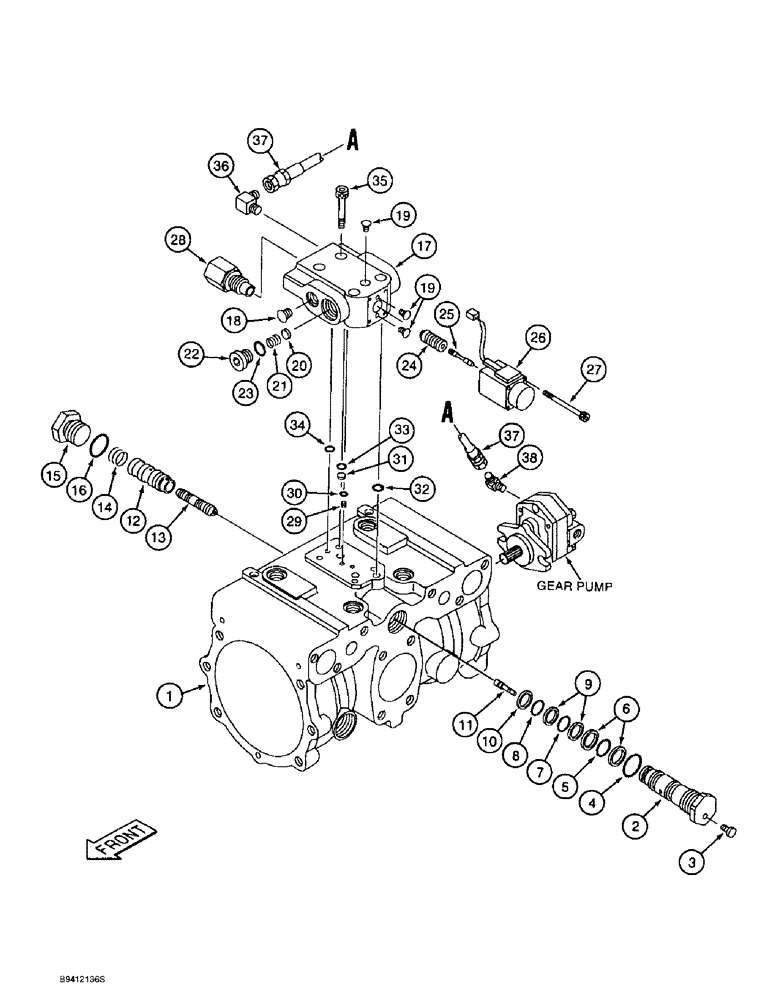

Запчасти Case 9010B (8-098) - HYDRAULIC PUMP ASSEMBLY, PROPORTIONING COMPONENTS (08) - HYDRAULICS

161072A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list see Figures 8-92 - 8-98, Includes: Ref. 1 - 38

1шт.

315567A1R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

315567A2R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

169303A1R

REMAN-HYD PUMP

Reman for New P/N 161072A1

1шт.

169303A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, reducing

1шт.

Part of proportioning valve KIT, P/N 161780A1

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

Part of proportioning valve KIT, P/N 161780A1

1шт.

4

161749A1

O-RING

O-RING - valve body

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

5

154491A1

O-RING

O-RING - valve body

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

6

153973A1

BACK-UP RING

RING - backup

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

7

154487A1

O-RING

O-RING - valve body

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

8

154483A1

O-RING

O-RING - valve body

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

9

153970A1

BACK-UP RING

RING - backup

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

10

153967A1

BACK-UP RING

RING - backup

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - reducing valve

1шт.

Part of proportioning valve KIT, P/N 161780A1

1шт.

161781A1

GASKET KIT

VALVE ASSEMBLY - reducing, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

14

161787A1

SPRING

SPRING - compression

1шт.

15

161764A1

PLUG

PLUG - port

1шт.

16

154503A1

O-RING

O-RING - plug

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - solenoid valve

1шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - port

3шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

20

161769A1

FILTER SCREEN

FILTER - disk

1шт.

21

161790A1

SPRING

SPRING - compression

1шт.

22

155480A1

PLUG

PLUG - valve

1шт.

23

154475A1

O-RING

O-RING - plug

1шт.

Part of proportioning solenoid seal KIT, P/N 161775A1

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE - solenoid valve

1шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - solenoid valve

1шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

161786A1

SOLENOID VALVE

SOLENOID ASSEMBLY - proportioning, Includes: Ref. 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

SOLENOID - proportioning

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - solenoid attaching

4шт.

28

161756A1

VALVE

VALVE ASSEMBLY - relief, Component parts not serviced separately.

1шт.

29

NSS

NOT SOLD SEPARAT

ORIFICE - proportioning

1шт.

Part of proportioning solenoid components KIT, P/N 161783A1

1шт.

30

154451A1

O-RING

O-RING - orifice

1шт.

Part of proportioning solenoid seal KIT, P/N 161775A1

1шт.

31

161769A1

FILTER SCREEN

FILTER - disk

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - filter

2шт.

Part of proportioning solenoid seal KIT, P/N 161775A1

1шт.

33

154471A1

O-RING

O-RING - housing

1шт.

Part of proportioning solenoid seal KIT, P/N 161775A1

1шт.

34

154459A1

O-RING

O-RING - seal

1шт.

Part of proportioning solenoid seal KIT, P/N 161775A1

1шт.

35

863-8045

HEX SOC SCREW,M8 x 45mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 45 mm, class 12.9

4шт.

36

161752A1

ELBOW

ELBOW - 90 degree, special

1шт.

37

161751A1

HYDRAULIC HOSE,260.00 mm

Pump transfer line

1шт.

38

161752A1

ELBOW

ELBOW - 90 degree, special

1шт.

161774A1

SEAL KIT

KIT - seal components, Includes: Ref. 4, 5, 6, 7, 8, 9, 10 and 16 see also Figures 8-92 - 8-98

1шт.

161775A1

SEAL KIT

KIT - proportioning solenoid seal, Includes: Refs. 23, 30, 32-34

1шт.

161783A1

GASKET KIT

KIT - proportioning solenoid components, Includes: Refs. 17-19, 24, 25 and 29

1шт.

161780A1

GASKET KIT

KIT - proportioning valve, Includes: Refs. 2, 3 and 11

1шт.
