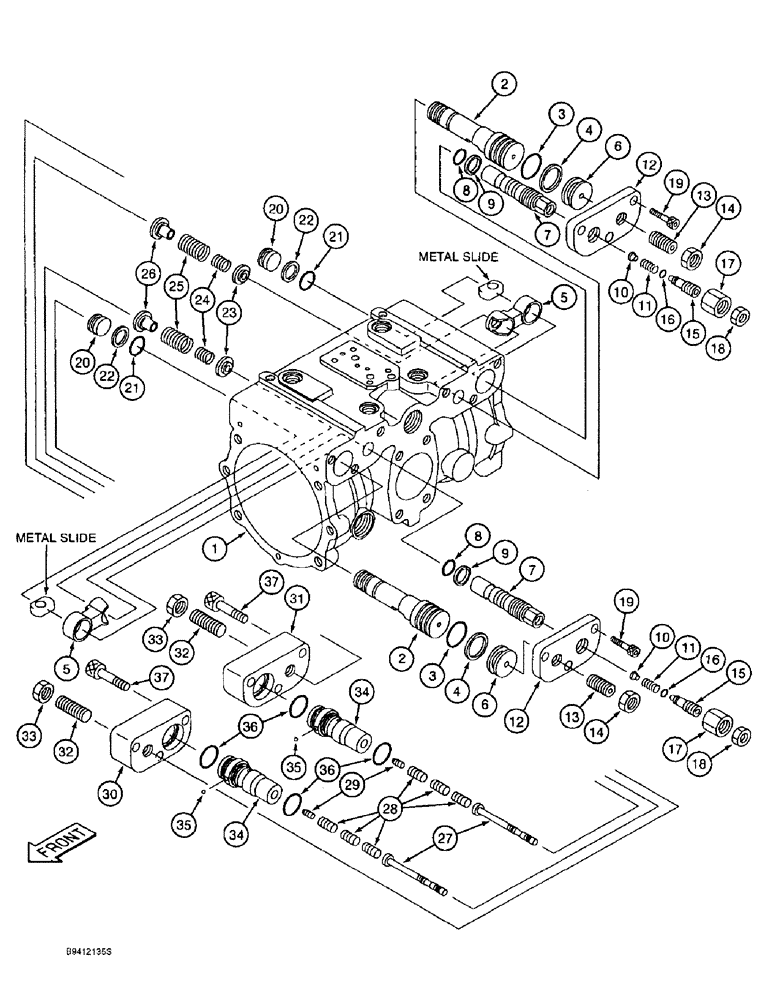

Запчасти Case 9010B (8-096) - HYDRAULIC PUMP ASSEMBLY, REGULATOR COMPONENTS (08) - HYDRAULICS

161072A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list see Figures 8-92 - 8-98, Includes: Ref. 1 - 37

1шт.

315567A1R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

315567A2R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

169303A1R

REMAN-HYD PUMP

Reman for New P/N 161072A1

1шт.

169303A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

161755A1

PISTON

PISTON - regulator

2шт.

3

154523A1

O-RING

O-RING - piston

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

4

153997A1

BACK-UP RING

RING - backup

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

5

161763A1

STAY

GUIDE - regulator

2шт.

6

161759A1

STOP

PLUG - special

2шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - regulator

2шт.

Part of pump components KIT, P/N 161776A1

1шт.

8

154483A1

O-RING

O-RING - spool

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

9

153967A1

BACK-UP RING

RING - backup

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

10

156865A1

SPRING SEAT

SEAT - spring

2шт.

11

156864A1

SPRING

SPRING - compression

2шт.

12

161799A1

COVER

COVER - valve

2шт.

13

161761A1

SET SCREW

SCREW - set, adjusting

2шт.

14

161797A1

NUT

NUT - special, locking

2шт.

15

161767A1

PLUG

PLUG - adjusting

2шт.

16

154455A1

O-RING

O-RING - plug

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

17

161768A1

NUT

NUT - special

2шт.

18

161793A1

NUT

NUT - special, locking

2шт.

19

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

20

161760A1

STOP

PLUG - special, regulator

2шт.

21

154495A1

O-RING

O-RING - plug

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

22

153976A1

BACK-UP RING

RING - backup

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

23

161766A1

SPRING SEAT

SEAT - spring

2шт.

24

161789A1

SPRING

SPRING - compression, inner

2шт.

25

161788A1

SPRING

SPRING - compression, outer

2шт.

26

156871A1

SPRING SEAT

SEAT - spring

2шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - regulator

2шт.

Part of pump components KIT, P/N 161776A1

1шт.

28

161765A1

PISTON

PISTON - regulator

6шт.

29

161770A1

PISTON

PISTON - regulator

2шт.

30

161800A1

COVER

COVER - valve

1шт.

31

161801A1

COVER

COVER - valve

1шт.

32

161762A1

SET SCREW

SCREW - set, adjusting

2шт.

33

161797A1

NUT

NUT - special

2шт.

161782A1

VALVE POPPET

SLEEVE ASSEMBLY - regulator valve, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - regulator valve

2шт.

35

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

36

154515A1

O-RING

O-RING - sleeve

4шт.

Part of seal components KIT, P/N 161774A1

1шт.

37

863-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

6шт.

161774A1

SEAL KIT

KIT - seal components, Includes: Ref. 3, 4, 8, 9, 16, 21, 22 and 36 also see Figures 8-92 - 8-98

1шт.

161776A1

HYD PUMP REPAIR KIT

KIT - pump components, major, Includes: Refs. 7 and 27 also see Figures 8-92 - 8-98.

1шт.
