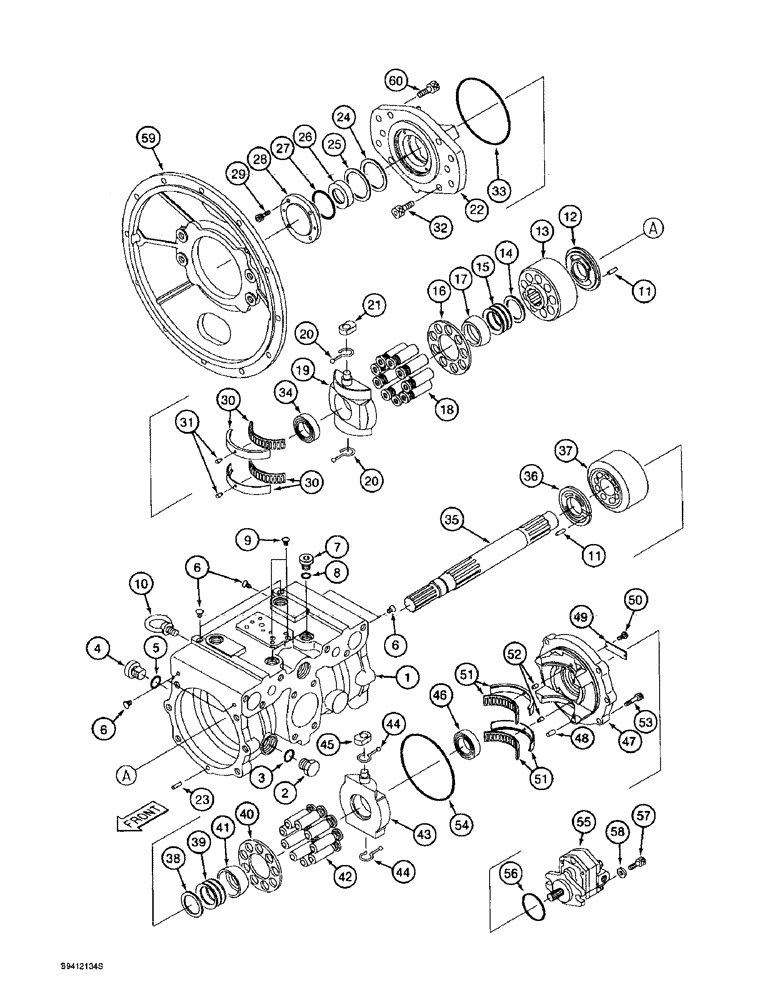

Запчасти Case 9010B (8-092) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

161072A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list see Figures 8-92 - 8-98, Includes: Ref. 1 - 60

1шт.

315567A1R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

315567A2R

REMAN-HYD PUMP

Reman for new P/N 161072A1

1шт.

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

169303A1R

REMAN-HYD PUMP

Reman for New PN 161072A1

1шт.

169303A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

2

161771A1

PLUG

PLUG - port

1шт.

3

154487A1

O-RING

O-RING - plug

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

4

161772A1

PLUG

PLUG - port

1шт.

5

154487A1

O-RING

O-RING - plug

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - port

8шт.

Part of pump components KIT, P/N 161776A1

1шт.

7

161773A1

PLUG

PLUG - port

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - plug

2шт.

Part of seal components KIT, P/N 161774A1

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

Part of pump components KIT, P/N 161776A1

1шт.

10

161792A1

EYEBOLT

BOLT - eye

1шт.

11

161753A1

COTTER PIN

PIN - dowel, valve plate timing

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

Part of KIT cylinder block group, front, P/N 161777A1

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

Part of KIT cylinder block group, front, P/N 161777A1

1шт.

Part of KIT cylinder block group, rear, P/N 161778A1

1шт.

14

161758A1

SPRING SEAT

SEAT - spring

1шт.

15

156846A1

KIT

SPRING - compression

1шт.

161779A1

GASKET KIT

RETAINER ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - spherical

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

Part of KIT cylinder block group, front, P/N 161777A1

1шт.

Part of KIT cylinder block group, rear, P/N 161778A1

1шт.

161784A1

GASKET KIT

PLATE ASSEMBLY - swash, front end, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - special

2шт.

21

161750A1

CAM

SLIDE - metal

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

23

156825A1

COTTER PIN

PIN - dowel

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - seal

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - seal

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

26

156855A1

OIL SEAL

SEAL - shaft

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

27

154667A1

O-RING

O-RING - seal

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

29

161795A1

BOLT

BOLT - hex, special

4шт.

30

161791A1

NEEDLE BEARING,Needle, 10.02mm ID x 11.2mm OD x 22.5mm W

BEARING - roller, crescent

2шт.

31

161754A1

COTTER PIN

PIN - dowel, bearing positioning

2шт.

32

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

33

154803A1

O-RING

O-RING - cover

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT - pump drive

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

Part of KIT cylinder block group, rear, P/N 161778A1

1шт.

37

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

Part of KIT cylinder block group, front, P/N 161777A1

1шт.

Part of KIT cylinder block group, rear, P/N 161778A1

1шт.

38

161758A1

SPRING SEAT

SEAT - spring

1шт.

39

156846A1

KIT

SPRING - compression

1шт.

161779A1

GASKET KIT

RETAINER ASSEMBLY - piston, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - spherical

1шт.

42

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

Part of KIT cylinder block group, front, P/N 161777A1

1шт.

Part of KIT cylinder block group, rear, P/N 161778A1

1шт.

161785A1

PLATE ASSY.

PLATE ASSEMBLY - swash, front end, Includes: Ref. 43 - 60

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

44

NSS

NOT SOLD SEPARAT

GUIDE - special

2шт.

45

161750A1

CAM

SLIDE - metal

1шт.

46

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

47

NSS

NOT SOLD SEPARAT

COVER - housing, rear

1шт.

Part of pump components KIT, P/N 161776A1

1шт.

48

156825A1

COTTER PIN

PIN - dowel

1шт.

49

NSS

NOT SOLD SEPARAT

NAMEPLATE - pump

1шт.

50

NSS

NOT SOLD SEPARAT

SCREW - drive

2шт.

51

161791A1

NEEDLE BEARING,Needle, 10.02mm ID x 11.2mm OD x 22.5mm W

BEARING - roller, crescent

2шт.

52

161754A1

COTTER PIN

PIN - dowel, bearing positioning

2шт.

53

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

54

154803A1

O-RING

O-RING - cover

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

55

161757A1

PUMP

PUMP ASSEMBLY - gear, Includes: Ref. 55A and 55B

1шт.

55a

166019A1

SEAL KIT

KIT - seal, gear pump, not shown

1шт.

55b

166020A1

BOLT

BOLT - hex, rear cover mounting, gear pump, not shown

4шт.

56

154623A1

O-RING

O-RING - pump assembly

1шт.

Part of seal components KIT, P/N 161774A1

1шт.

57

161796A1

BOLT

BOLT - special

2шт.

58

161798A1

WASHER

WASHER - flat

2шт.

59

165505A1

FLANGE

FLANGE - mounting

1шт.

60

157075A1

BOLT

BOLT - hex socket, special, replaces 161794A1

4шт.

161774A1

SEAL KIT

KIT - seal components, Includes: Refs. 3, 5, 8, 26, 27, 33, 54 and 56. See also Figures 8-96 and 8-98.

1шт.

161776A1

HYD PUMP REPAIR KIT

KIT - pump components, major, Includes: Refs. 1, 6, 9, 22, 24-26, 28, 34, 35, 46 and 47. See also Figure 8-96.

1шт.

161777A1

HYD PUMP REPAIR KIT

KIT - cylinder block group, front, Includes: Refs. 12, 13, 18, 37 and 42. See also Figure 8-96

1шт.

161778A1

HYD PUMP REPAIR KIT

KIT - cylinder block group, rear, Includes: Refs. 13, 18, 36, 37 and 42. See also Figure 8-96.

1шт.
