(8-088) - AUXILIARY EQUIPMENT OPTION, SUPPLY/RETURN LINES - 2.5 METER ARM

Запчасти Case 9010B (8-088) - AUXILIARY EQUIPMENT OPTION, SUPPLY/RETURN LINES - 2.5 METER ARM (08) - HYDRAULICS

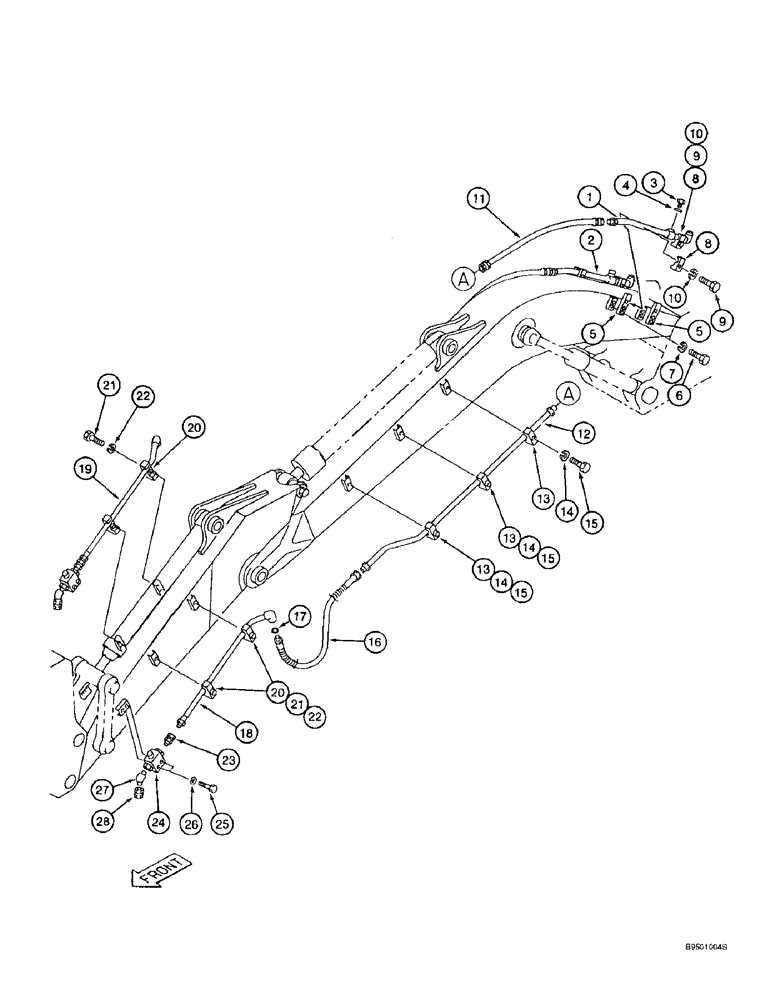

Схема запчастей Case 9010B - (8-088) - AUXILIARY EQUIPMENT OPTION, SUPPLY/RETURN LINES - 2.5 METER ARM (08) - HYDRAULICS
14
6
21
27
14
22
19
13
26
9
20
16
18
28
20
13
14
1
5
2
9
8
3
15
21
10
23
7
17
5
15
13
4
12
8
15
22
25
11
10
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

163297A1

TUBE ASSY.,27.2 mm OD

TUBE ASSEMBLY - boom supply/return, left-hand, (Component parts not serviced separately.)

1шт.

2

163297A1

TUBE ASSY.,27.2 mm OD

TUBE ASSEMBLY - boom supply/return, right-hand, (Component parts not serviced separately.)

1шт.

3

152924A1

PLUG

- port, Includes: Ref. 4

2шт.

4

154503A1

O-RING

- plug

1шт.

5

163302A1

BAR

BRACKET - flat, clamp mounting

4шт.

6

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

8

151486A1

CLAMP BRACKET

CLAMP - tube

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

11

163298A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Top-of-boom supply/return 19.00 mm ID x 1000.00 mm

2шт.

12

163299A1

TUBE ASSY.,27.2 mm OD

TUBE - boom-to-arm supply/return

2шт.

13

151486A1

CLAMP BRACKET

CLAMP - tube

6шт.

14

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

6шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

16

160678A1

HYDRAULIC HOSE,19.00 mm ID x 1400.00 mm

- Boom-to-arm supply/return, Includes Ref. 17 19.00 mm ID x 1400.00 mm

2шт.

17

154503A1

O-RING

- hose

1шт.

18

163300A1

HYD TUBE,27.2 mm OD

TUBE ASSEMBLY - cylinder supply/return, left-hand, (contains no serviceable parts)

1шт.

19

163301A1

HYD TUBE,27.2 mm OD

TUBE ASSEMBLY - cylinder supply/return, right-hand, (contains no serviceable parts)

1шт.

20

151486A1

CLAMP BRACKET

CLAMP - tube

4шт.

21

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

23

153638A1

ADAPTER

- straight, special

2шт.

24

153692A1

VALVE

- stop

2шт.

25

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

27

152400A1

ADAPTER

ELBOW - 45 degree, special

2шт.

28

153683A1

PLUG

CAP - hex, elbow

2шт.
