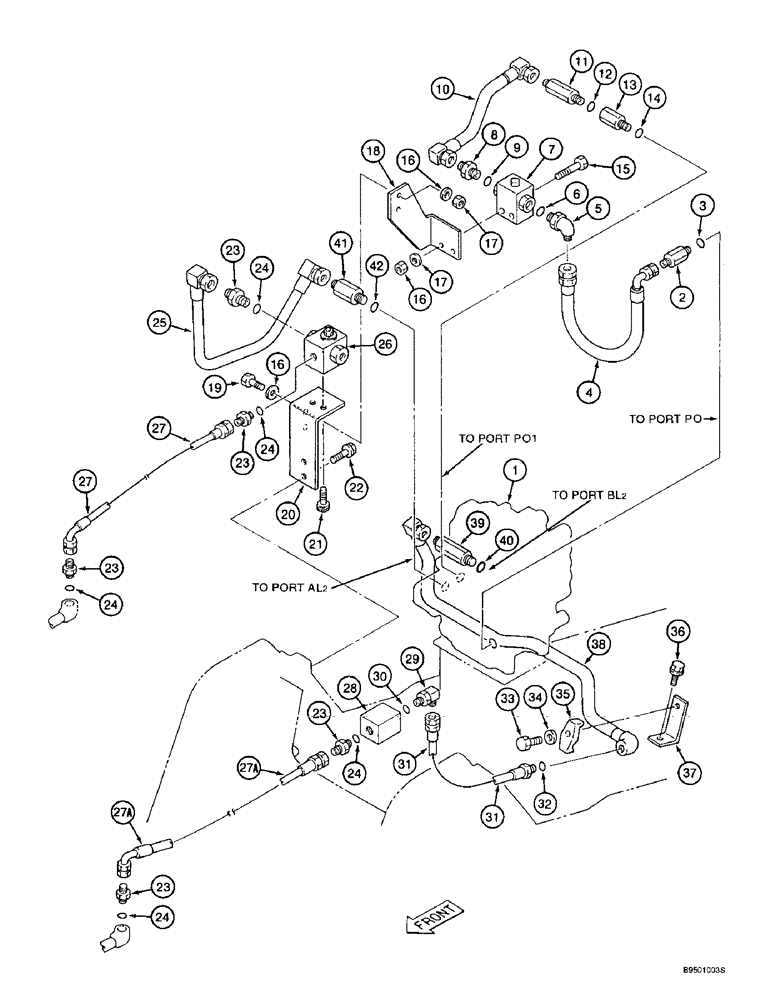

Запчасти Case 9010B (8-086) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, CYLINDER SUPPLY LINES - AT VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, parts list see Figures 8-106 - 8-116

1шт.

2

159361A1

ADAPTER

- straight, special, Includes: Ref. 3

1шт.

3

154487A1

O-RING

- adapter

1шт.

4

163290A1

HOSE ASSY.

HOSE - 520 mm (20-1/2 inch) long (from control valve port PO to equipment pump flow selector valve)

1шт.

5

159371A1

ELBOW

- 90 degree, special, Includes: Ref. 6

1шт.

6

154503A1

O-RING

- elbow

1шт.

7

159485A1

VALVE

- selector, equipment pump flow

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 9

1шт.

9

154503A1

O-RING

- adapter

1шт.

10

163288A1

TUBE ASSY.

TUBE - (from control valve port PO1 to equipment pump flow selector valve)

1шт.

11

163287A1

STUD

CONNECTOR - hydraulic, straight, Includes: Ref. 12

1шт.

12

154487A1

O-RING

- connector

1шт.

13

163285A1

VALVE

- check, Includes: Ref. 14

1шт.

14

154495A1

O-RING

- check valve, replaces 163286A1 O-ring

1шт.

15

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

16

150811A1

WASHER

- flat, special, 12 mm

6шт.

17

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

18

163289A1

BRACKET

- mounting, stop valve

1шт.

19

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

20

163273A1

BRACKET

- mounting, supply valve

1шт.

21

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

23

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 24

5шт.

24

154503A1

O-RING

- adapter

1шт.

25

163284A1

TUBE ASSY.,27.2 mm OD

TUBE - (from control valve port AL2 to auxiliary option selector valve)

1шт.

26

159748A1

VALVE

- selector, auxiliary option

1шт.

27

163274A1

HOSE ASSY.

HOSE - 1080 mm (42-1/2 inch) long, auxiliary option supply/return line (from auxiliary option selector valve to right-hand boom supply line)

1шт.

27a

163274A1

HOSE ASSY.

HOSE - 1080 mm (42-1/2 inch) long, auxiliary option supply/return line (from hydraulic manifold to left-hand boom supply line)

1шт.

28

163270A1

MANIFOLD

- hydraulic

1шт.

29

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 30

1шт.

30

154503A1

O-RING

- elbow

1шт.

31

163269A1

HOSE ASSY.

HOSE - 600 mm (23-5/8 inch) long, control valve to manifold line (from tube to hydraulic manifold), Includes: Ref. 32

1шт.

32

154503A1

O-RING

- hose

1шт.

33

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

1шт.

34

150811A1

WASHER

- flat, special, 12 mm

1шт.

35

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

37

162230A1

BRACKET

- 90 degree angle, tube clamp support

1шт.

38

163268A1

TUBE ASSY.

TUBE - control valve to manifold line (from control valve port, Serial Range: BL2-hose)

1шт.

39

152019A1

ELEC CONNECTOR

ADAPTER - straight, Includes: Ref. 40

1шт.

40

154503A1

O-RING

- adapter

1шт.

41

156664A1

STUD

ADAPTER - straight, special, Includes: Ref. 42

1шт.

42

154503A1

O-RING

- adapter

1шт.
