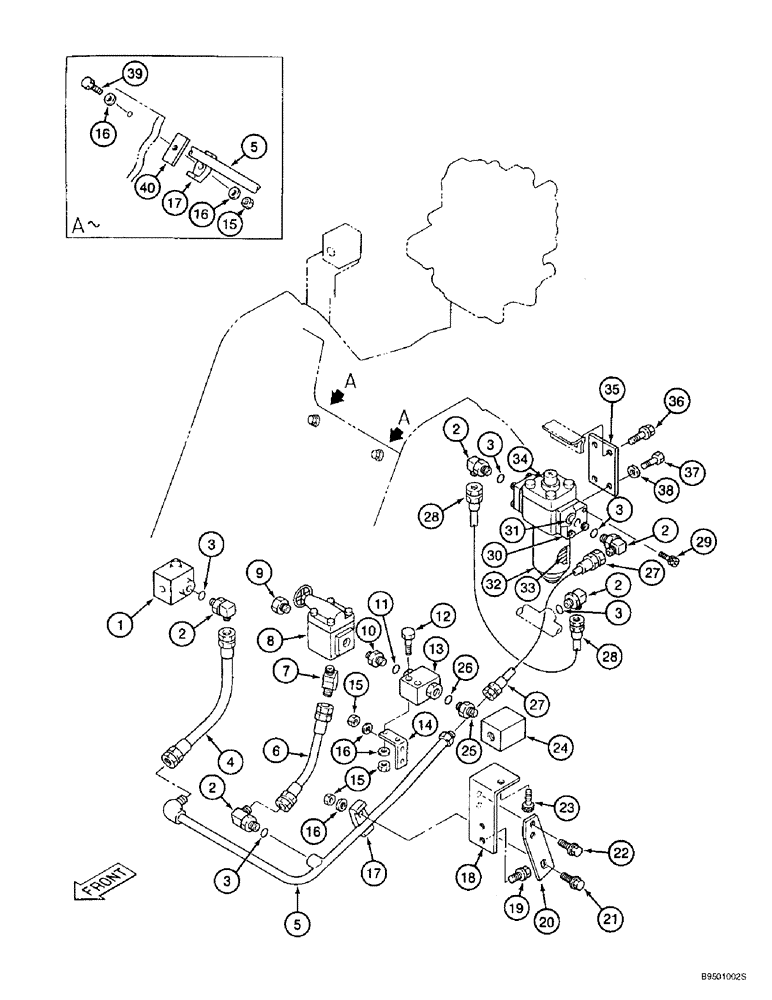

Запчасти Case 9010B (8-084) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, SUPPLY VALVE TO OIL FILTER (08) - HYDRAULICS

1

159748A1

VALVE

- selector

1шт.

2

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 3

5шт.

3

154503A1

O-RING

- elbow

1шт.

4

163283A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

- Supply-valve-to-filter line, at supply valve 19.00 mm ID x 490.00 mm

1шт.

5

163277A1

TUBE

- supply, Serial Range: valve-filter

1шт.

6

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

(Relief valve to supply-valve-to-filter line) 19.00 mm ID x 400.00 mm

1шт.

7

152400A1

ADAPTER

ELBOW - 45 degree, special

1шт.

8

159490A1

VALVE

- relief

1шт.

9

151002A1

PLUG

- pipe

1шт.

10

157685A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 11

1шт.

11

154503A1

O-RING

- adapter

1шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

13

159485A1

VALVE

- selector, auxiliary relief, single/dual flow

1шт.

14

163272A1

BRACKET

- 90 degree, stop valve mounting

1шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

7шт.

16

150811A1

WASHER

- flat, special, 12 mm

11шт.

17

151486A1

CLAMP BRACKET

CLAMP - tube

3шт.

18

163273A1

BRACKET

- mounting, manifold

1шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

20

163282A1

BRACKET

- mounting, tube clamp

1шт.

21

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

22

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

23

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

1шт.

24

163270A1

MANIFOLD

- hydraulic

1шт.

25

163271A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 26

1шт.

26

154503A1

O-RING

- adapter

1шт.

27

163276A1

HYDRAULIC HOSE,19.00 mm ID x 520.00 mm

- Supply-valve-to-filter line, at filter 19.00 mm ID x 520.00 mm

1шт.

28

162356A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

- Filter return 19.00 mm ID x 800.00 mm

1шт.

29

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

8шт.

30

163275A1

FLANGE

- tube mounting

2шт.

31

154569A1

O-RING

- flange to filter, replaces 150843A1 O-ring

2шт.

32

163278A1

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 33 and 34

1шт.

33

163279A1

HYDRAULIC OIL FILTER

ELEMENT - oil filter

1шт.

34

159706A1

INDICATOR

GAUGE - special indicator

1шт.

35

163280A1

SUPPORT

BRACKET - mounting, hydraulic filter

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

37

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

38

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

39

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

2шт.

40

163281A1

LARGE PLATE

PLATE - support, tube clamp

2шт.
