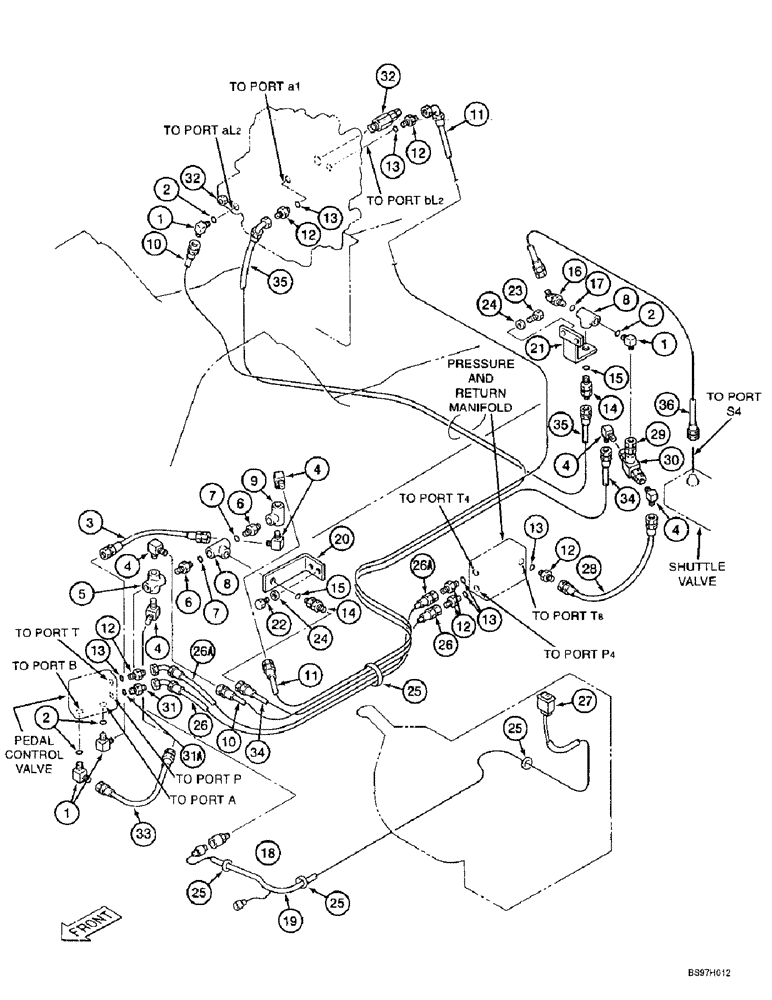

Запчасти Case 9010B (8-082) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

4шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

156735A1

HOSE,6.3 mm ID x 350.00 mm

- 350 mm (13-3/4 inch) long (pedal control valve port A to tee fitting)

1шт.

4

153596A1

ADAPTER

ELBOW - 90 degree

6шт.

5

152303A1

4 WAY CONNECTION

CROSS - special

1шт.

6

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

8

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

2шт.

9

152135A1

TEE

- special

1шт.

10

151904A1

HOSE,6.3mm ID x 3100mm L

(Main control valve port aL2 to special hydraulic cross fitting) 63.00 mm ID x 3100.00 mm

1шт.

11

159433A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long (main control valve port bL2 to tee fitting)

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

6шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 15

2шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150933A1

ELBOW

- 45 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

19

162641A1

HARNESS

- wiring

1шт.

20

159708A1

BRACKET

- 90 degree angle, hydraulic line support

1шт.

21

163267A1

BRACKET

- 90 degree angle, hydraulic line support

1шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

2шт.

24

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

25

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

14шт.

26

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment return line (pedal control valve port T to pressure and return manifold port T4)

1шт.

26a

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment pressure line (pedal control valve port P to pressure and return manifold port P4)

1шт.

27

162642A1

SWITCH

- special, replaces 162828A1 switch

1шт.

28

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long (from tee fitting to pressure and return manifold port T8)

1шт.

29

153601A1

ADAPTER

- straight

1шт.

30

162643A1

VALVE

- selector, pilot line

1шт.

31

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 31A

1шт.

31a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

32

162192A1

VALVE

- port relief

2шт.

33

152793A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long (pedal control valve port B to special hydraulic cross fitting)

1шт.

34

152264A1

HOSE,6.3mm ID x 2200mm L

Shuttle valve interconnection (Tee fitting to shuttle valve) 63.00 mm ID x 2200.00 mm

1шт.

35

161486A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long (shuttle valve to main control valve port a1)

1шт.

36

157854A1

HOSE,4mm ID x 750mm L

- 750 mm (29-1/2 inch) long (main shuttle valve port S4 to shuttle valve)

1шт.
