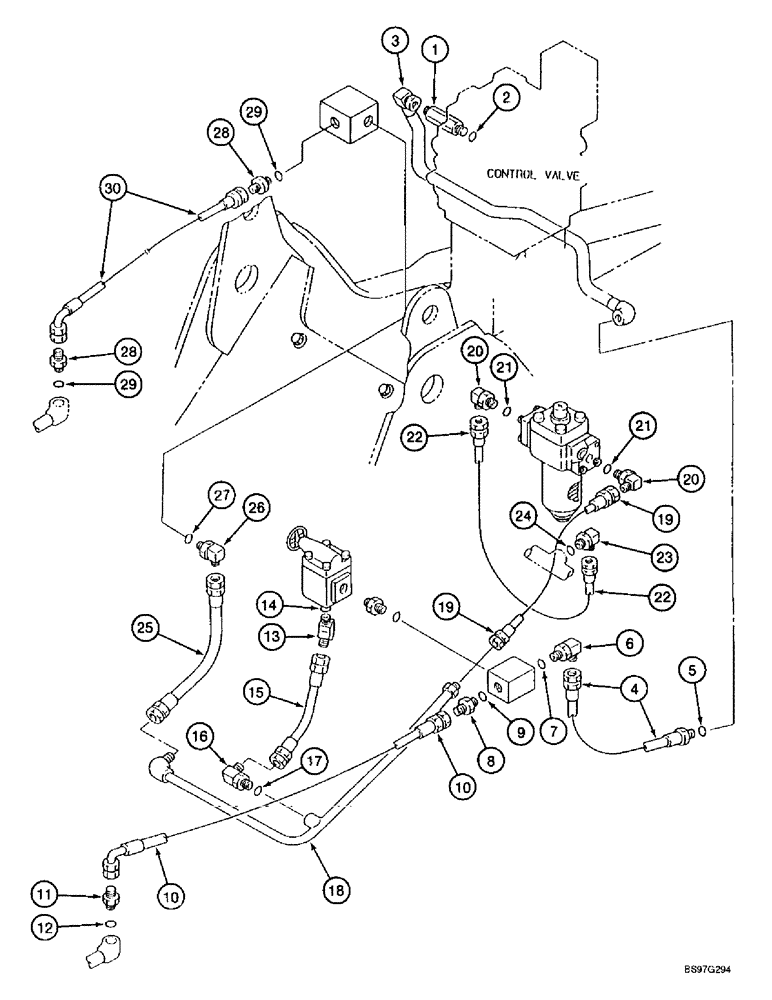

Запчасти Case 9010B (8-080) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, SUPPLY AND RELIEF LINES (08) - HYDRAULICS

1

152019A1

ELEC CONNECTOR

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

- adapter

1шт.

3

163268A1

TUBE ASSY.

TUBE - auxiliary equipment supply line

1шт.

4

163269A1

HOSE ASSY.

HOSE - 600 mm (23-5/8 inch) long, auxiliary equipment supply line (control valve port AL2 to supply and relief tube), Includes: Ref. 5

1шт.

5

154503A1

O-RING

- hose

1шт.

6

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 7

1шт.

7

154503A1

O-RING

- elbow

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 9

1шт.

9

154503A1

O-RING

- adapter

1шт.

10

163274A1

HOSE ASSY.

HOSE - 1080 mm (42-1/2 inch) long

1шт.

11

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154503A1

O-RING

- adapter

1шт.

13

152400A1

ADAPTER

ELBOW - 45 degree, special, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

15

165890A1

HYDRAULIC HOSE,19.00 mm ID x 270.00 mm

- Relief Line (Relief Valve to Auxillary Equipment Relief Tube) 19.00 mm ID x 270.00 mm

1шт.

16

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- elbow

1шт.

18

163277A1

TUBE

- auxiliary equipment relief

1шт.

19

163276A1

HYDRAULIC HOSE,19.00 mm ID x 520.00 mm

- Auxiliary equipment relief tube to filter 19.00 mm ID x 520.00 mm

1шт.

20

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 21

2шт.

21

154503A1

O-RING

- elbow

1шт.

22

162356A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

- Auxiliary equipment relief line (Filter to oil cooler supply line) 19.00 mm ID x 800.00 mm

1шт.

23

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 24

1шт.

24

154503A1

O-RING

- elbow

1шт.

25

163283A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

- Auxiliary equipment relief line (Manifold to auxiliary equipment relief tube) 19.00 mm ID x 490.00 mm

1шт.

26

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 27

1шт.

27

154503A1

O-RING

- elbow

1шт.

28

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 29

2шт.

29

154503A1

O-RING

- adapter

1шт.

30

163274A1

HOSE ASSY.

HOSE - 1080 mm (42-1/2 inch) long, auxiliary equipment relief line (relief line on, Serial Range: boom-manifold)

1шт.
