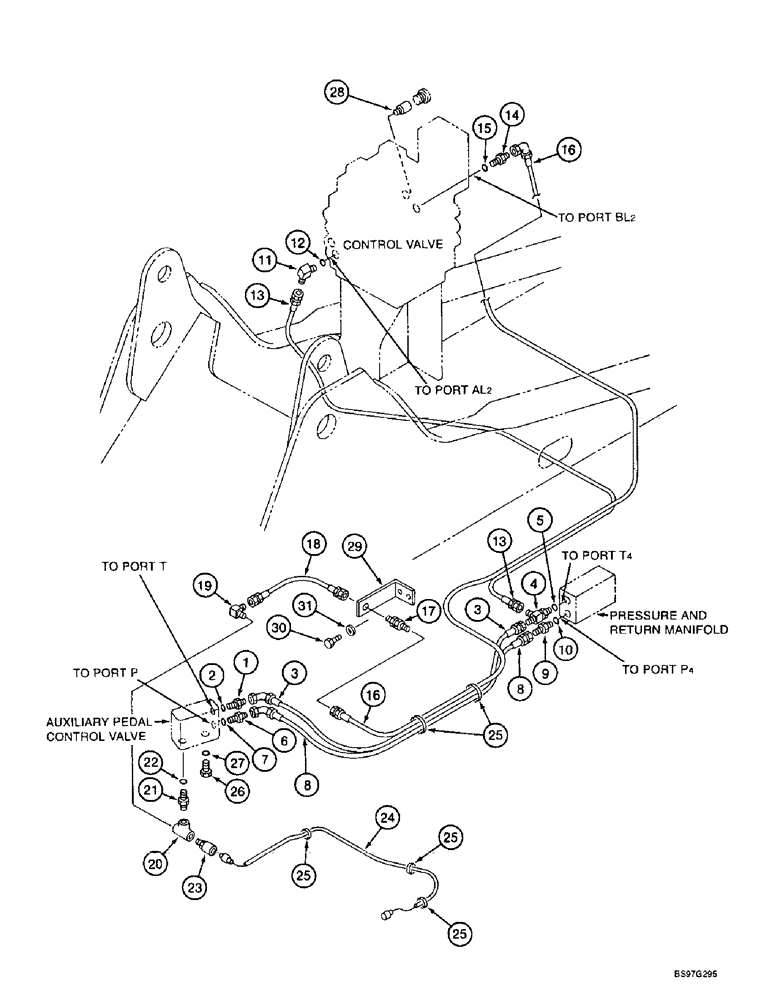

Запчасти Case 9010B (8-078) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment return line (pedal control valve port T to pressure and return manifold port T4)

1шт.

4

159497A1

TEE

- special, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

6

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment presssure line (pedal control valve port P to pressure and return manifold port P4)

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

152264A1

HOSE,6.3mm ID x 2200mm L

Control valve return line (Control valve port aL2 to tee fitting in pressure and return manifold port T4) 63.00 mm ID x 2200.00 mm

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159433A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, auxiliary option signal line (main control valve port bL2 to thru fitting at support bracket)

1шт.

17

159481A1

ADAPTER

FITTING - special

1шт.

18

152793A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, auxiliary option signal line (thru fitting at support bracket to auxiliary pedal control valve port B)

1шт.

19

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

20

152135A1

TEE

- special

1шт.

21

152899A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

23

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

24

159636A1

HARNESS

- wiring

1шт.

25

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

26

159002A1

PLUG

- port (auxiliary pedal control valve port A), Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

28

163526A1

PLUG

- hydraulic port

1шт.

29

159708A1

BRACKET

- 90 degree angle

1шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

31

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.
