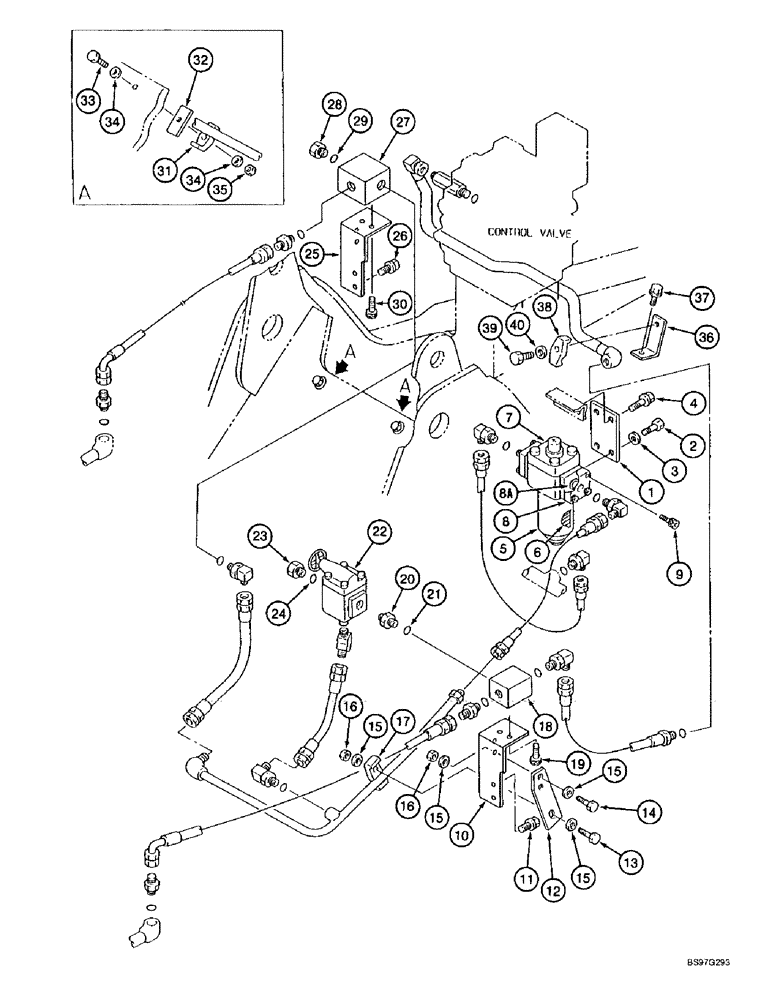

Запчасти Case 9010B (8-076) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, COMPONENT MOUNTING AND AHOSE SUPPORTS (08) - HYDRAULICS

1

163280A1

SUPPORT

BRACKET - mounting, filter

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

5

163278A1

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 6 and 7

1шт.

6

163279A1

HYDRAULIC OIL FILTER

ELEMENT - oil filter

1шт.

7

159706A1

INDICATOR

GAUGE - special indicator

1шт.

8

163275A1

FLANGE

- tube mounting

2шт.

8a

154569A1

O-RING

- flange

2шт.

9

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

8шт.

10

163273A1

BRACKET

- mounting

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

12

163282A1

BRACKET

- mounting

1шт.

13

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

15

150811A1

WASHER

- flat, special, 12 mm

6шт.

16

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

3шт.

17

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

18

163270A1

MANIFOLD

- hydraulic

1шт.

19

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

20

157685A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 21

1шт.

21

154503A1

O-RING

- adapter

1шт.

22

159490A1

VALVE

- relief

1шт.

23

151002A1

PLUG

- pipe, Includes: Ref. 24

1шт.

24

154503A1

O-RING

- plug

1шт.

25

163273A1

BRACKET

- mounting

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

27

159726A1

MANIFOLD

- hydraulic

1шт.

28

152924A1

PLUG

- manilfold, Includes: Ref. 29

1шт.

29

154503A1

O-RING

- plug

1шт.

30

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

31

151486A1

CLAMP BRACKET

CLAMP - tube

2шт.

32

163281A1

LARGE PLATE

PLATE - support

2шт.

33

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

2шт.

34

150811A1

WASHER

- flat, special, 12 mm

4шт.

35

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

36

162230A1

BRACKET

- 90 degree angle

1шт.

37

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

38

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

39

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

1шт.

40

150811A1

WASHER

- flat, special, 12 mm

1шт.
