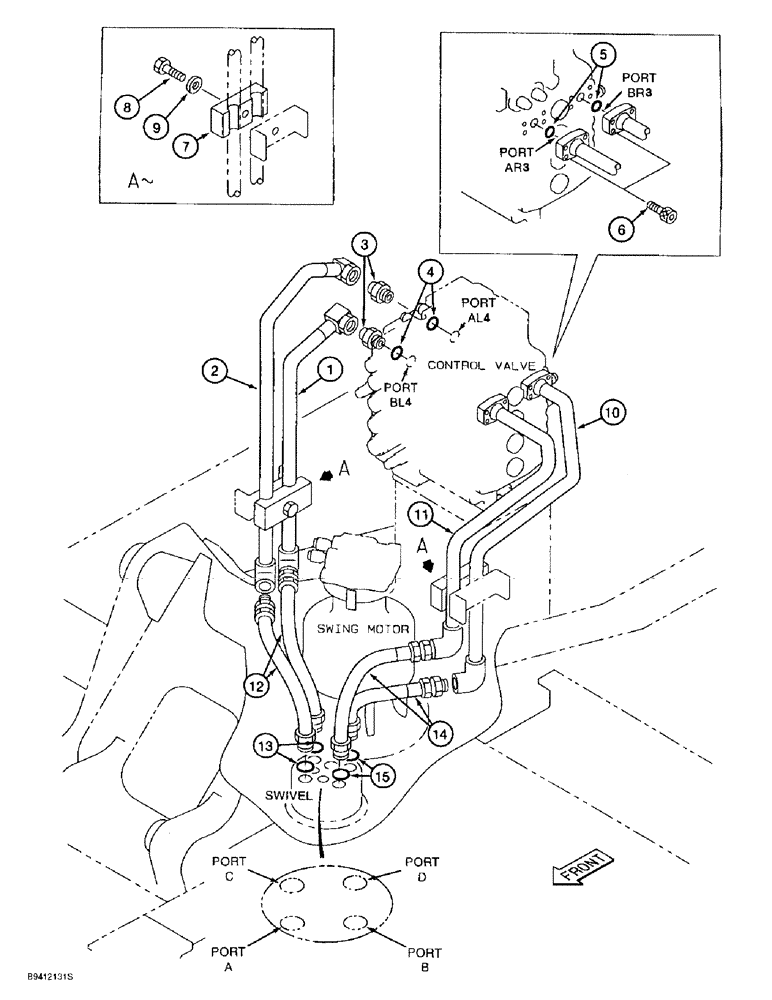

Запчасти Case 9010B (8-074) - TRACK DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

161181A1

TUBE ASSY.,27.2 mm OD, 585, 525 mm Length

TUBE - (from BL4 port of control valve)

1шт.

2

161182A1

TUBE ASSY.,27.2 mm OD, 525, 425 mm Length

TUBE - (from AL4 port of control valve)

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight (at ports AL4 and BL4 of control valve), Includes: Ref. 4

2шт.

4

154503A1

O-RING

- adapter

1шт.

5

154528A1

O-RING

- (at ports AR3 and BR3 of control valve)

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

7

152085A1

COLLAR

CLAMP - tube

2шт.

8

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

2шт.

9

150811A1

WASHER

- flat, special, 12 mm

2шт.

10

161203A1

TUBE ASSY.

TUBE - (from BR3 port of control valve)

1шт.

11

161202A1

TUBE ASSY.

TUBE - (from AR3 port of control valve)

1шт.

12

161156A1

HYDRAULIC HOSE,15.90 mm ID x 520.00 mm

(From AL4 and BL4 ports of control valve to ports A and C of hydraulic swivel), Includes Ref. 13 15.90 mm ID x 520.00 mm

2шт.

13

154503A1

O-RING

- hose

1шт.

14

161159A1

HYDRAULIC HOSE

HOSE - 430 mm (17 inch) long (from AR3 and BR3 ports of control valve to ports B and D of hydraulic swivel), Includes: Ref. 15

2шт.

15

154503A1

O-RING

- hose

1шт.
