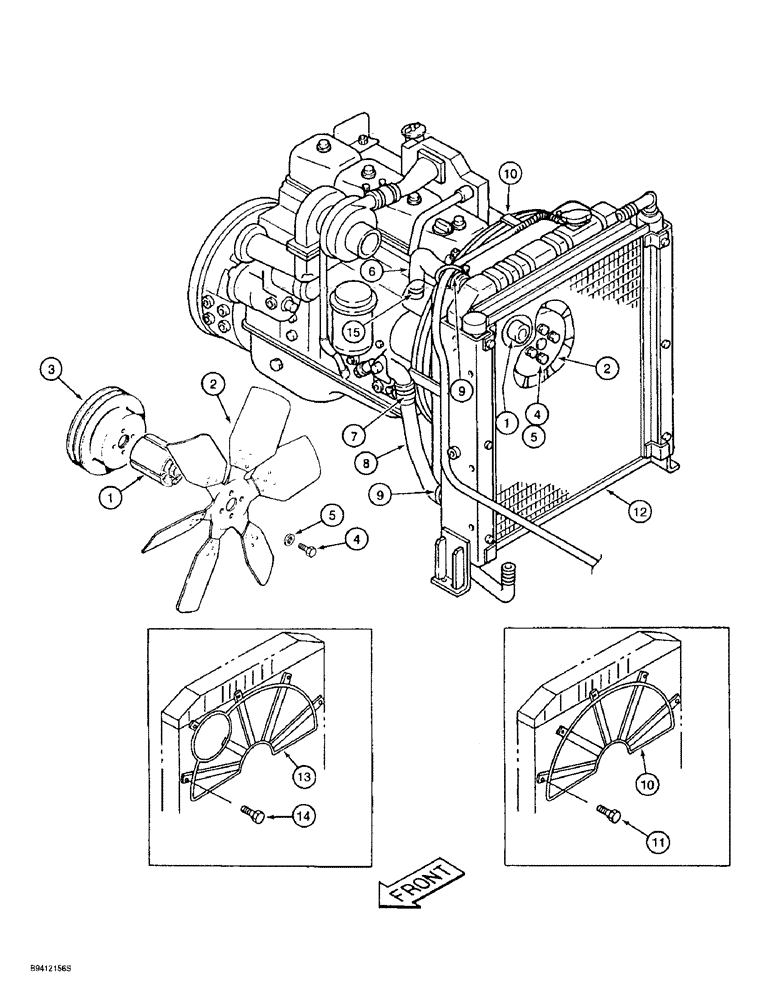

Запчасти Case 9010B (2-006) - RADIATOR, HOSES AND ENGINE FAN, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

1

A184546

SPACER

- fan, 60 mm long, with four mounting holes

1шт.

2

256550A1

FAN

- engine cooling

1шт.

3

A189284

PULLEY,151mm OD

- air conditioner compressor drive

1шт.

4

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 - 1.5 x 70 mm, class 10.9

4шт.

5

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

6

165515A1

RADIATOR HOSE

Upper, Replaces 161149A1

1шт.

7

152796A1

COLLAR

CLAMP - adjustable, wire type

1шт.

8

165516A1

RADIATOR HOSE

Lower, Replaces 161148A1

1шт.

9

157287A1

COLLAR

CLAMP - adjustable, radiator hose

2шт.

10

165521A1

GUARD ASSY.

GUARD - fan, machines without air conditioning compressor, replaces 161876A1 fan guard

1шт.

11

162121A1

BOLT,Sems, Hex, M8 x 16mm, Spcl

BOLT - special, fan guard attaching

5шт.

12

NSS

NOT SOLD SEPARAT

RADIATOR ASSEMBLY - water and hydraulic oil cooling, parts list Figure 2-26, parts list Figure 2-10 for radiator mounting parts

1шт.

13

165522A1

GUARD ASSY.

GUARD - fan, machines with air conditioning compressor

1шт.

14

162121A1

BOLT,Sems, Hex, M8 x 16mm, Spcl

BOLT - special

5шт.

15

150887A1

CLAMP

- adjustable, upper radiator hose

1шт.
