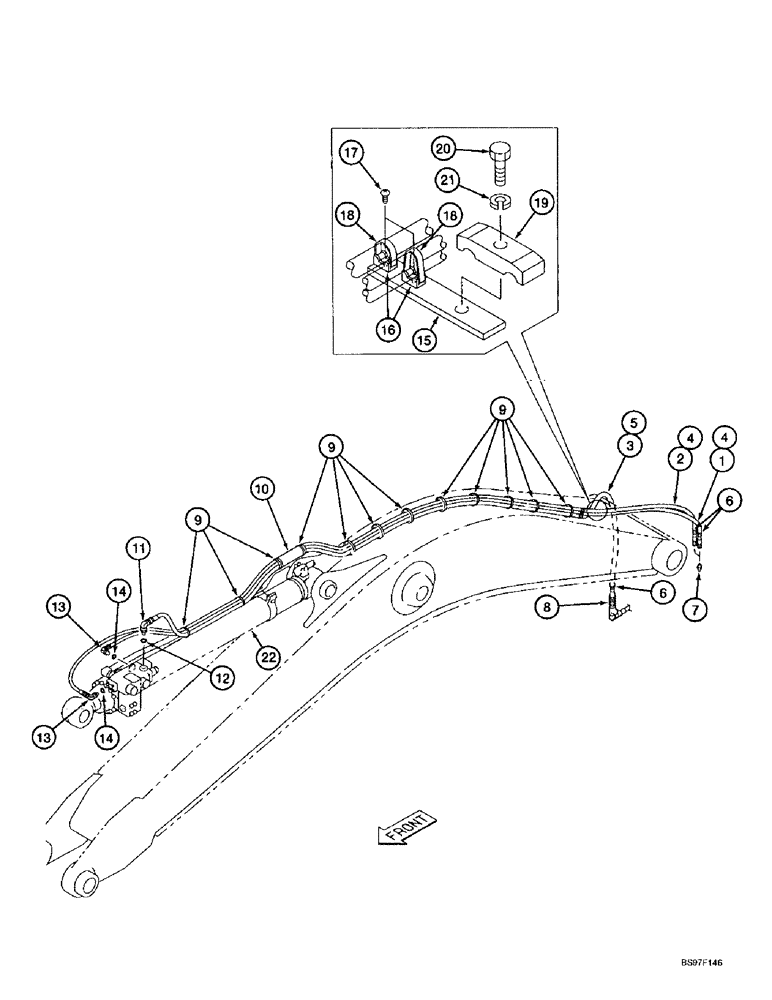

Запчасти Case 9010B (8-068) - ARM CYLINDER LINES, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

165338A1

HYDRAULIC HOSE,9.50 mm ID x 5250.00 mm

Arm Cylinder Release Signal Return Line, From Port T1 of the Arm Cylinder Lock Valve to the Fitting in the Mounting End of the Locking Hose Bracket, See Figure 8-14, Ref. 32 for Connections 9.50 mm ID x 5250.00 mm

1шт.

2

163712A1

HYDRAULIC HOSE

5560.00 mm Arm Cylinder Release Single Line, See Figure 8-34, Ref. 39 for Connections

1шт.

3

163454A1

HYDRAULIC HOSE,12.70 mm ID x 5500.00 mm

(From arm cylinder lock valve port T2 to tee in center of arm and boom return line, See Figure 8-14, Ref. 36 for connections 12.70 mm ID x 5500.00 mm

1шт.

4

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

5

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

6

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

7

153597A1

ADAPTER

- straight

2шт.

8

150073A1

ADAPTER

- straight

1шт.

9

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

10

163160A1

SHEET

PLATE - rubber

1шт.

11

159370A1

ELBOW

- 90 degree, special, Includes: Ref. 12

1шт.

12

154487A1

O-RING

- elbow

1шт.

13

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 14

2шт.

14

154475A1

O-RING

- elbow

1шт.

15

163713A1

BAR

PLATE - support

1шт.

16

150860A1

COLLAR

BRACKET - support

2шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

2шт.

18

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.

19

159742A1

COLLAR

CLAMP - hose

1шт.

20

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figures 8-136 for correct cylinder and components

1шт.
