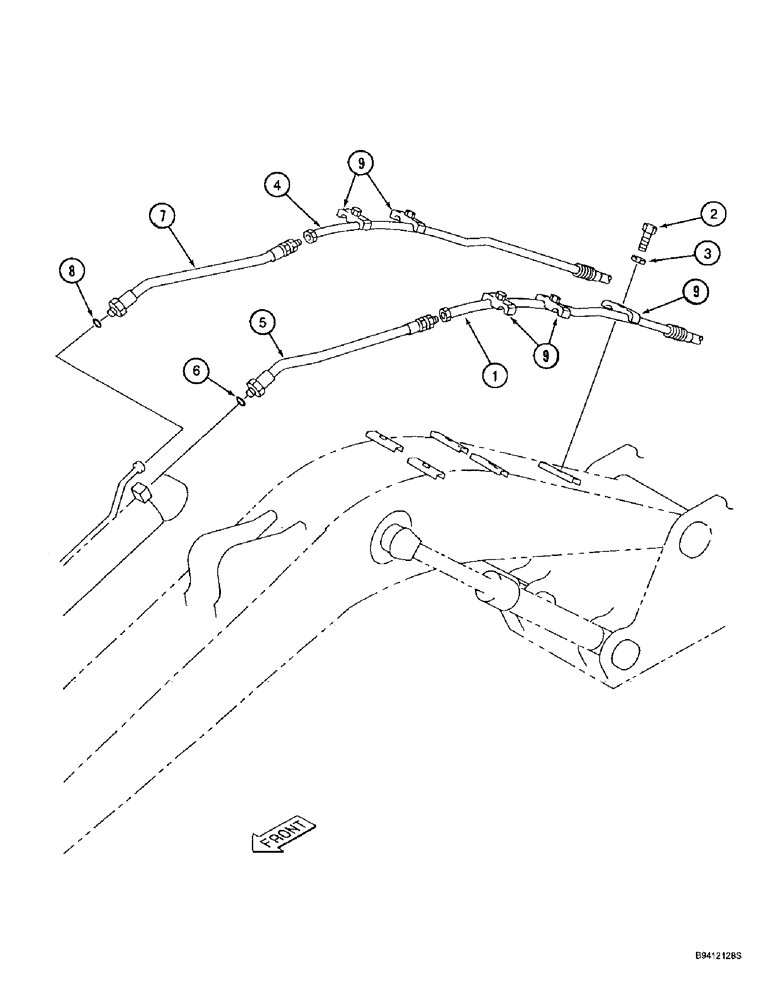

Запчасти Case 9010B (8-066) - ARM CYLINDER LINES (08) - HYDRAULICS

1

160751A1

TUBE ASSY.

TUBE - arm-in line

1шт.

2

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

5шт.

4

160750A1

TUBE ASSY.

TUBE - arm-out line

1шт.

5

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Arm-in line, Includes Ref. 6 19.00 mm ID x 1000.00 mm

1шт.

6

154503A1

O-RING

- cylinder seal

1шт.

7

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Arm-out line, Includes Ref. 8 19.00 mm ID x 1000.00 mm

1шт.

8

154503A1

O-RING

- cylinder seal

1шт.

9

159742A1

COLLAR

CLAMP - tube

5шт.
