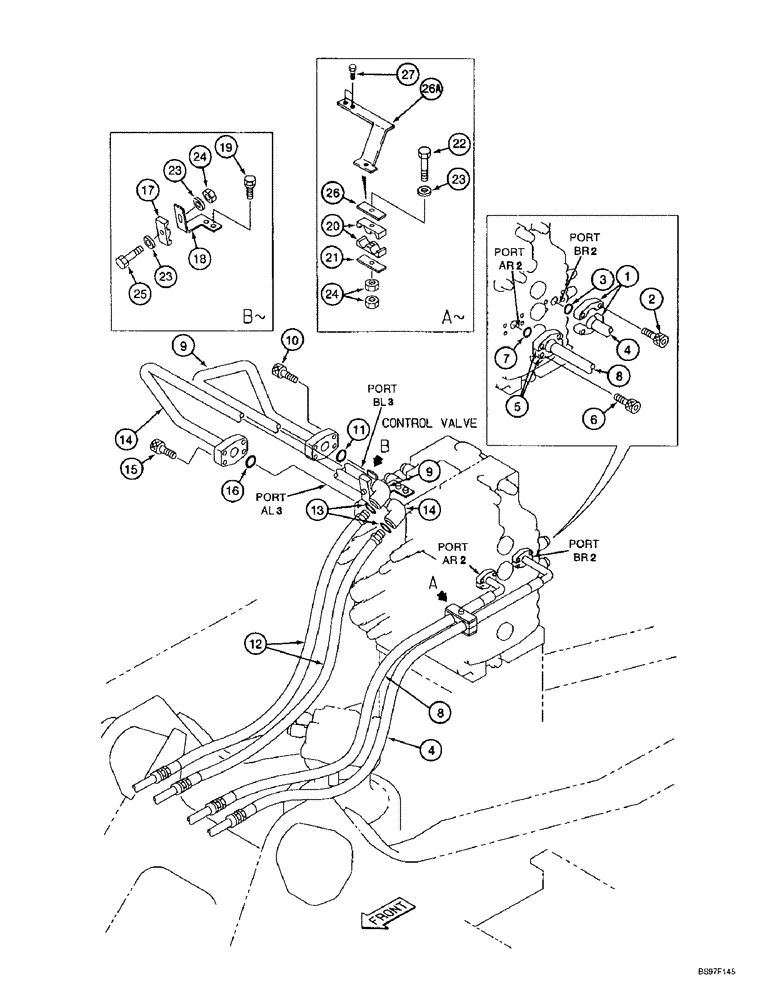

Запчасти Case 9010B (8-064) - ARM AND BUCKET SUPPLY LINES (08) - HYDRAULICS

1

161080A1

FLANGE

- split

2шт.

2

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

3

161096A1

O-RING

- hose seal

1шт.

4

161165A1

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

Bucket-open supply line (Connects to control valve port BR2) 12.70 mm ID x 1050.00 mm

1шт.

5

161080A1

FLANGE

- split

2шт.

6

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

7

161096A1

O-RING

- hose seal

1шт.

8

161178A1

HYDRAULIC HOSE,15.90 mm ID x 950.00 mm

Bucket-close supply line (Connects to control valve port AR2) 15.90 mm ID x 950.00 mm

1шт.

9

161169A1

TUBE ASSY.

TUBE - arm-out supply line, connects to control valve port BL3

1шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

11

154528A1

O-RING

- tube seal

1шт.

12

161170A1

HYDRAULIC HOSE,15.90 mm ID x 1030.00 mm

Arm supply lines (Connects to control valve ports AL3 and BL3), Includes Ref. 13 15.90 mm ID x 1030.00 mm

2шт.

13

154503A1

O-RING

- hose seal

1шт.

14

161164A1

TUBE ASSY.

TUBE - arm-in supply line, connects to control valve port AL3

1шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

16

154528A1

O-RING

- hose seal

1шт.

17

152085A1

COLLAR

CLAMP - tube

1шт.

18

161171A1

BRACKET

- tube clamp mounting

1шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

20

161179A1

HOSE CLAMP

CLAMP - hose

2шт.

21

161160A1

PLATE, SPACER

PLATE - clamp retaining

1шт.

22

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 85 mm, class 10.9

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

3шт.

24

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

3шт.

25

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

26

161160A1

PLATE, SPACER

PLATE - clamp retaining, if used

1шт.

26a

163862A1

BRACKET

- mounting, if used

1шт.

27

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, used with Ref. 26A, 163862A1 bracket

2шт.
