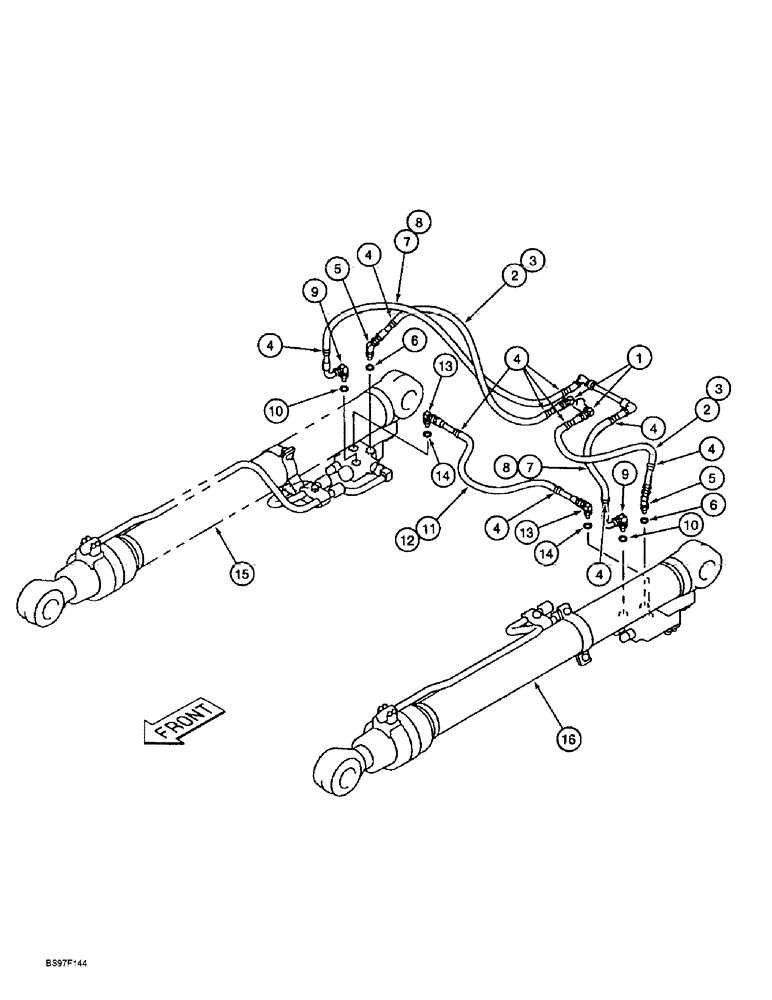

Запчасти Case 9010B (8-062) - BOOM CYLINDER LINES, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

153495A1

ADAPTER

ELBOW - 90 degree

2шт.

2

163710A1

HYDRAULIC HOSE,9.50 mm ID x 800.00 mm

- Boom Release Single Line (From T at Arm and Boom Manifold Bracket to Port P of Hydraulic Cylinder Lock Valve Port See Figure 8-30, Ref. 45 for Connections 9.50 mm ID x 800.00 mm

2шт.

3

150770A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 400 mm (15-3/4 inch) long, signal line

2шт.

4

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

5

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

7

163709A1

HYDRAULIC HOSE,9.50 mm ID x 780.00 mm

- Boom Release Single Return Line (From Hydraulic Cylinder Lock Valve Port T to Arm and Boom Return Line), see Figure 8-14, Ref. 25 and 30 for Connections 9.50 mm ID x 780.00 mm

2шт.

8

150476A1

PLASTIC-RUBBER TUBE,19.3 mm ID, 23.8 mm OD, 400 mm Length

SLEEVE - corrugated, return line

2шт.

9

153559A1

ELBOW

- 90 degree, Includes: Ref. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

163445A1

HYDRAULIC HOSE,6.30 mm ID x 550.00 mm

- Crossover line between boom cylinders 6.30 mm ID x 550.00 mm

1шт.

12

150770A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 400 mm (15-3/4 inch) long, crossover line

1шт.

13

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, right-hand, see Figure 8-126 for correct cylinder and components, models without load hold

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, left-hand, see Figure 8-126 for correct cylinder and components, models with load hold

1шт.
