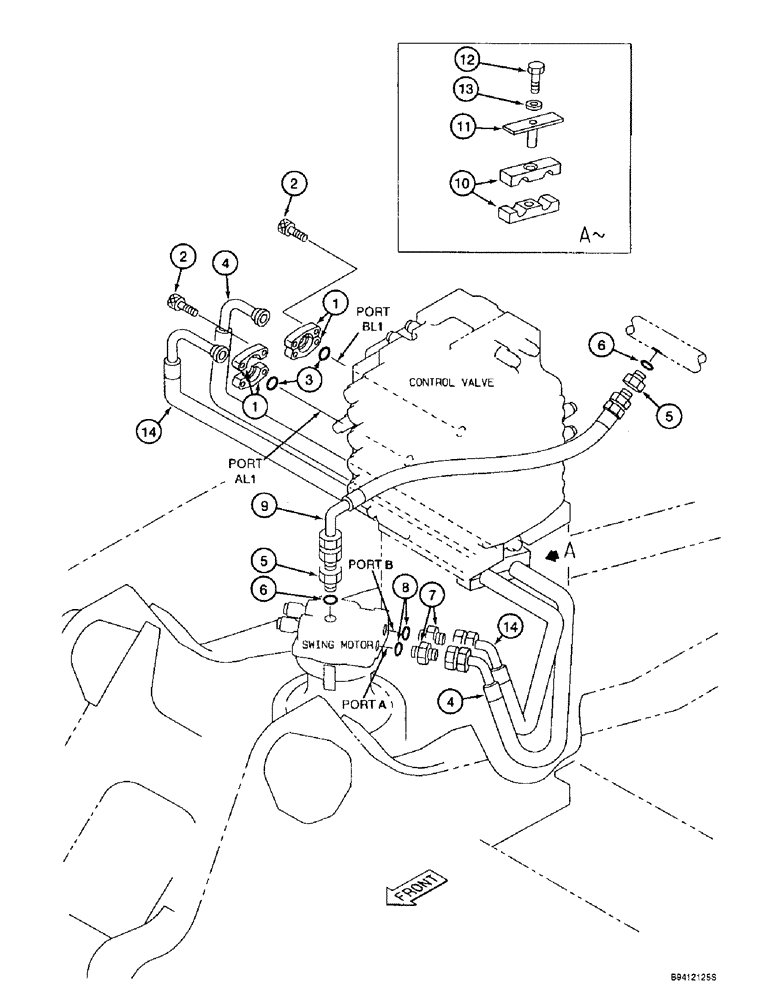

Запчасти Case 9010B (8-058) - SWING MOTOR CIRCUIT (08) - HYDRAULICS

1

161080A1

FLANGE

- split

4шт.

2

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

8шт.

3

161096A1

O-RING

- split flange

2шт.

4

164229A1

HYDRAULIC HOSE,12.70 mm ID x 950.00 mm

- Swing right power line (Control valve port BL1 to swing motor port A), Replaces 161201A1 hose 12.70 mm ID x 950.00 mm

1шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 6

2шт.

6

154503A1

O-RING

- adapter

1шт.

7

161079A1

REDUCER

- special, Includes: Ref. 8

2шт.

8

154503A1

O-RING

- reducer

1шт.

9

164534A1

HYDRAULIC HOSE,19.00 mm ID x 360.00 mm

Return Line From Swing Motor, Replaces 161211A1 hose 19.00 mm ID x 360.00 mm

1шт.

10

161187A1

COLLAR

CLAMP - hose

2шт.

11

161186A1

CLAMP

RETAINER - clamp

1шт.

12

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

13

150811A1

WASHER

- flat, special, 12 mm

1шт.

14

161198A1

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

Swing left power line (Control valve port AL1 to swing motor port B) 12.70 mm ID x 850.00 mm

1шт.
