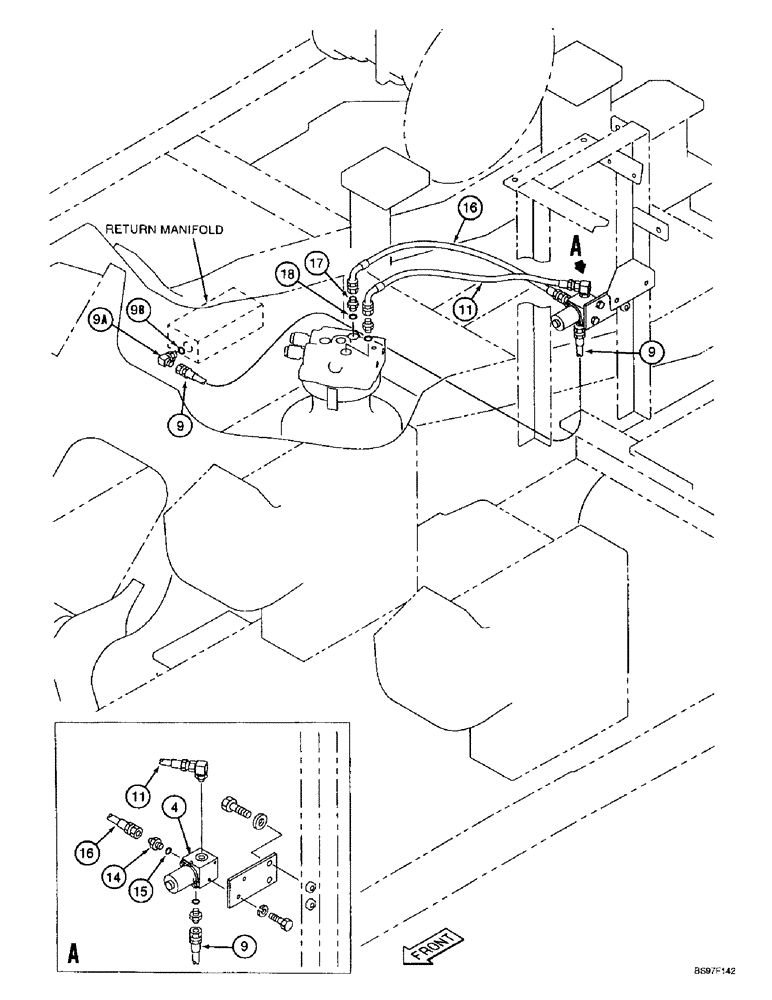

Запчасти Case 9010B (8-056) - FREE SWING CIRCUIT (08) - HYDRAULICS

9

159208A1

HYDRAULIC HOSE,6.30 mm ID

- 1450 mm (57 inch) long (From solenoid valve port "T" to tee in main control valve port "dr1")

1шт.

9a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 9B

1шт.

9b

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

160717A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long (from solenoid valve port "B" to swing motor)

1шт.

14

159848A1

ORIFICE

ADAPTER - special, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, (common)

1шт.

16

160717A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, metering line (from solenoid valve port "A" to swing motor)

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, (common)

1шт.
