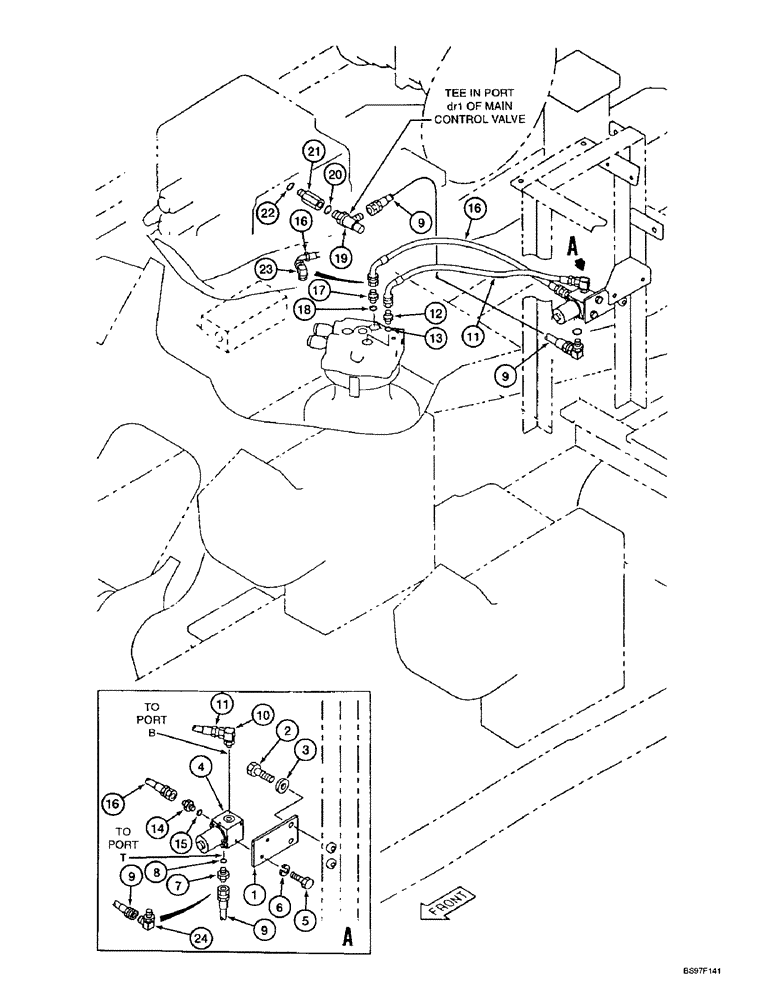

Запчасти Case 9010B (8-054) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

160716A1

BRACKET

- valve mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

159205A1

VALVE

ASSEMBLY - solenoid, free swing, parts list on Figure 8-120

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, if used, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

9

158100A1

HOSE

- 950 mm (37-3/8 inch) long (from solenoid valve port "T" to tee in main control valve port "dr1"), replaces 159208A1 hose

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

10

158784A1

ELBOW

- 90 degree, special

1шт.

11

163266A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

(From solenoid valve port "B" to swing motor) 6.30 mm ID x 500.00 mm

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, with orifice, Includes: Ref. 15

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- hydraulic orifice

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

16

163266A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

- Metering line (From solenoid valve port "A" to swing motor) 6.30 mm ID x 500.00 mm

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

17

159848A1

ORIFICE

ADAPTER - special, Includes: Ref. 18

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration using these parts and other parts are shown on Figure 8-56. Part numbers on Figure 8-56 are keyed to this Figure for comparison purposes.

1шт.

19

159497A1

TEE

- special, Includes: Ref. 20, Start Serial: DAC01#1004

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, Start Serial: DAC01#1004

1шт.

21

162525A1

STUD

ADAPTER - straight, special, Includes: Ref. 22, Start Serial: DAC01#1004

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, Start Serial: DAC01#1004

1шт.

23

163814A1

ELBOW

- 90 degree, special, if used, Start Serial: DAC01#1004

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, if used, Start Serial: DAC01#1004

1шт.
