Запчасти Case 9010B (8-052) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS

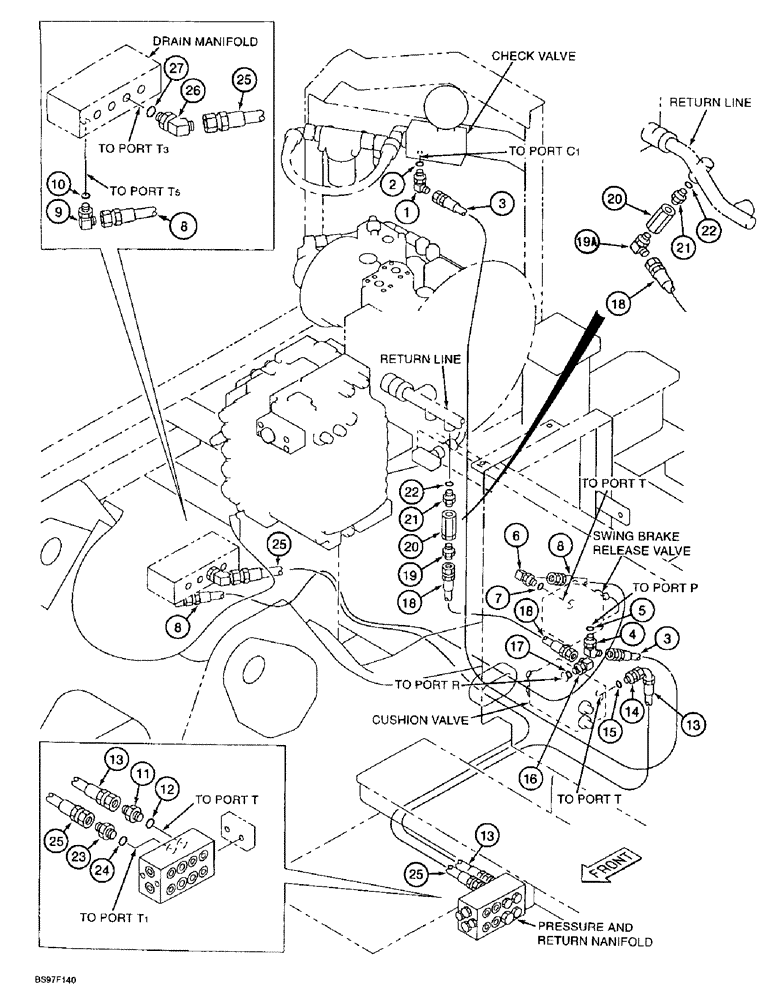

Схема запчастей Case 9010B - (8-052) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS
7
20
25
17
13
18
16
25
9
13
15
14
10
27
19
18
4
25
1
21
20
8
23
11
19a
24
13
21
8
5
18
3
6
22
8
22
26
25
2
3
12

Артикул

Название

Примечание

Количество

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

157851A1

HOSE

- 2850 mm (112-3/16 inch) long (check valve port C1 to swing brake release valve port P)

1шт.

4

150933A1

ELBOW

- 45 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

153592A1

HOSE

- 1500 mm (59-1/16 inch) long ( swing brake release valve port T to drain manifold port T5)

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

153378A1

ADAPTER

- straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

159019A1

HOSE ASSY.

HOSE - 900 mm (35-7/8 inch) long (pressure and return manifold port T to cushion valve port T)

1шт.

14

153378A1

ADAPTER

- straight, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter

1шт.

16

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- elbow

1шт.

18

161272A1

HOSE

- 650 mm (25-9/16 inch) long (Cushion valve port R to return line)

1шт.

19

153603A1

ADAPTER

- straight, used on units, Serial Range: -DAC0101004

1шт.

19a

153596A1

ADAPTER

ELBOW - 90 degree, used on units, Start Serial: DAC0101004

1шт.

20

151552A1

FILTER

- hydraulic, in-line

1шт.

21

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 24

1шт.

24

154475A1

O-RING

- adapter

1шт.

25

157965A1

HOSE

- 1800 mm (70-7/8 inch) long (pressure and return manifold port T1 to drain manifold port T3)

1шт.

26

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 27

1шт.

27

154475A1

O-RING

- elbow

1шт.

Выбрано товаров: 28
