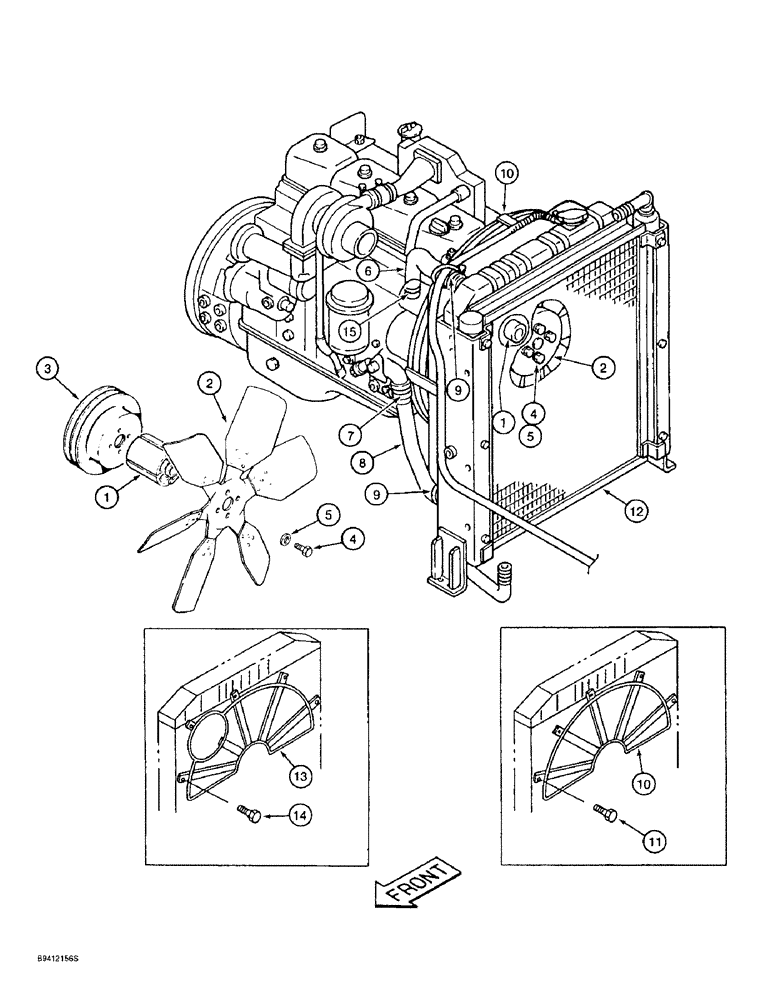

Запчасти Case 9010B (2-004) - RADIATOR, HOSES AND ENGINE FAN, PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE

1

A184545

SPACER

fan, with four mounting holes

1шт.

2

140977A1

FAN

- engine cooling

1шт.

3

A189284

PULLEY,151mm OD

- air conditioner compressor drive

1шт.

4

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

5

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

6

163738A1

RADIATOR HOSE,44.00 mm ID, 49.00 mm ID x 247.00 mm

Upper, Replaces 161149A1 44.00 mm ID, 49.00 mm ID x 247.00 mm

1шт.

7

152796A1

COLLAR

CLAMP - adjustable, wire type

1шт.

8

163737A1

RADIATOR HOSE,49.00 mm ID, 57.00 mm ID x 258.90 mm

Lower, Replaces 161148A1 49.00 mm ID, 57.00 mm ID x 258.90 mm

1шт.

9

157287A1

COLLAR

CLAMP - adjustable, radiator hose

2шт.

161073A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, parts list Figure 2-24, parts list Figure 2-8 for radiator mounting parts, Includes: Ref. 10 - 12

1шт.

10

161876A1

GUARD ASSY.

GUARD - fan, machines without air conditioning compressor

1шт.

11

162121A1

BOLT,Sems, Hex, M8 x 16mm, Spcl

BOLT - special, fan guard attaching

5шт.

12

150224A1

GRILLE

SCREEN - radiator, special

1шт.

13

163264A1

GUARD ASSY.

GUARD - fan, machines with air conditioning compressor

1шт.

14

162121A1

BOLT,Sems, Hex, M8 x 16mm, Spcl

BOLT - special

5шт.

15

150887A1

CLAMP

- adjustable, upper radiator hose

1шт.
