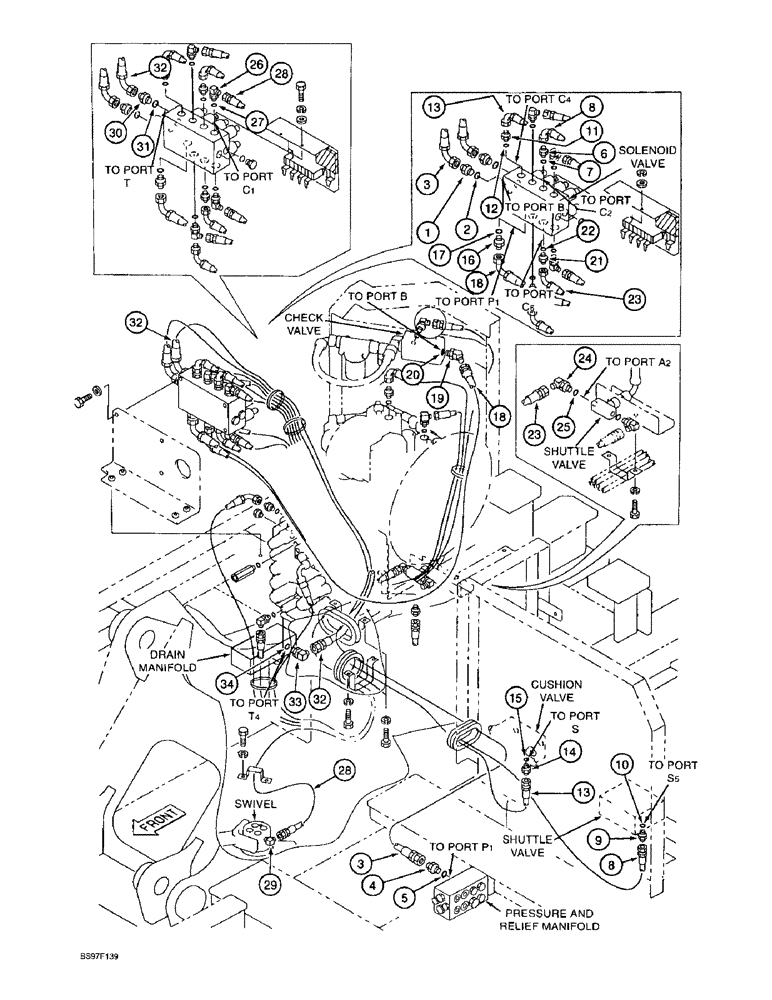

Запчасти Case 9010B (8-050) - SOLENOID VALVE PILOT LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

161487A1

HOSE ASSY.

HOSE - 2800 mm (110-1/4 inch) long (solenoid valve port B to pressure and relief manifold port P1)

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

161481A1

HOSE

- 2600 mm (102-3/8 inch) long (Solenoid valve port C2 to shuttle valve port S5)

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

161166A1

HOSE ASSY.

HOSE - 2150 mm (84-5/8 inch) long (solenoid valve port C4 to cushion valve port S)

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter

1шт.

18

159229A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long (solenoid valve port P1 to check valve port B)

1шт.

19

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 20

1шт.

20

154475A1

O-RING

- elbow, Includes: Ref. 22

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

161483A1

HOSE ASSY.

HOSE - 450 mm (17-11/16 inch) long (solenoid valve port C6 to shuttle valve port A2)

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

28

161484A1

HOSE,6.30 mm ID x 2150.00 mm

(Solenoid valve port C1 to hydraulic swivel) 6.30 mm ID x 2150.00 mm

1шт.

29

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

30

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- adapter

1шт.

32

159011A1

HOSE ASSY.

HOSE - 1250 mm (49-3/16 inch) long (solenoid valve port T to drain manifold port T4)

1шт.

33

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- elbow

1шт.
