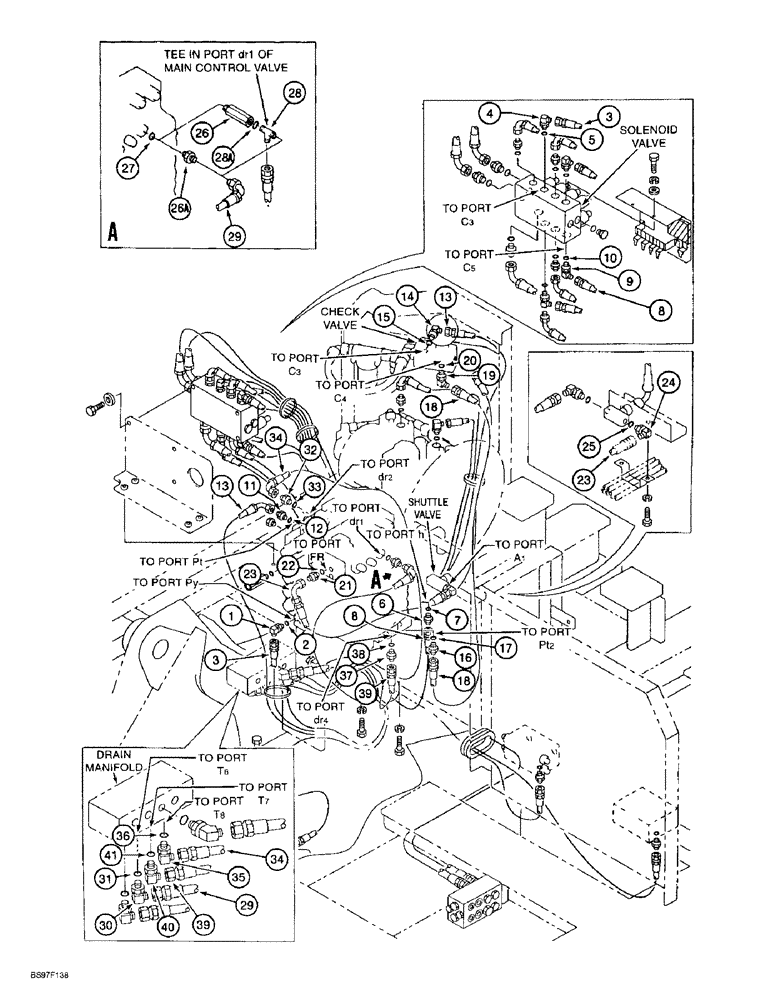

Запчасти Case 9010B (8-046) - CONTROL VALVE PILOT LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

151892A1

HOSE,6.3mm ID x 1950mm L

(Control valve port PY to solenoid valve port C3) 1950.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

151877A1

HOSE,63.00 mm ID x 1200.00 mm

(Control valve port h to solenoid valve port C5) 63.00 mm ID x 1200.00 mm

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

161086A1

HYDRAULIC HOSE

- 2800 mm (110-1/4 inch) long (Control valve port Pt to check valve port C3)

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152709A1

HOSE,6.4mm ID x 2100mm L

- Control valve port Pt2 to check valve port C4) 64.00 mm ID x 2100.00 mm

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

161485A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long (control valve port FR to shuttle valve port A1)

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

162525A1

STUD

ADAPTER - straight, special, used on units, Start Serial: DAC0101004

1шт.

26a

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, used on units, Includes: Ref. 27, Serial Range: -DAC0101004

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

2шт.

28

159497A1

TEE

- special, used on units, Includes: Ref. 28A, Start Serial: DAC0101004

1шт.

28a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, used on units, Start Serial: DAC0101004

2шт.

29

161271A1

HOSE ASSY.

HOSE - 1650 mm (64-15/16 inch) long (control valve port dr1 to drain manifold port T6)

1шт.

30

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

34

159393A1

HYDRAULIC HOSE

- 1400 mm (55-1/8 inch) long (Control valve port dr2 to drain manifold port T8)

1шт.

35

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

39

151872A1

HOSE ASSY.

HOSE - 850 mm (33-1/2 inch) long (control valve port dr4 to drain manifold port T7)

1шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
