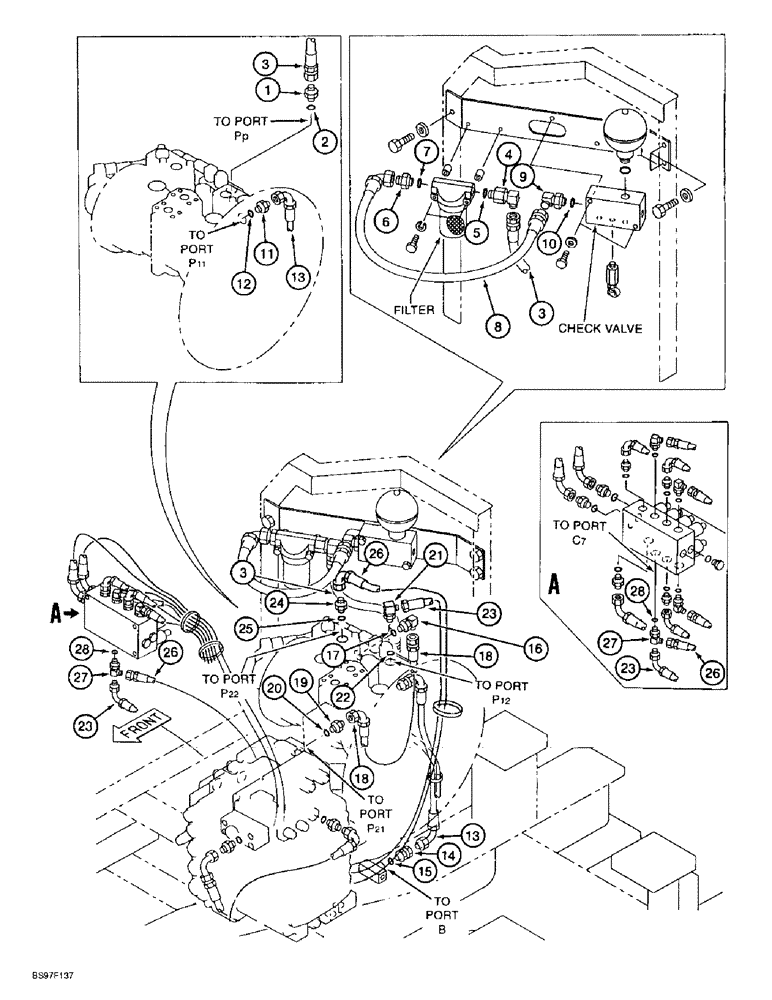

Запчасти Case 9010B (8-044) - HYDRAULIC PUMP AND FILTER PILOT LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

161067A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

(Hydraulic pump port Pp to line filter) 9.50 mm ID x 400.00 mm

1шт.

4

157935A1

ELBOW

- 90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 5

1шт.

5

154487A1

O-RING

- elbow

1шт.

6

161084A1

ADAPTER

- straight, special, Includes: Ref. 7

1шт.

7

154487A1

O-RING

- adapter

1шт.

8

161068A1

HYDRAULIC HOSE

- 500 mm (19-11/16 inch) long (Line filter to check valve port A)

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- elbow

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

161176A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long (hydraulic pump port P11 to shuttle valve port b)

1шт.

14

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

161486A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long (hydraulic pump port P21 to control valve port Fl)

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

161482A1

HOSE ASSY.

HOSE - 1500 mm (59-1/16 inch) long, hydraulic pump port P12 to tee in solenoid valve port C7)

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

26

161271A1

HOSE ASSY.

HOSE - 1650 mm (64-15/16 inch) long, hydraulic pump port P22 to tee in solenoid valve port C7)

1шт.

27

159497A1

TEE

- special, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

- special tee (in solenoid valve port C7)

1шт.
