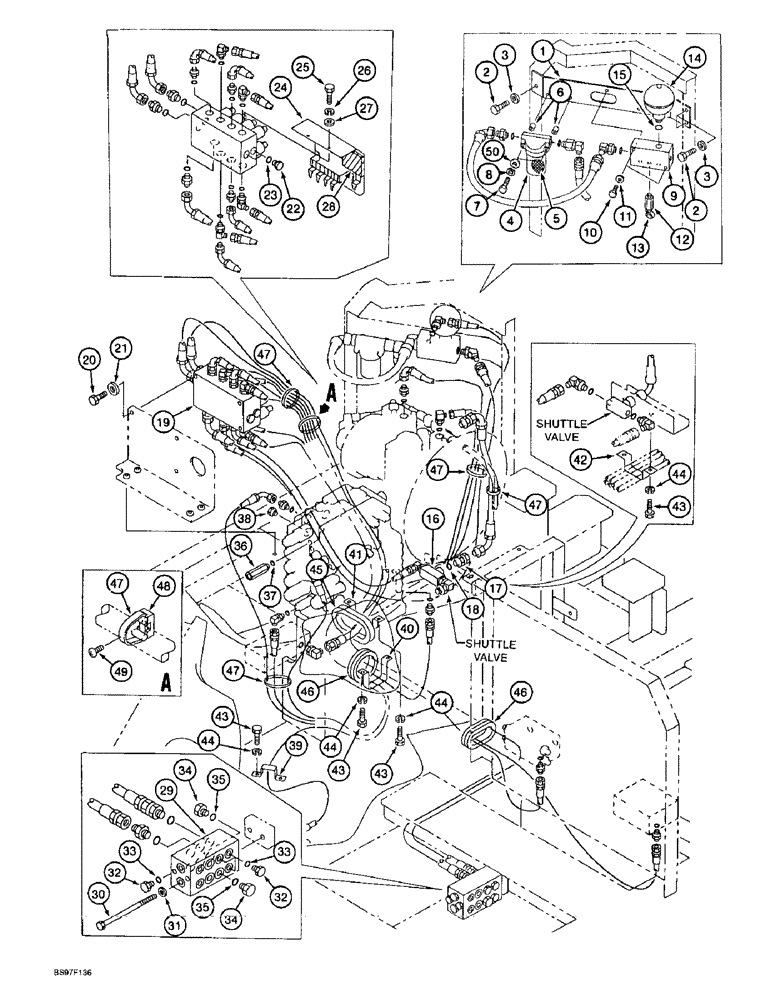

Запчасти Case 9010B (8-042) - PILOT COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

1

161172A1

BRACKET

- mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

3шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

4

159482A1

FILTER

- hydraulic, Includes: Ref. 5

1шт.

5

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

6

150325A1

SPACER

- tube, 8 ID x 13.8 OD x 10.35 mm long

2шт.

7

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

- hex, 6 - 1.0 x 80 mm, class 10.9, Replaces 161088A1 bolt

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

9

159483A1

VALVE

- check

1шт.

10

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

- hex, 8 - 1.25 x 70 mm, class 10.9

2шт.

11

153081A1

WASHER

- flat, special

2шт.

12

161210A1

BUSHING

ADAPTER - special

1шт.

13

150290A1

PLUG

- oil

1шт.

14

150894A1

ACCUMULATOR

- hydraulic, Includes: Ref. 15

1шт.

15

154487A1

O-RING

- accumulator

1шт.

16

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

17

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

161310A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-102

1шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

3шт.

21

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

22

153105A1

PLUG

- port

2шт.

23

154475A1

O-RING

- plug

2шт.

24

161551A1

COVER

- solenoid valve

1шт.

25

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.

28

161499A1

GROMMET

CUSHION - solenoid valve cover

1шт.

29

159015A1

MANIFOLD

- pressure and return

1шт.

30

159386A1

BOLT

BOLT - special

2шт.

31

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

32

159002A1

PLUG

- port, Includes: Ref. 33

5шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

34

153105A1

PLUG

- port, Includes: Ref. 35

2шт.

35

154475A1

O-RING

- plug

2шт.

36

161177A1

SOCKET

ADAPTER - special, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- socket

1шт.

38

152191A1

BUSHING

REDUCER - special

1шт.

39

159031A1

CLAMP

- support

1шт.

40

161095A1

CLAMP

- support

1шт.

41

159038A1

CLAMP

- support

1шт.

42

159032A1

CLAMP

- support

1шт.

43

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

8шт.

44

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

45

159251A1

GROMMET

- rubber

1шт.

46

161104A1

RUBBER BLOCK

GROMMET - rubber

2шт.

47

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

48

150860A1

COLLAR

BRACKET - support

1шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

50

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.
