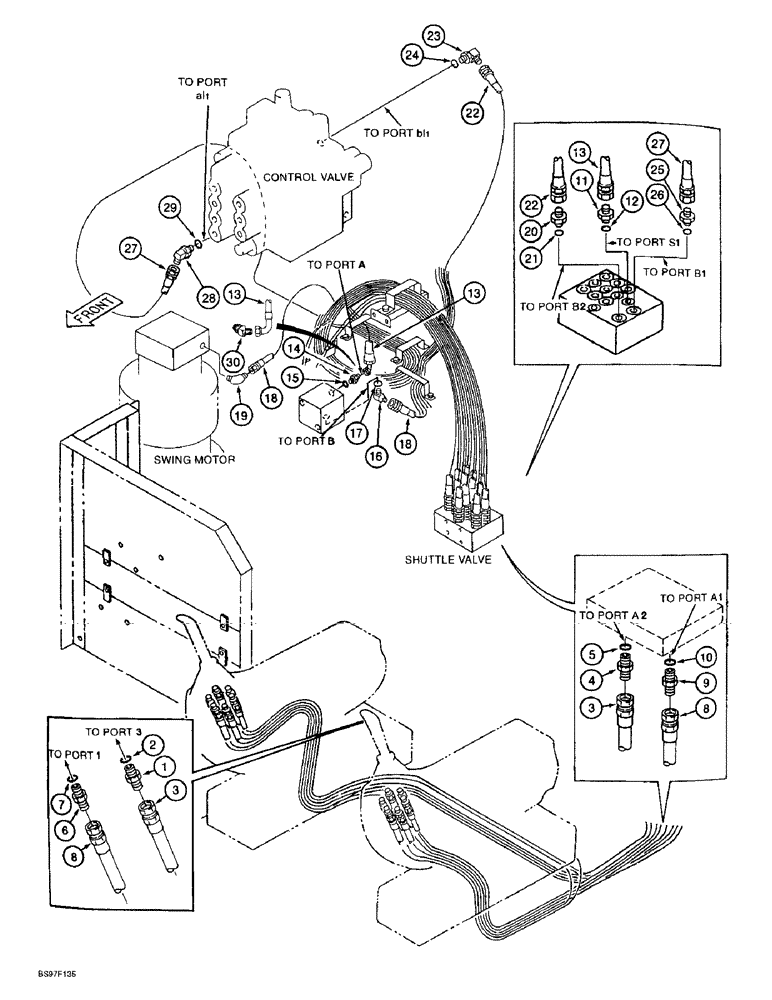

Запчасти Case 9010B (8-038) - SWING CONTROL LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing left line (LH controller port 3 to shuttle valve port A2) 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing right line (LH controller port 1 to shuttle valve port A1) 9.50 mm ID x 1750.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159018A1

HOSE ASSY.

HOSE - 800 mm (31-1/2 inch) long, swing control line (shuttle valve port S1 to swing brake release valve port A)

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150933A1

ELBOW

- 45 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

164727A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

Swing Control Line ( Swing Brake Release to Valve Por B to Swing Motor) Replaces 159019A1 6.30 mm ID x 900.00 mm

1шт.

19

153596A1

ADAPTER

ELBOW - 90 degree, replaces 153599A1 elbow

1шт.

20

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 21

1шт.

21

154475A1

O-RING

- adapter

1шт.

22

159076A1

HYDRAULIC HOSE

HOSE - 3000 mm (80-11/16 inch) long, swing left line (shuttle valve port B2 to control valve port bl1)

1шт.

23

153559A1

ELBOW

- 90 degree, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

25

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 26

1шт.

26

154475A1

O-RING

- adapter

1шт.

27

152767A1

HOSE ASSY.

HOSE - 2500 mm (98-7/15 inch) long, swing right line (shuttle valve port B1 to control valve port al1)

1шт.

28

153559A1

ELBOW

- 90 degree, Includes: Ref. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

30

163814A1

ELBOW

- 90 degree, special, used with Ref. 13, 159018A1 hose and Ref. 14, 152127A1 adapter, units, Start Serial: DAC01#2001

1шт.
