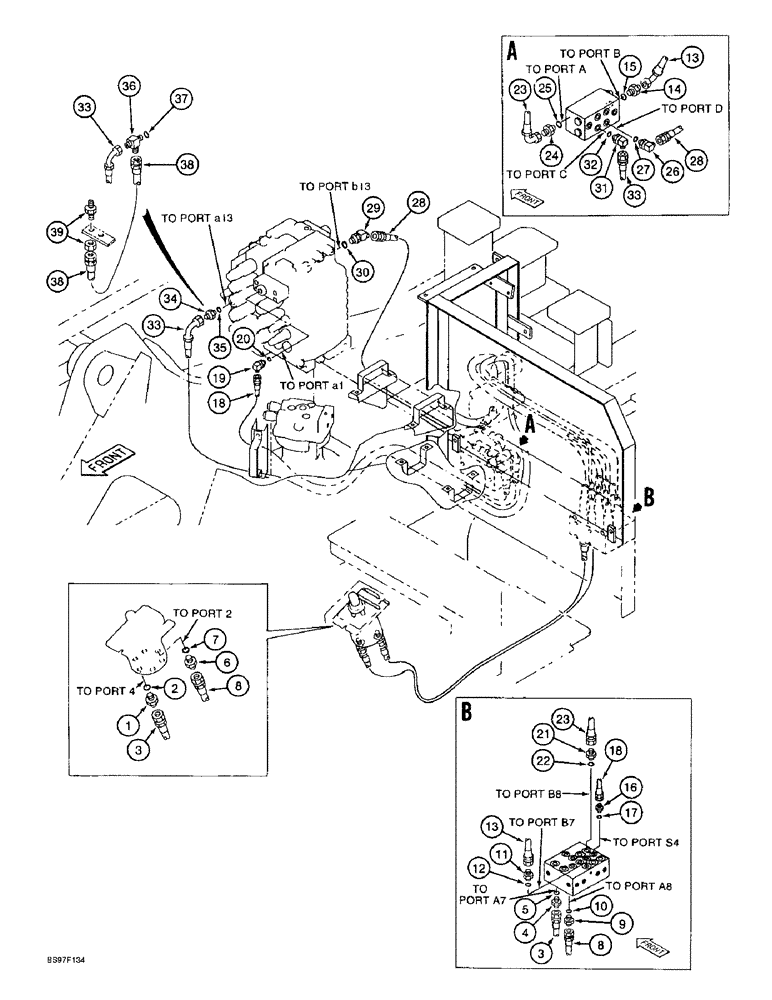

Запчасти Case 9010B (8-034) - ARM CONTROL LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159217A1

HYDRAULIC HOSE

HOSE - 1850 mm (72-13/16 inch) long, arm out line (left-hand controller port 4 to shuttle valve port A7)

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Arm in line (LH controller port 2 to shuttle valve port A8) 9.50 mm ID x 1750.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, arm out line (shuttle valve port B7 to cushion valve port B)

1шт.

14

153120A1

HYD CONNECTOR

ADAPTER - straight, replaces 152128A1 adapter, Includes: Ref. 15

1шт.

15

154486A1

O-RING

- adapter, replaces 154475A1 O-ring

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152778A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, arm in line (shuttle valve port S4 to control valve port a1)

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154475A1

O-RING

- adapter

1шт.

23

159224A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, arm in line (shuttle valve port B8 to cushion valve port A)

1шт.

24

153120A1

HYD CONNECTOR

ADAPTER - straight, replaces 152128A1 adapter, Includes: Ref. 24

1шт.

25

154486A1

O-RING

- adapter, replaces 154475A1 O-ring

1шт.

26

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 26

1шт.

27

154475A1

O-RING

- elbow

1шт.

28

152756A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, arm out line, (cushion valve port D to control valve port bl3)

1шт.

29

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

31

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 32

1шт.

32

154475A1

O-RING

- elbow

1шт.

33

159229A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, arm in line (cushion valve port C to control valve port al3)

1шт.

34

152747A1

ADAPTER

- straight, models without load hold, Includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, models without load hold

1шт.

36

162827A1

TEE

- special, models with load hold, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, models with load hold

1шт.

38

159011A1

HOSE ASSY.

HOSE - 1250 mm (49-3/16 inch) long, models with load hold

1шт.

39

162826A1

ADAPTER

- straight, special, models with load hold, see Figure 8-68, Ref. 2 for connections

1шт.
