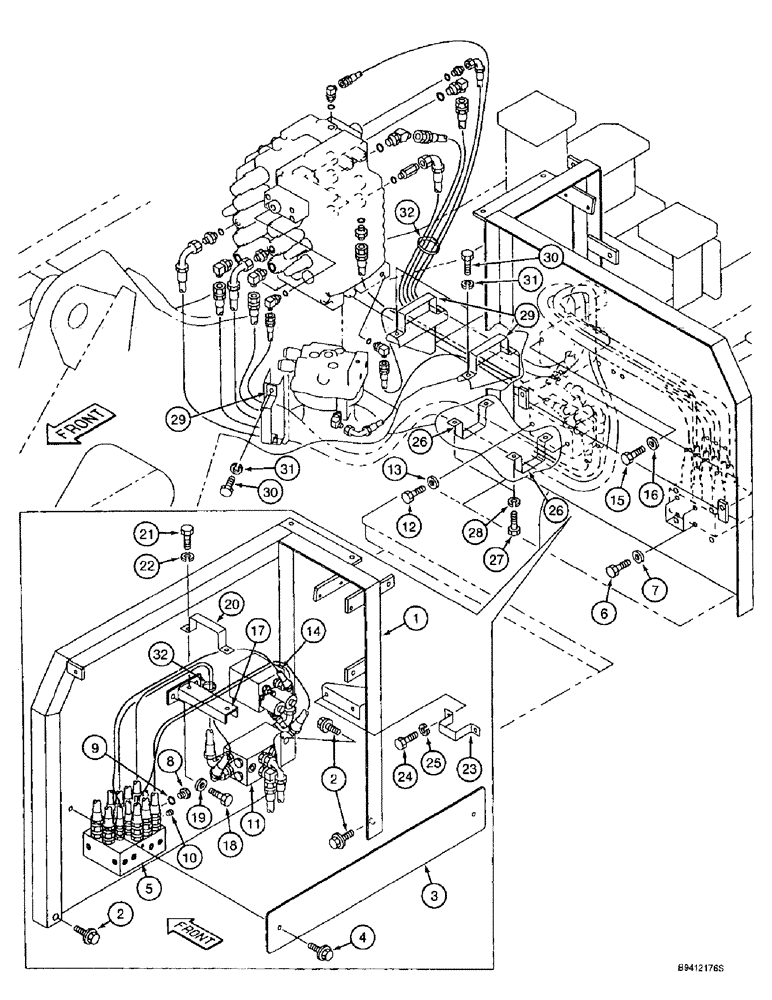

Запчасти Case 9010B (8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

1

164749A1

BRACKET

- component mounting, Serial Range: -DAC01#2001

1шт.

1

165732A1

BRACKET

- component mounting, Start Serial: DAC01#2001

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

3шт.

3

161208A1

COVER

- access

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

5

159221A1

VALVE

- shuttle

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

7

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

8

159002A1

PLUG

- port, Includes: Ref. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

10

151026A1

PLUG

- port

1шт.

11

161005A1

VALVE

ASSEMBLY - cushion, parts list see Figure 8-122, models without load hold

1шт.

11

163703A1

VALVE

ASSEMBLY - cushion, parts list see Figure 8-122, models with load hold

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

13

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

14

161003A1

VALVE

ASSEMBLY - swing brake release, Parts list see Figure 8-124

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

16

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

17

159248A1

BRACKET

- support, used only with models, Serial Range: -DAC01#2001

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

20

159038A1

CLAMP

- support

1шт.

Models P.I.N. DAC01#2001 and after, turn clamp in vertical position and attach to bracket 165732A1, Ref. 1.

1шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

23

159032A1

CLAMP

- support

1шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

159033A1

CLAMP

- support

2шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

29

159038A1

CLAMP

- support

3шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

32

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.
