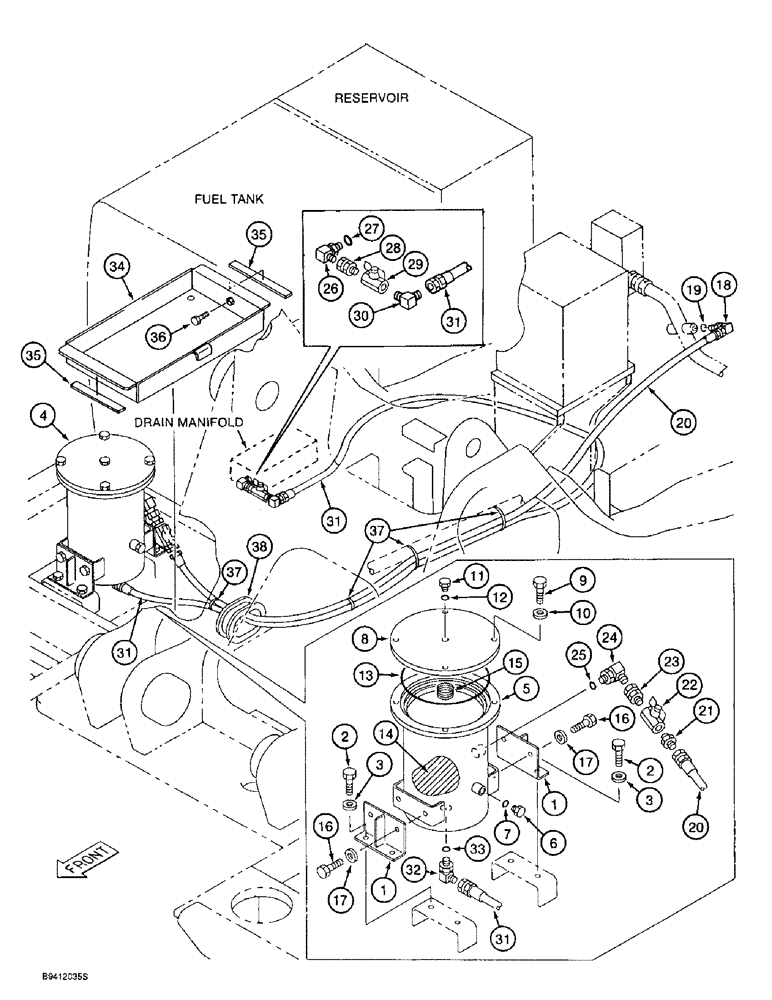

Запчасти Case 9010B (8-020) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

1

159286A1

BRACKET

- mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, Includes: Ref. 5 - 15

1шт.

5

159281A1

BODY

HOUSING - bypass filter

1шт.

6

159002A1

PLUG

- port, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

8

159283A1

COVER

- bypass filter

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

159285A1

PLUG

- port, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

13

154859A1

O-RING

- bypass filter

1шт.

14

159282A1

HYDRAULIC OIL FILTER

ELEMENT - filter, bypass

1шт.

15

159837A1

SPRING

- compression

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

17

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

150966A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, filter inlet line

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

21

153603A1

ADAPTER

- straight

1шт.

22

158923A1

DRAIN VALVE

VALVE - line shut-off

1шт.

23

153601A1

ADAPTER

- straight

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree (common), Includes: Ref. 27

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (common)

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

28

153601A1

ADAPTER

- straight (common)

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

29

158923A1

DRAIN VALVE

VALVE - line shut-off (common)

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

30

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

31

157850A1

HOSE,6.4 mm ID x 2350.00 mm

- 2350 mm (92-1/2 inch) long, filter discharge line, replaces 152264A1 hose

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

32

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree (common), Includes: Ref. 33

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (common)

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

34

162539A1

COVER

- special

1шт.

35

162540A1

CUSHION

- rubber

2шт.

36

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

37

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

38

164686A1

GROMMET

- rubber

2шт.

This part is used on units P.I.N. DAC01#1004 and after. An earlier configuration is shown on Figure 8-22. Part numbers on Figure 8-22 are keyed to this page for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.
