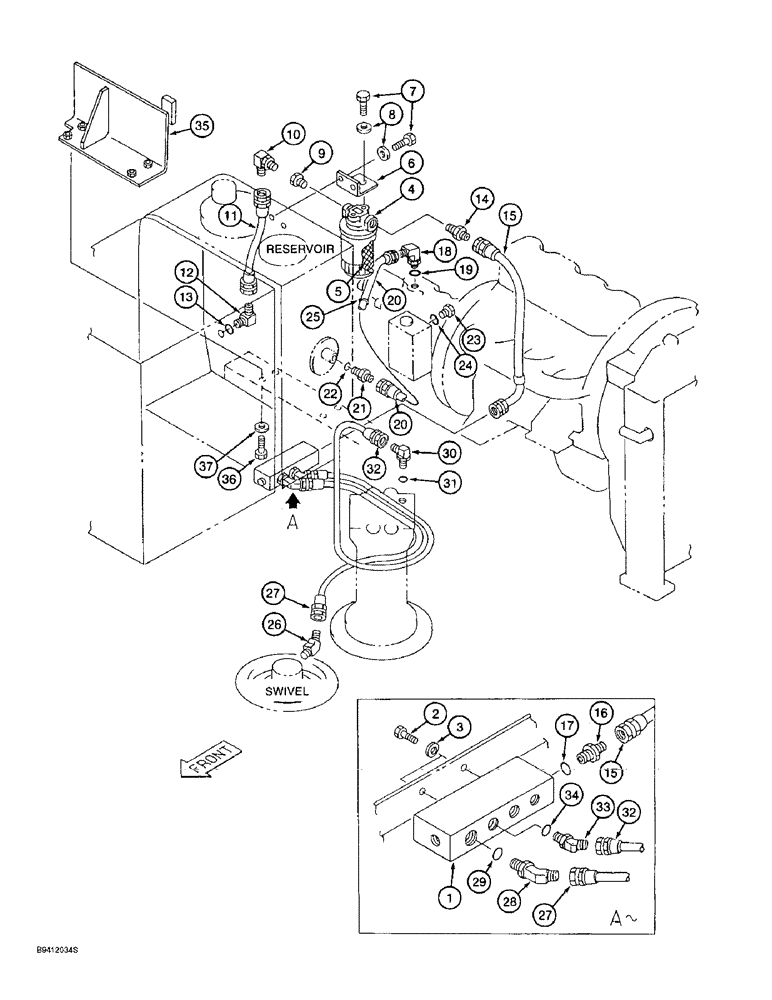

Запчасти Case 9010B (8-010) - FILTER AND RESERVOIR RETURN LINES, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

161270A1

MANIFOLD

- hydraulic

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

150792A1

FILTER ASSY

FILTER ASSEMBLY - oil, Includes: Ref. 5

1шт.

P/N 150792A1 filter assy should now only be used on 90A series excavators. The 90B series excavators should use the following: 9010B prior to DAC0102561, 9020B prior to DAC0202849, 9030B prior to DAC0302954, 9040B prior to DAC0402339 and 9045B prior to DAC0452182 must order one piece each of 169041A1 filter assembly, 169174A1 elbow and 169040A1 adapter. The elbow and adapter must replace the old fittings at the filter inlet and outlet. Machines at and after the serial number breaks are already equipped wi

1шт.

5

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

6

153456A1

BRACKET

- mounting

1шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

8

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

9

151077A1

BUSHING

REDUCER - special, at filter, replaces 157758A1 reducer

1шт.

10

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

11

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

(Filter to reservoir) 19.00 mm ID x 400.00 mm

1шт.

12

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 13

1шт.

13

154503A1

O-RING

- elbow

1шт.

14

159088A1

ADAPTER

- straight

1шт.

15

161188A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

(Filter to manifold) 19.00 mm ID x 800.00 mm

1шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- elbow

1шт.

18

157585A1

ELBOW

- special (common), Includes: Ref. 19

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

19

154487A1

O-RING

- elbow (common)

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

20

163129A1

HYDRAULIC HOSE,12.70 mm ID x 650.00 mm

(Pump to reservoir), Includes Ref. 21 12.70 mm ID x 650.00 mm

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

21

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

22

154503A1

O-RING

- adapter

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

23

159085A1

PLUG

- manifold, Includes: Ref. 24

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

24

154503A1

O-RING

- plug (common)

1шт.

This part used on units P.I.N. DAC01#1004 and after. Models prior to P.I.N. DAC01#1004 are shown on Figure 8-12. Part numbers on Figure 8-12 are keyed to this Figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

25

161100A1

MOUNTING CLIP

STRAP - tie

1шт.

26

150915A1

ADAPTER

ELBOW - 45 degree

1шт.

27

163146A1

HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm

(Swivel to manifold) 12.70 mm ID x 1350.00 mm

1шт.

28

157585A1

ELBOW

- special, Includes: Ref. 29

1шт.

29

154487A1

O-RING

- elbow

1шт.

30

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- elbow

1шт.

32

152761A1

HOSE ASSY.

HOSE - 1450 mm (57-1/16 inch) long (swing, Serial Range: motor-manifold)

1шт.

33

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- adapter

1шт.

35

162195A1

BRACKET

- mounting

1шт.

36

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

37

150811A1

WASHER

- flat, special, 12 mm

4шт.
