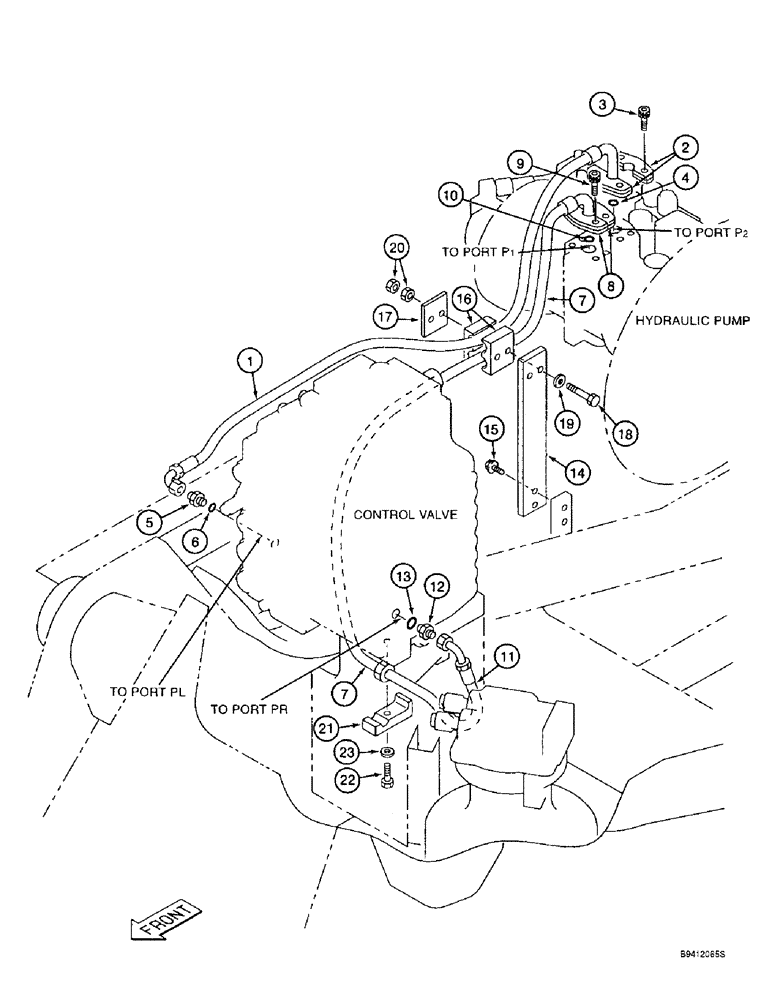

Запчасти Case 9010B (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

161197A1

HYDRAULIC HOSE,15.90 mm ID x 750.00 mm

RH supply line (Pump port P2 to control valve port PL) 15.90 mm ID x 750.00 mm

1шт.

2

153458A1

FLANGE

- split

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

4

155210A1

O-RING

- seal, replaces 161097A1 O-ring

1шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 6

1шт.

6

154503A1

O-RING

- adapter

1шт.

7

161180A1

HYDRAULIC HOSE,19.00 mm ID x 780.00 mm

LH supply line (Pump port P1 to control valve port PR) 19.00 mm ID x 780.00 mm

1шт.

8

153458A1

FLANGE

- split

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

10

155210A1

O-RING

- seal, replaces 161097A1 O-ring

1шт.

11

161199A1

TUBE ASSY.,27.2 mm OD, 346, 145 mm Length

TUBE - left-hand supply line

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

13

154503A1

O-RING

- adapter

1шт.

14

161217A1

LARGE PLATE

BRACKET - mounting

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

16

161163A1

COLLAR

CLAMP - hose

2шт.

17

152876A1

PLATE, SPACER

PLATE - flat

1шт.

18

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

21

161200A1

COLLAR

CLAMP - tube

1шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9, Replaces 827-12055 bolt

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
