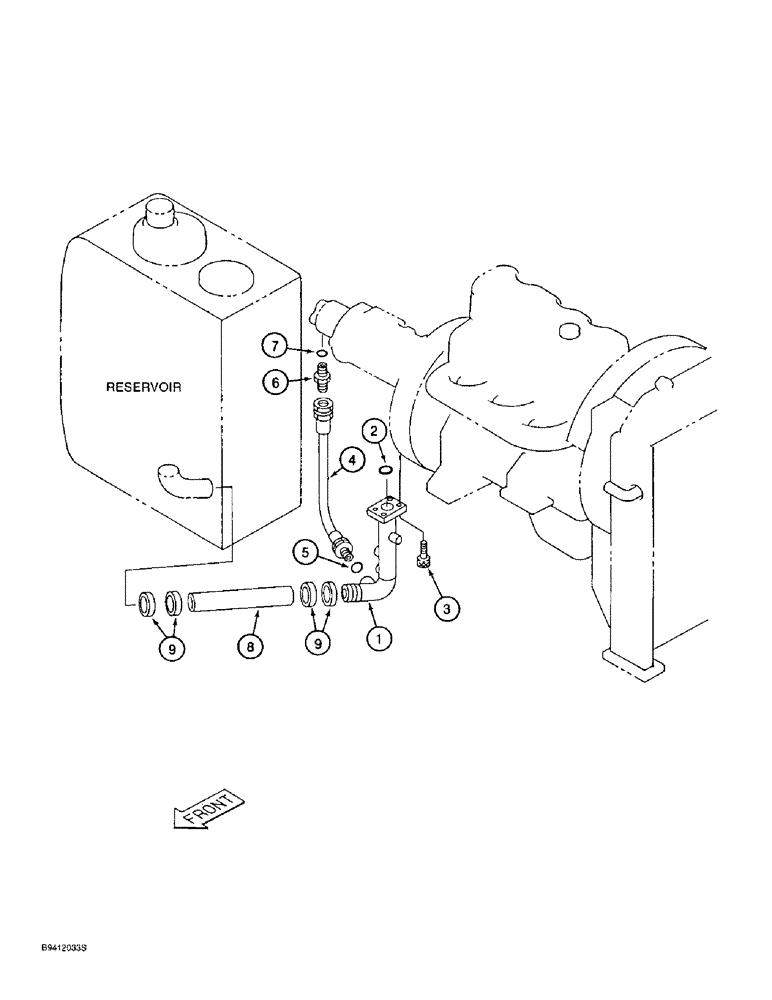

Запчасти Case 9010B (8-006) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

160714A1

TUBE ASSY.,60.5 mm OD, 304, 203 mm Length

TUBE - reservoir-to-pump line, pump end

1шт.

2

154679A1

O-RING

- tube

1шт.

3

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

4

160715A1

HYDRAULIC HOSE

HOSE - 470 mm (18-1/2 inch) long, recirculating, Includes: Ref. 5

1шт.

5

154503A1

O-RING

- hose

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154503A1

O-RING

- adapter

1шт.

8

160669A1

HYDRAULIC HOSE

- 350 mm (13-3/4 inch) long, Reservoir-to-pump line,Reservoir end

1шт.

9

152796A1

COLLAR

CLAMP - adjustable

4шт.
