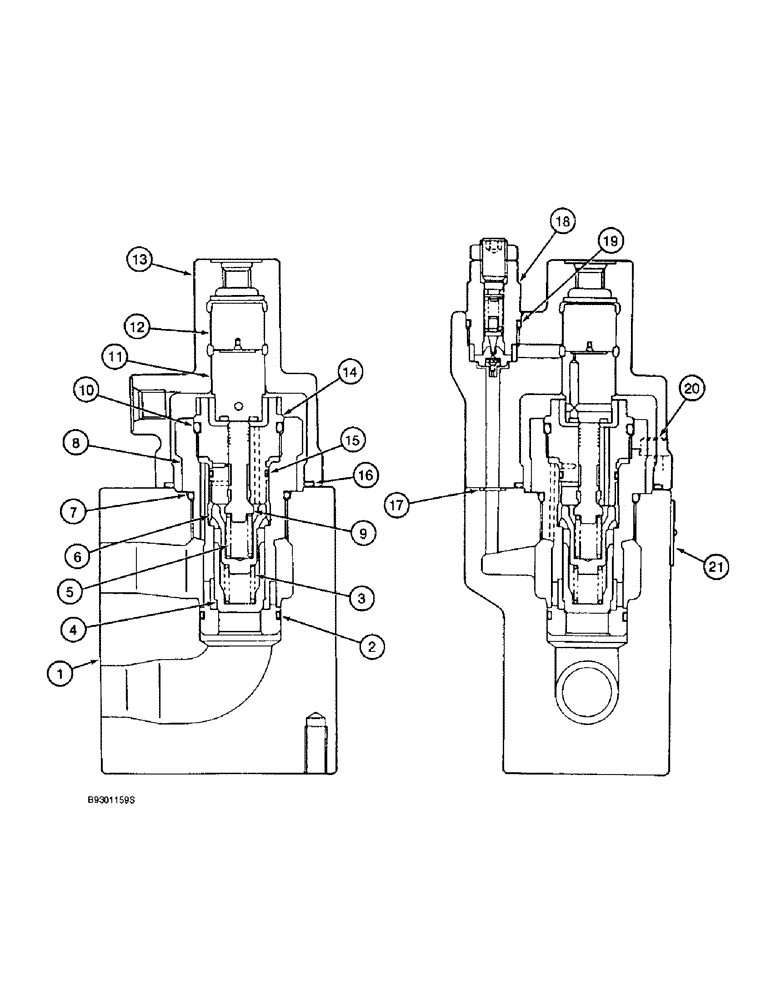

Запчасти Case 9010 (8-70) - 153249A1 ANTI-DRIFT VALVE ASSEMBLY (08) - HYDRAULICS

153249A1

VALVE

ASSEMBLY anti-drift, Includes: Ref. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING boom hold valve

1шт.

2

154539A1

O-RING

cartridge body, inner

1шт.

3

156118A1

SPRING

compression inner

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER cartridge

1шт.

5

156119A1

SPRING

compression spool, outer

1шт.

6

156207A1

SPRING

SEAT spring

1шт.

7

154579A1

O-RING

cartridge to housing, outer

1шт.

8

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL cartridge body, outer

1шт.

10

154555A1

O-RING

spool guide to cartridge body, outer

1шт.

11

156901A1

PISTON

valve at spool, long

1шт.

12

156902A1

PISTON

valve short

1шт.

13

156899A1

COVER

valve

1шт.

14

156900A1

BUSHING

GUIDE spool

1шт.

15

156903A1

O-RING

spool guide to cartridge body, inner

1шт.

16

154657A1

O-RING

cartridge cover to valve housing

1шт.

17

154455A1

O-RING

cover to housing, relief valve passage

1шт.

18

156897A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, Includes: Ref. 19

1шт.

19

154499A1

O-RING

relief, Serial Range: valve-cover

1шт.

20

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

21

NSS

NOT SOLD SEPARAT

PLATE identification

1шт.
