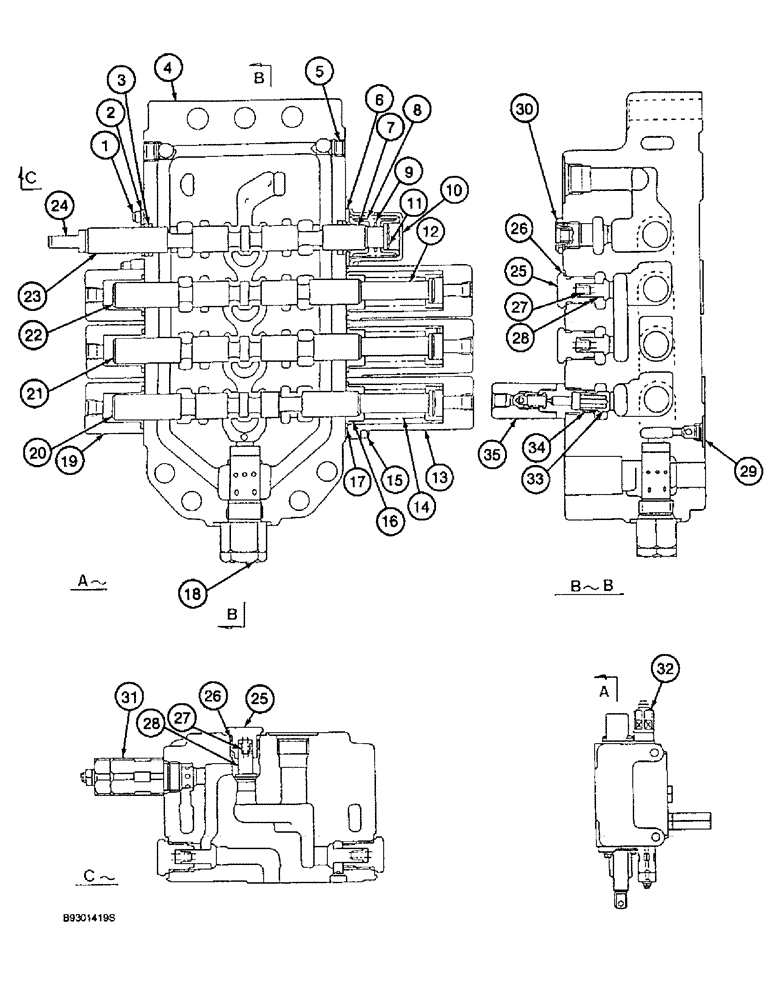

Запчасти Case 9010 (8-66) - 153082A1 CONTROL VALVE ASSY, R.H. SECTION,ARM 2, BUCKET, BOOM 1, & RIGHT TRAVEL SPOOLS (08) - HYDRAULICS

153082A1

VALVE

ASSEMBLY contro, Includes: P/N 155755A1 and Ref. 1-35 parts list Figures 8-60 - 8-67A

1шт.

155755A1

VALVE

SUBASSEMBLY right-hand, Includes: Ref.1-35, parts list Figures 8-66 and 8-67BA

1шт.

1

156168A1

BOLT (MACHINE),Hex Skt

BOLT hex socket special

4шт.

2

153915A1

WIPER

spool

2шт.

3

155294A1

SEAL

spool

2шт.

4

NSS

NOT SOLD SEPARAT

HOUSING spool

1шт.

5

155465A1

PLUG

hex socket

2шт.

6

155557A1

PLATE

seal

2шт.

7

156022A1

SPRING SEAT

SEAT spring

2шт.

8

156024A1

SPRING

compression

1шт.

9

155558A1

SPACER

spring seat

1шт.

10

156253A1

CAP

end

1шт.

11

156166A1

SCREW

special travel spool end

1шт.

12

156167A1

SCREW

BOLT hex socket, special spool end

3шт.

13

156254A1

CAP

end

3шт.

14

156025A1

SPRING

compression

3шт.

15

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

12шт.

16

156023A1

SPRING SEAT

SEAT spring

6шт.

17

155168A1

O-RING

, Serial Range: cap-housing

6шт.

18

155752A1

VALVE, PRESSURE RELI

VALVE relief pump destroke

1шт.

19

156255A1

CAP

end

3шт.

20

NSS

NOT SOLD SEPARAT

SPOOL arm

21шт.

21

NSS

NOT SOLD SEPARAT

SPOOL bucket

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL boom

11шт.

23

NSS

NOT SOLD SEPARAT

SPOOL travel right

1шт.

24

156256A1

HEAD

EYE linkage attachment

1шт.

155751A1

VALVE, CHECK

VALVE ASSEMBLY check load, Includes: Ref. 25-28

5шт.

25

NSS

NOT SOLD SEPARAT

PLUG check, poppet retaining

1шт.

26

153882A1

O-RING

poppet plug

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET control valve

1шт.

29

151026A1

PLUG

port

1шт.

30

155452A1

PLUG

special

1шт.

31

155743A1

VALVE, PRESSURE RELI

VALVE relief travel

1шт.

32

155745A1

VALVE PRESSURE RELIE

VALVE relief circuit, parts list Figure 8-67A

4шт.

33

155918A1

VALVE POPPET

PISTON valve

1шт.

34

156038A1

SPRING

compression

1шт.

35

155919A1

VALVE, CHECK

VALVE check dual flow combining

1шт.
