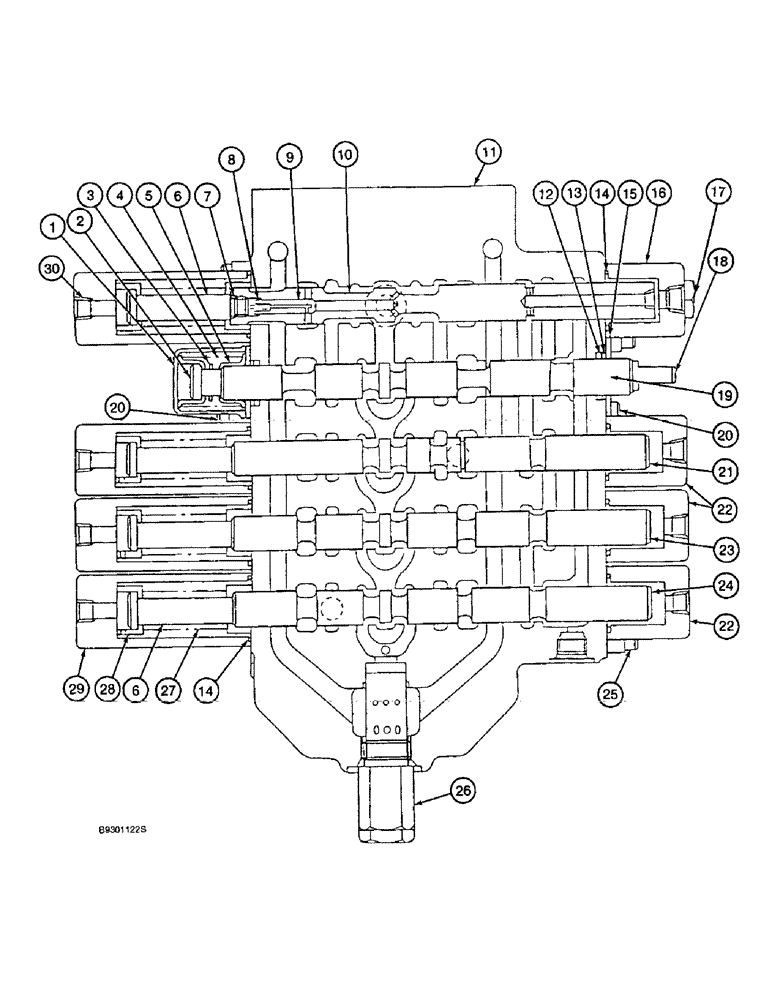

Запчасти Case 9010 (8-62) - 153082A1 CONTROL VALVE ASSY, L.H. SECTION,ARM 1,SWING,BOOM 2,LEFT TRAVEL & TRAVEL PRIORITY SPOOLS (08) - HYDRAULICS

153082A1

VALVE

ASSEMBLY control, Includes: P/N 155756A1 and Ref. 1-30, parts list Figures 8-60 - 8-67A

1шт.

155756A1

VALVE

SUBASSEMBLY left-hand, Includes: Ref. 1-30, parts list Figures 8-62, 8-64 and 8-67A

1шт.

1

156253A1

CAP

end

1шт.

2

156166A1

SCREW

special travel spool end

1шт.

3

155558A1

SPACER

spring seat

1шт.

4

156024A1

SPRING

compression

1шт.

5

156022A1

SPRING SEAT

SEAT spring

2шт.

6

156167A1

SCREW

BOLT hex socket, special spool end

4шт.

7

155171A1

O-RING

seal

1шт.

8

156026A1

SPRING

compression

1шт.

9

155908A1

VALVE POPPET

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL travel priority

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING valve section

1шт.

12

155294A1

SEAL

spool

2шт.

13

153915A1

WIPER

spool

2шт.

14

155168A1

O-RING

, Serial Range: cap-housing

8шт.

15

155557A1

PLATE

seal

2шт.

16

156257A1

CAP

end

1шт.

17

155447A1

PLUG

port

1шт.

18

156256A1

HEAD

EYE linkage attachment

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL travel left

1шт.

20

156168A1

BOLT (MACHINE),Hex Skt

BOLT hex socket special

4шт.

21

NSS

NOT SOLD SEPARAT

SPOOL boom

21шт.

22

156255A1

CAP

end

3шт.

23

NSS

NOT SOLD SEPARAT

SPOOL swing

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL arm

11шт.

25

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

16шт.

26

155752A1

VALVE, PRESSURE RELI

VALVE relief pump destroke

1шт.

27

156025A1

SPRING

compression

4шт.

28

156023A1

SPRING SEAT

SEAT spring

8шт.

29

156254A1

CAP

end

4шт.

30

151026A1

PLUG

port

1шт.
