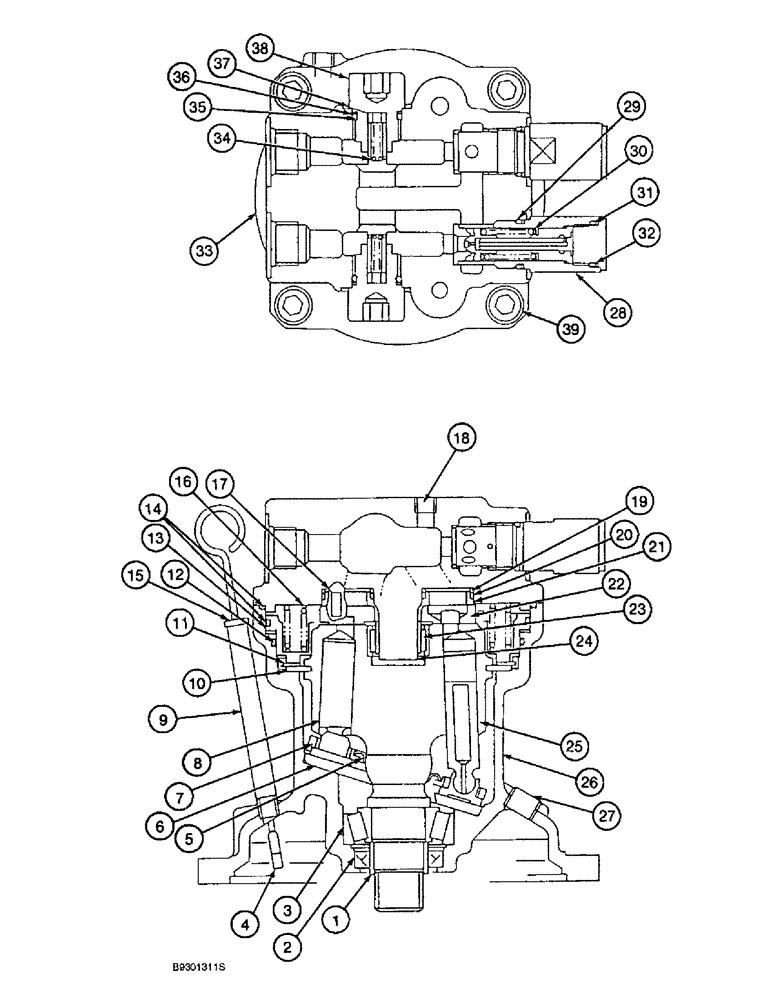

Запчасти Case 9010 (8-54) - 155775A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS

155775A1

MOTOR

ASSEMBLY swing, Includes: Ref. 1-39

1шт.

1

155605A1

RING

wear shaft end

1шт.

2

153923A1

OIL SEAL

SEAL oil

1шт.

3

156126A1

TAPERED BEARING

roller

1шт.

4

155477A1

GAUGE

DIPSTICK lube swing motor

1шт.

5

156100A1

SPRING

piston

1шт.

6

155607A1

PLATE

swash

1шт.

7

155660A1

PLATE

piston return

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON swing motor

9шт.

9

155487A1

TUBE

dipstick

1шт.

10

155608A1

PLATE

friction

1шт.

11

155609A1

PLATE

brake

1шт.

12

153909A1

O-RING

, Serial Range: piston-housing

1шт.

13

155953A1

PISTON

brake

1шт.

14

155197A1

O-RING

, Serial Range: piston-housing

2шт.

15

156895A1

O-RING

tube and dipstick

1шт.

16

156077A1

SPRING

compression

10шт.

17

837-6012

DOWEL,M6 x 12

PIN dowel, 6 x 12 mm, hardened

2шт.

18

151026A1

PLUG

port

3шт.

19

156078A1

SPRING

compression

4шт.

20

155300A1

RING

Teflon

4шт.

21

155378A1

BUSHING

plate

4шт.

22

155610A1

PLATE

balance

1шт.

23

156127A1

BEARING, NEEDLE

BEARING needle

1шт.

24

155602A1

RING, SNAP

RING snap

1шт.

25

NSS

NOT SOLD SEPARAT

CYLINDER swing motor

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING swing motor

1шт.

27

151033A1

PLUG

hex socket, special

1шт.

155809A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, Includes: Ref. 28-32

2шт.

28

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

29

154515A1

O-RING

large, valve, Serial Range: body-housing

1шт.

30

155990A1

SHIM KIT

KIT shim

1шт.

31

154503A1

O-RING

small, used with backup ring

1шт.

32

153982A1

BACK-UP RING

RING backup small O-ring

1шт.

33

NSS

NOT SOLD SEPARAT

COVER housing

1шт.

34

155944A1

PLUNGER

check valve

2шт.

35

154515A1

O-RING

plug

2шт.

36

153991A1

BACK-UP RING

RING backup

2шт.

37

156079A1

SPRING

compression

2шт.

38

156305A1

CAP

PLUG port

2шт.

39

153864A1

BOLT,Hex Skt

hex socket

4шт.
