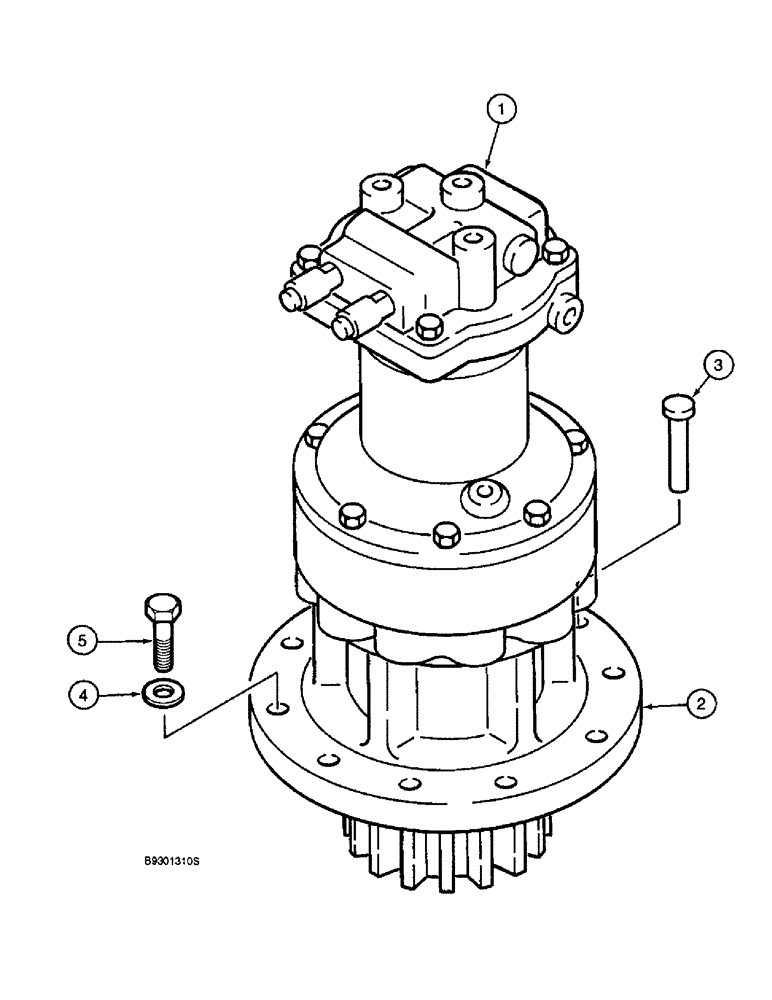

Запчасти Case 9010 (8-52) - SWING MOTOR AND MOUNTING (08) - HYDRAULICS

150157A1

MOTOR

DRIVE ASSEMBLY swing, Includes: Ref. 1 and 2

1шт.

1

155775A1

MOTOR

ASSEMBLY swing parts list Figure 8-54

1шт.

2

155776A1

MOTOR

GEAR ASSEMBLY reduction swing motor, parts list Figure 8-56

1шт.

3

150036A1

HEADED PIN,20mm OD x 60mm L

PIN alignment headed

1шт.

4

150991A1

WASHER

flat, special 16 mm

45шт.

5

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

45шт.
