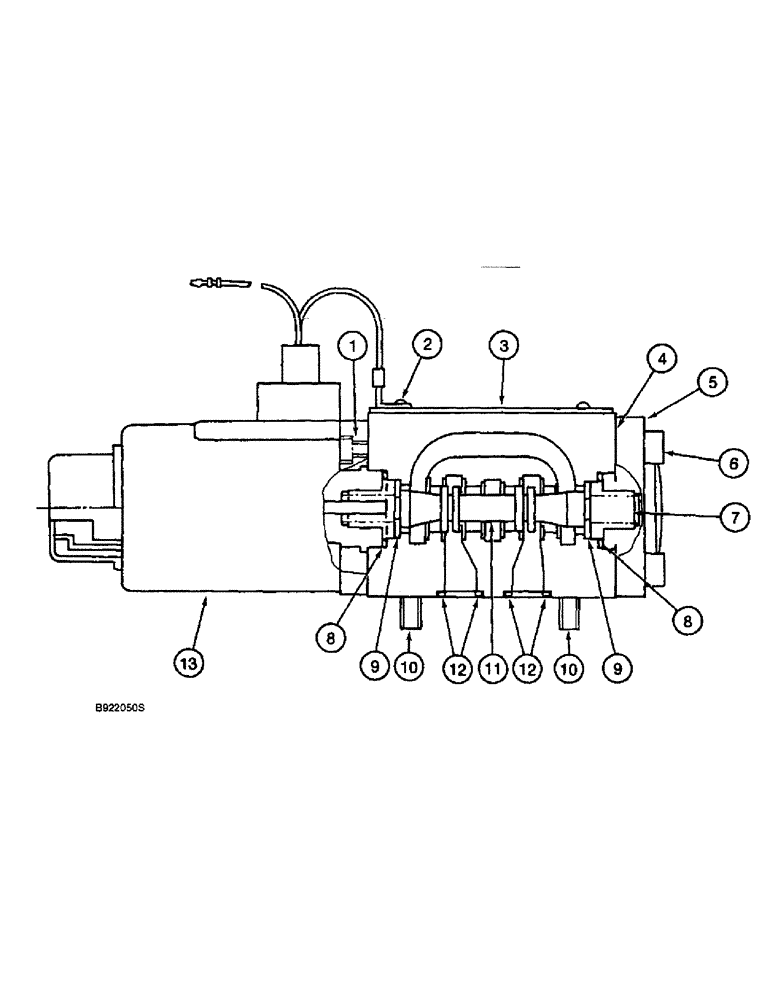

Запчасти Case 9010 (8-42) - 150425A1 SOLENOID VALVE (08) - HYDRAULICS

150425A1

VALVE

ASSEMBLY solenoid pilot control shutoff, Includes: Ref. 1-13

1шт.

1

156174A1

BOLT

BOLT hex socket solenoid to spool housing

4шт.

2

156176A1

SCREW

name plate mounting

2шт.

3

165374A1

SOLENOID

PLATE name

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING spool

1шт.

5

156279A1

COVER

valve

1шт.

6

156175A1

BOLT (MACHINE),Hex Skt

BOLT hex socket cover mounting

4шт.

7

156044A1

SPRING

valve

2шт.

8

155205A1

O-RING

spring retainer

2шт.

9

NSS

NOT SOLD SEPARAT

RETAINER spring

2шт.

10

150125A1

BOLT (MACHINE),Hex Skt

BOLT hex socket, special

4шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

12

155185A1

O-RING

port seal

4шт.

13

NSS

NOT SOLD SEPARAT

SOLENOID valve

1шт.
