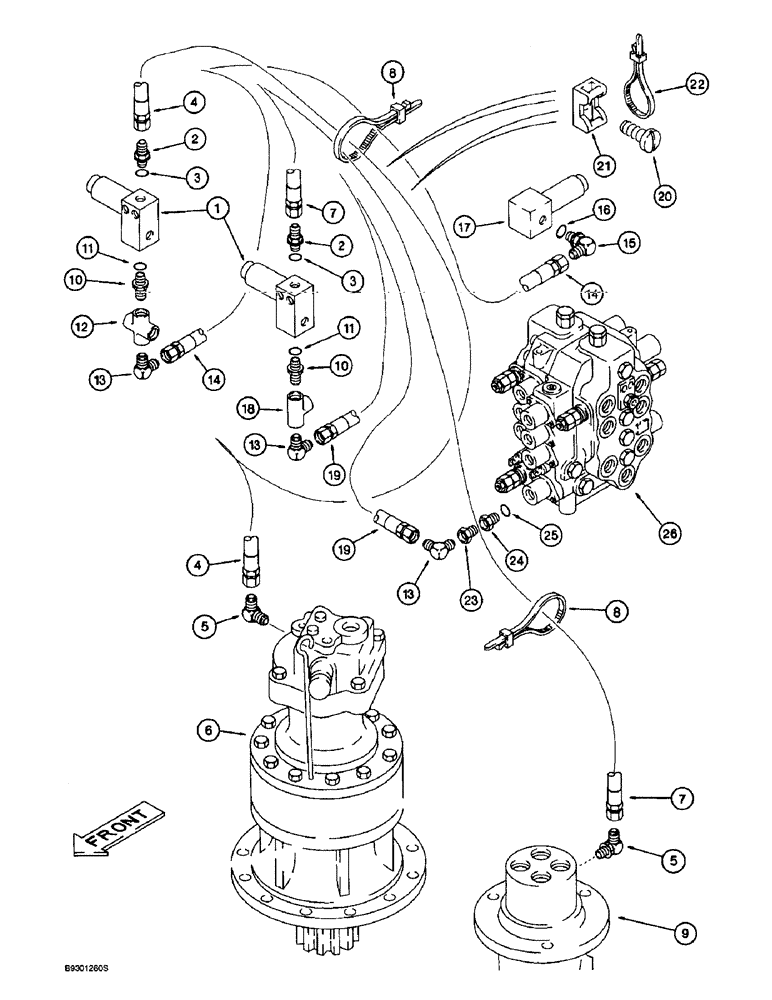

Запчасти Case 9010 (8-40) - HYDRAULIC CONTROL CIRCUIT, SOLENOID HYDRAULICS, TO SWIVEL, SWING MOTOR AND MANIFOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
150501A1
VALVE
ASSEMBLY solenoid swing brake and two speed travel, parts list Figure 8-46
2шт.
2
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER straight hydraulic, Includes: Ref. 3
2шт.
3
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, was 150960A1
1шт.
4
153592A1
HOSE
59-1/16 inch (1500 mm) long solenoid to swing motor
1шт.
5
153596A1
ADAPTER
ELBOW 90 degree hydraulic
2шт.
6
150157A1
MOTOR
DRIVE ASSEMBLY swing parts list Figure 8-52 - 8-56
1шт.
7
151892A1
HOSE,6.3mm ID x 1950mm L
- Travel control solenoid to swivel 1950.00 mm
1шт.
8
150071A1
MOUNTING CLIP
STRAP tie 365 mm long
1шт.
9
152945A1
HYDRAULIC SWIVEL
SWIVEL ASSEMBLY hydraulic parts list Figure 6-16
1шт.
10
152899A1
HYD CONNECTOR
CONNECTOR straight hydraulic, Includes: Ref. 11
2шт.
11
154467A1
O-RING,10.8mm ID x 2.4mm Width
connector, was 150960A1
1шт.
12
152303A1
4 WAY CONNECTION
CROSS special
1шт.
13
153596A1
ADAPTER
ELBOW 90 degree hydraulic
3шт.
14
152709A1
HOSE,6.4mm ID x 2100mm L
- Swing brake solenoid to cushion valve solenoid 64.00 mm ID x 2100.00 mm
1шт.
15
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree hydraulic, Includes: Ref. 16
1шт.
16
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, was 150960A1
1шт.
17
150844A1
VALVE
ASSEMBLY solenoid cushion, parts list Figure 8-44
1шт.
18
152135A1
TEE
hydraulic
1шт.
19
151895A1
HOSE,2450.00 mm
- Travel solenoid to control valve 2450.00 mm
1шт.
20
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
machine, pan Phillips 6 - 1.0 x 8 mm, clamp bracket mounting
2шт.
21
150860A1
COLLAR
BRACKET support
2шт.
22
150071A1
MOUNTING CLIP
STRAP tie 365 mm long
2шт.
23
152754A1
SOCKET
CONNECTOR straight
1шт.
24
152309A1
SOCKET
REDUCER special, Includes: Ref. 25
1шт.
25
154475A1
O-RING
reducer, was 150031A1
1шт.
26
153082A1
VALVE
ASSEMBLY control parts list Figures 8-60 - 8-66
1шт.
Выбрано товаров: 26
