Запчасти Case 9010 (8-38) - HYDRAULIC CONTROL CIRCUIT, CUSHION VALVE HYDRAULICS, TO MANIFOLD AND SOLENOID (08) - HYDRAULICS

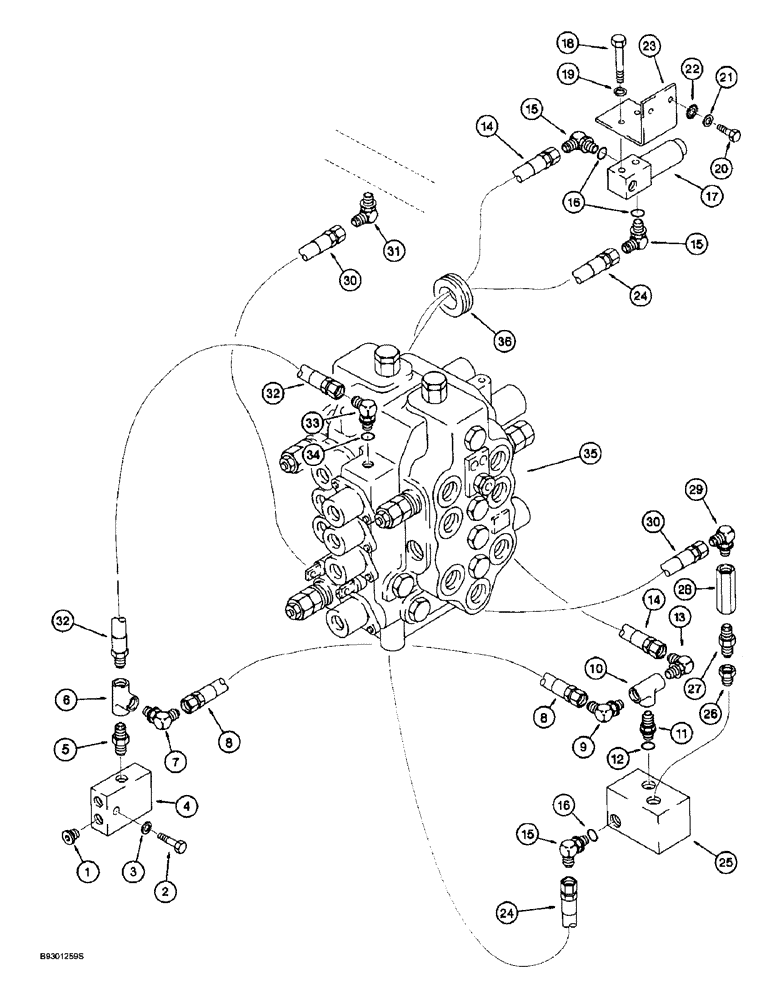

Схема запчастей Case 9010 - (8-38) - HYDRAULIC CONTROL CIRCUIT, CUSHION VALVE HYDRAULICS, TO MANIFOLD AND SOLENOID (08) - HYDRAULICS
30
16
16
29
8
5
24
4
13
28
36
2
6
14
18
25
14
21
30
7
31
11
34
9
19
26
3
8
22
27
15
15
32
23
10
15
17
35
33
24
12
20
1
32

Артикул

Название

Примечание

Количество

1

151030A1

PLUG

port

1шт.

2

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, 10 - 1.5 x 60 mm, class 10.9

2шт.

3

150732A1

WASHER

special 10 mm

2шт.

4

153049A1

MANIFOLD

pilot hydraulic

1шт.

5

150848A1

NIPPLE, LUBE

ADAPTER straight

1шт.

6

152137A1

TEE

at cushion line manifold

1шт.

7

153495A1

ADAPTER

ELBOW 90 degree

1шт.

8

152757A1

HOSE ASSY.

HOSE 47-1/4 inch (1200 mm) long manifold to cushion valve solenoid

1шт.

9

152749A1

ADAPTER

ELBOW 90 degree

1шт.

10

153425A1

TEE

hydraulic

1шт.

11

150163A1

NIPPLE, LUBE

ADAPTER straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

adapter, was 150031A1

1шт.

13

153596A1

ADAPTER

ELBOW 90 degree

1шт.

14

151877A1

HOSE,63.00 mm ID x 1200.00 mm

(Control valve port h to solenoid valve port C5), Cushion valve to solenoid 63.00 mm ID x 1200.00 mm

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 16

3шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, was 150960A1

1шт.

17

150844A1

VALVE

ASSEMBLY solenoid cushion, parts list Figure 8-44

1шт.

18

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 16 mm, class 10.9

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

150732A1

WASHER

special 10 mm

2шт.

22

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

23

158385A1

BRACKET

mounting was 153098A1

1шт.

24

153230A1

HOSE ASSY.

HOSE, 41-3/8 inch (1050 mm) long cushion, Serial Range: valve-solenoid

1шт.

25

153099A1

VALVE, CUSHION

VALVE ASSEMBLY cushion parts list Figure 8-88

1шт.

26

153494A1

ORIFICE

REDUCER special, with orifice

1шт.

27

152129A1

NIPPLE, LUBE

ADAPTER straight hydraulic

1шт.

28

151552A1

FILTER

- hydraulic, in-line

1шт.

29

152749A1

ADAPTER

ELBOW - 90 degree

1шт.

30

152753A1

HOSE,95.00 mm ID x 1100.00 mm

- Cushion valve to tank 95.00 mm ID x 1100.00 mm

1шт.

31

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

32

153365A1

HOSE

- 29-9/16 inch (750 mm) long manifold to control valve

1шт.

33

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- elbow, was 150031A1

1шт.

35

153082A1

VALVE

ASSEMBLY - control parts list Figures 8-60 - 8-66

1шт.

36

153590A1

GROMMET

- rubber hose protection

1шт.

Выбрано товаров: 36
