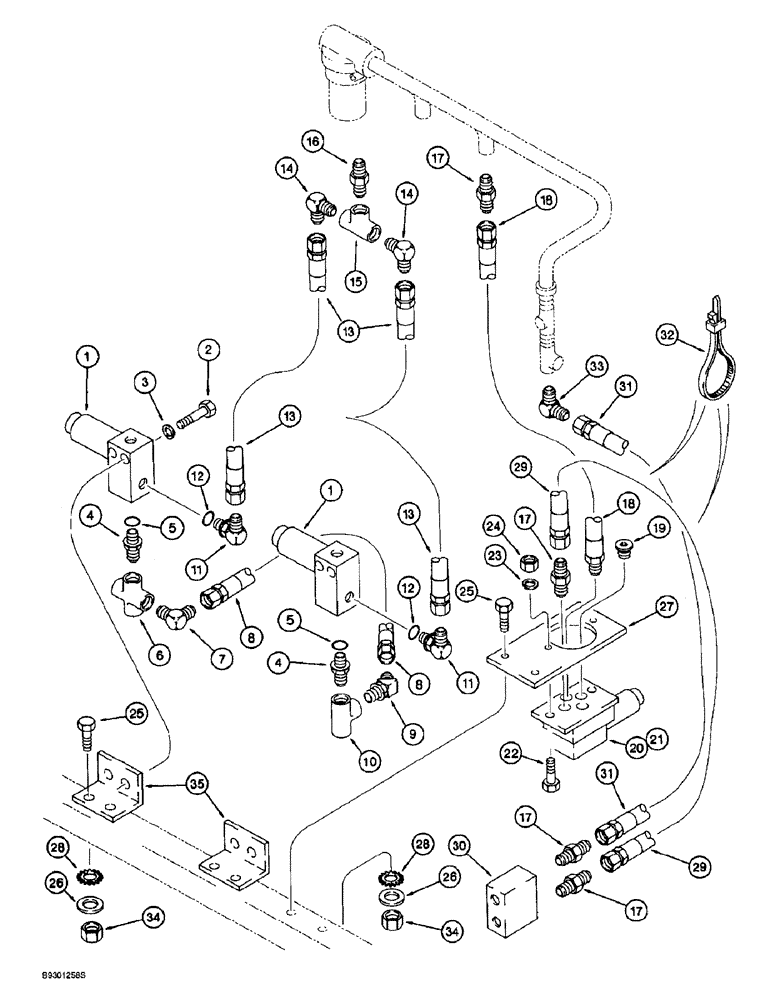

Запчасти Case 9010 (8-36) - HYDRAULIC CONTROL CIRCUIT, SOLENOID HYDRAULICS (08) - HYDRAULICS

1

150501A1

VALVE

ASSEMBLY solenoid swing brake and two speed travel, parts list Figure 8-46

2шт.

2

862-6050

HEX SOC SCREW,M6 x 50mm, Cl 12.9

BOLT hex socket 6 - 1.0 x 50 mm, class 12.9

4шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

4

152899A1

HYD CONNECTOR

CONNECTOR straight hydraulic, Includes: Ref. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector, was 150960A1

1шт.

6

152303A1

4 WAY CONNECTION

CROSS special

1шт.

7

153596A1

ADAPTER

ELBOW 90 degree hydraulic

1шт.

8

151862A1

HOSE,63.00 mm ID x 400.00 mm

- Swing brake solenoid to travel solenoid 63.00 mm ID x 400.00 mm

1шт.

9

153599A1

ADAPTER

ELBOW 45 degree

1шт.

10

152135A1

TEE

hydraulic

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree hydraulic, Includes: Ref. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

13

152276A1

HOSE,63mm ID x 550mm L

- Solenoid return to tank 63.00 mm ID x 550.00 mm

2шт.

14

153596A1

ADAPTER

ELBOW 90 degree hydraulic

2шт.

15

152135A1

TEE

hydraulic

1шт.

16

152129A1

NIPPLE, LUBE

ADAPTER straight hydraulic

1шт.

17

153597A1

ADAPTER

straight hydraulic

4шт.

18

153408A1

HOSE

22-7/16 inch (570 mm), Serial Range: long-tank

1шт.

19

151030A1

PLUG

port

1шт.

20

150425A1

VALVE

ASSEMBLY solenoid control shutoff, parts list Figure 8-42

1шт.

21

150447A1

PLATE

adapter

1шт.

22

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

BOLT hex socket 6 - 1.0 x 25 mm, class 12.9

2шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

24

829-1306

NUT,M6, Cl 10

hex 6 mm - 1.0, class 10

2шт.

25

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, class 10.9

6шт.

26

150988A1

WASHER

flat, special 12 mm

6шт.

27

152602A1

BRACKET

mounting

1шт.

28

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER internal tooth lock 12 mm

3шт.

29

152713A1

HOSE ASSY.

HOSE 66-15/16 inch (1700 mm) long control shutoff, Serial Range: solenoid-manifold

1шт.

30

153049A1

MANIFOLD

pilot hydraulic

1шт.

31

152756A1

HOSE ASSY.

HOSE 45-1/4 inch (1150 mm) long manifold, Serial Range: return-tank

1шт.

32

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

33

153495A1

ADAPTER

ELBOW 90 degree hydraulic

1шт.

34

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

6шт.

35

152603A1

BRACKET

mounting

2шт.
