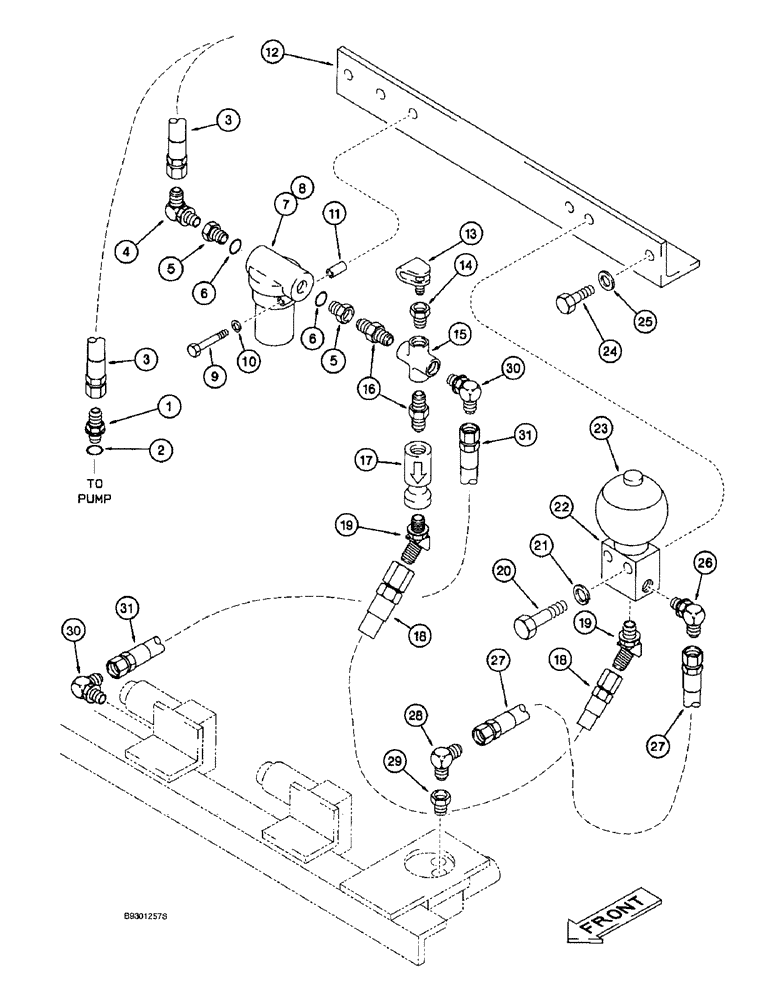

Запчасти Case 9010 (8-34) - HYDRAULIC CONTROL CIRCUIT, PILOT LINE FILTER, CHECK VALVE AND ACCUMULATOR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER straight hydraulic, Includes: Ref. 2
1шт.
2
154475A1
O-RING
adapter, was 150031A1
1шт.
3
152612A1
HOSE,95.00 mm ID x 600.00 mm
- Pump to filter 95.00 mm ID x 600.00 mm
1шт.
4
153495A1
ADAPTER
ELBOW 90 degree hydraulic
1шт.
5
152317A1
SOCKET
REDUCER special, Includes: Ref. 6
2шт.
7
153168A1
FILTER
ASSEMBLY hydraulic, Includes: Ref. 8
1шт.
9
153231A1
SPECIAL BOLT,High Strength, Hex, M6 x 80mm
BOLT hex, special special, filter mounting
2шт.
10
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
2шт.
11
150325A1
SPACER
tube 8 ID x 13.8 O.D. x 10.35 mm long
1шт.
12
153070A1
BRACKET
mounting and accumulator mounting
1шт.
13
S243647
COUPLING
ASSEMBLY quick disconnect
1шт.
14
158016A1
BUSHING
reducer
1шт.
15
152686A1
CROSS
special at check valve
1шт.
16
152120A1
BOX
CONSOLE ASSEMBLY control, left-hand
2шт.
17
152937A1
VALVE, CHECK
VALVE check
1шт.
18
152891A1
HOSE
19-11/16 inch (500 mm) long check, Serial Range: valve-accumulator
1шт.
19
153488A1
ADAPTER
ELBOW 45 degree
2шт.
20
827-8055
BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9
- hex, 8 - 1.25 x 55 mm, class 10.9
2шт.
21
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
22
150898A1
MANIFOLD
at accumulator
1шт.
23
150894A1
ACCUMULATOR
hydraulic
1шт.
24
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
hex, full threads, 10 - 1.5 x 20 mm, class 10.9
2шт.
25
150409A1
WASHER
flat, special 10.5 x 21 x 3.2 mm
2шт.
26
153495A1
ADAPTER
ELBOW 90 degree hydraulic
1шт.
27
153365A1
HOSE
29-9/16 inch (750 mm), Serial Range: long-manifold
1шт.
28
153563A1
ELBOW
90 degree
1шт.
29
150848A1
NIPPLE, LUBE
ADAPTER straight
1шт.
30
153596A1
ADAPTER
ELBOW 90 degree hydraulic
2шт.
31
152281A1
HOSE,63.00 mm ID x 800.00 mm
63.00 mm ID x 800 mm - Pilot line filter to swing brake solenoid
1шт.
Выбрано товаров: 31
