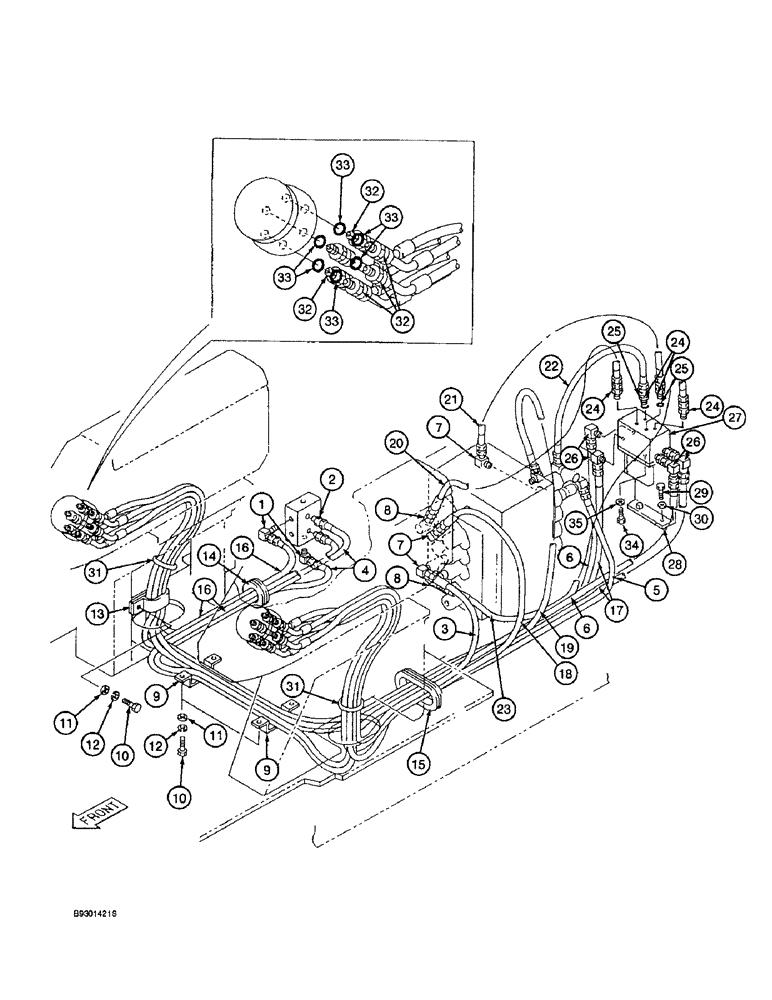

Запчасти Case 9010 (8-26) - HYDRAULIC CONTROL CIRCUIT, HAND CONTROLLERS TO MAIN CONTROL VALVE (08) - HYDRAULICS

1

153495A1

ADAPTER

ELBOW 90 degree hydraulic

2шт.

2

153597A1

ADAPTER

straight hydraulic

2шт.

3

152983A1

HOSE

71 inch (1800 mm) long left-hand controller to front swing section of control valve

1шт.

4

153089A1

HOSE

86-5/8 inch (220 mm) long left-hand, Serial Range: controller-manifold

2шт.

5

152962A1

HOSE

90-5/8 inch (2300 mm) long left-hand controller to rear swing section of control valve

1шт.

6

150387A1

HOSE

92-1/2 inch (2350 mm) long left-hand controller to end of cushion valve

2шт.

7

152749A1

ADAPTER

ELBOW 90 degree

6шт.

8

152748A1

ADAPTER

straight

2шт.

9

152999A1

BRACKET

CLAMP hose

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

5шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

5шт.

12

892-11010

LOCK WASHER,M10

5шт.

13

152762A1

CLAMP

hose

1шт.

14

152531A1

GROMMET

rubber

1шт.

15

152966A1

GROMMET

rubber

1шт.

16

153088A1

HOSE

59 inch (1500 mm) long right-hand, Serial Range: controller-manifold

2шт.

17

153091A1

HOSE

106-5/16 inch (2700 mm) long right-hand controller to end of cushion valve

2шт.

18

152985A1

HOSE

110-1/4 inch (2800 mm) long right-hand controller to front bucket section of control valve

1шт.

19

152988A1

HOSE

126 inch (3200 mm) long right-hand controller to rear bucket section of control valve

1шт.

20

152781A1

HOSE

33-7/16 inch (850 mm) long front arm section of control valve to cushion valve

1шт.

21

152781A1

HOSE

33-7/16 inch (850 mm) long rear arm section of control valve to cushion valve

1шт.

22

152872A1

HOSE

27-5/8 inch (700 mm) long rear boom section of control valve to cushion valve

1шт.

23

152758A1

HOSE ASSY.

HOSE, 49-3/16 inch (1250 mm) long front boom section of control valve to cushion valve

1шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER straight hydraulic

4шт.

25

154475A1

O-RING

adapter, was 150031A1

1шт.

26

153526A1

ELBOW

90 degree, special

4шт.

27

153099A1

VALVE, CUSHION

VALVE ASSEMBLY cushion parts list Figure 8-88

1шт.

28

153097A1

BRACKET

mounting

1шт.

29

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

30

150988A1

WASHER

flat, special 12 mm

2шт.

31

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

32

152747A1

ADAPTER

straight hydraulic, Includes: Ref. 33

12шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

34

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads 10 - 1.5 x 20 mm, class 10.9

2шт.

35

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.
