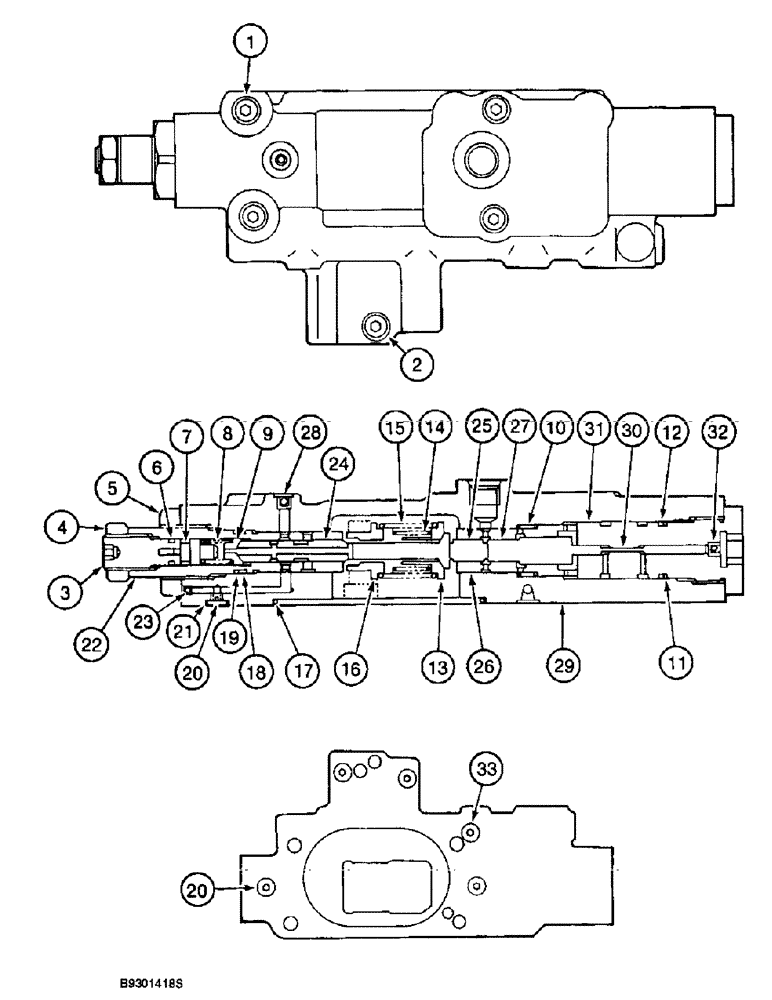

Запчасти Case 9010 (8-24) - 156858A1 REGULATOR ASSEMBLY - REAR (08) - HYDRAULICS

156858A1

CLUTCH SERVO

REGULATOR ASSEMBLY pump, Includes: Ref. 1-33

1шт.

For complete pump, see Figures 8-04 and 8-14 - 8-24.

1шт.

1

863-8050

HEX SOC SCREW,M8 x 50mm, Cl 12.9

BOLT hex socket 8 - 1.25 x 50 mm, class 12.9

4шт.

2

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

1шт.

3

156859A1

PLUG

spring tension

1шт.

4

156860A1

NUT

hex, special

1шт.

5

156862A1

NUT

hex, special

1шт.

6

154459A1

O-RING

plug

1шт.

7

156863A1

SPRING SEAT

SEAT spring

1шт.

8

156864A1

SPRING

compression

1шт.

9

156865A1

SPRING SEAT

SEAT spring

1шт.

10

156869A1

SPRING

compression

1шт.

1

153979A1

BACK-UP RING

RING backup

1шт.

12

154499A1

O-RING

plug

1шт.

13

156871A1

SPRING SEAT

SEAT spring

1шт.

14

156868A1

SPRING

compression inner

1шт.

15

156867A1

SPRING

compression outer

1шт.

16

156866A1

SPRING SEAT

SEAT spring

1шт.

17

154697A1

O-RING

regulator to pump housing

1шт.

18

154483A1

O-RING

sleeve to regulator housing

1шт.

19

153967A1

BACK-UP RING

RING backup

1шт.

20

156872A1

ORIFICE

PLUG orifice

1шт.

21

154455A1

O-RING

plug

5шт.

156861A1

BODY

HOUSING ASSEMBLY regulator, Includes: Ref. 22-29

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG oil passage

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING regulator

1шт.

156870A1

PISTON

ASSEMBLY regulator, Includes: Ref. 30-32

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG special, piston guide

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

33

155961A1

ORIFICE

PLUG orifice

1шт.
