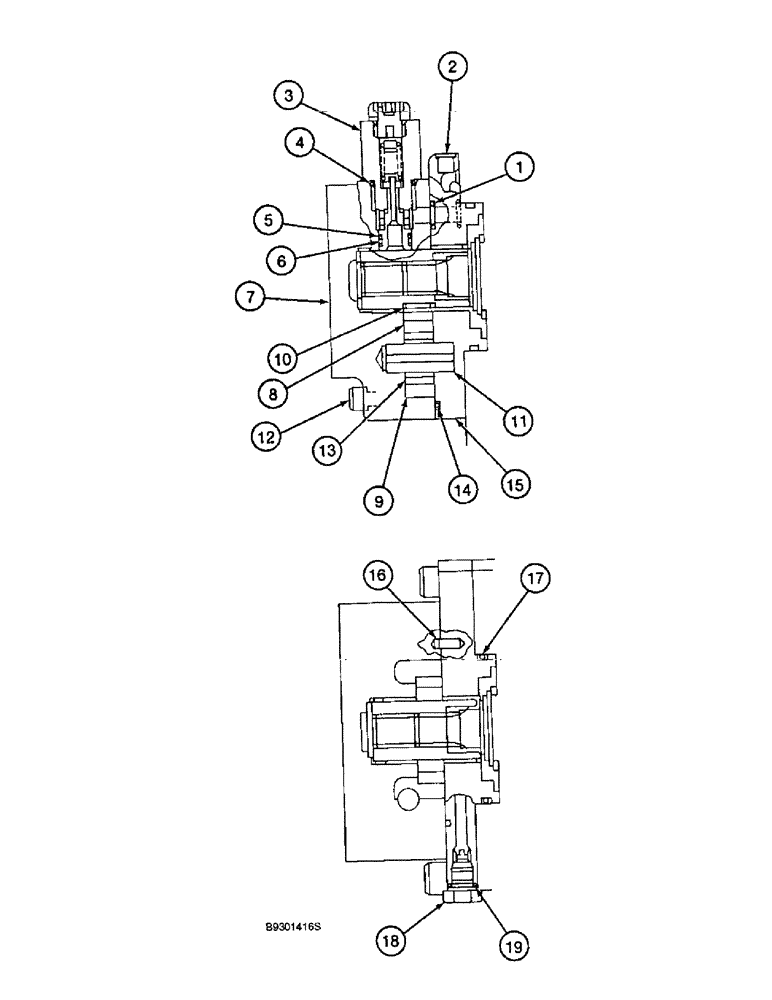

Запчасти Case 9010 (8-18) - 156810A1 PILOT GEAR PUMP (08) - HYDRAULICS

156810A1

GEAR

PUMP ASSEMBLY gear, Includes: Ref. 1-19

1шт.

1

154459A1

O-RING

oil passage

3шт.

2

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

156820A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, Includes: Ref. 3-6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE relief

1шт.

4

154487A1

O-RING

outer, relief valve

1шт.

5

154470A1

O-RING

inner, relief valve

1шт.

6

153958A1

BACK-UP RING

RING backup

2шт.

156815A1

PUMP

HOUSING ASSEMBLY gear pump, Includes: Ref. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING pilot pump

1шт.

8

156816A1

GEAR

pilot pump

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR driven, pilot pump

1шт.

10

156819A1

BUSHING

pump drive end

2шт.

11

156818A1

GEAR SHAFT

SHAFT gear

1шт.

12

863-8045

HEX SOC SCREW,M8 x 45mm, Cl 12.9

- hex socket, 8 - 1.25 x 45 mm, class 12.9

4шт.

13

156817A1

BUSHING

pilot pump

1шт.

14

156814A1

O-RING

to pilot pump housing

1шт.

15

156813A1

COVER

gear pump

1шт.

16

156812A1

COTTER PIN

PIN dowel

2шт.

17

154667A1

O-RING

end cover

1шт.

18

156811A1

PLUG

port

1шт.

19

154455A1

O-RING

plug

1шт.
