Запчасти Case 9010 (8-14) - 156803A1 HYDRAULIC PUMP (08) - HYDRAULICS

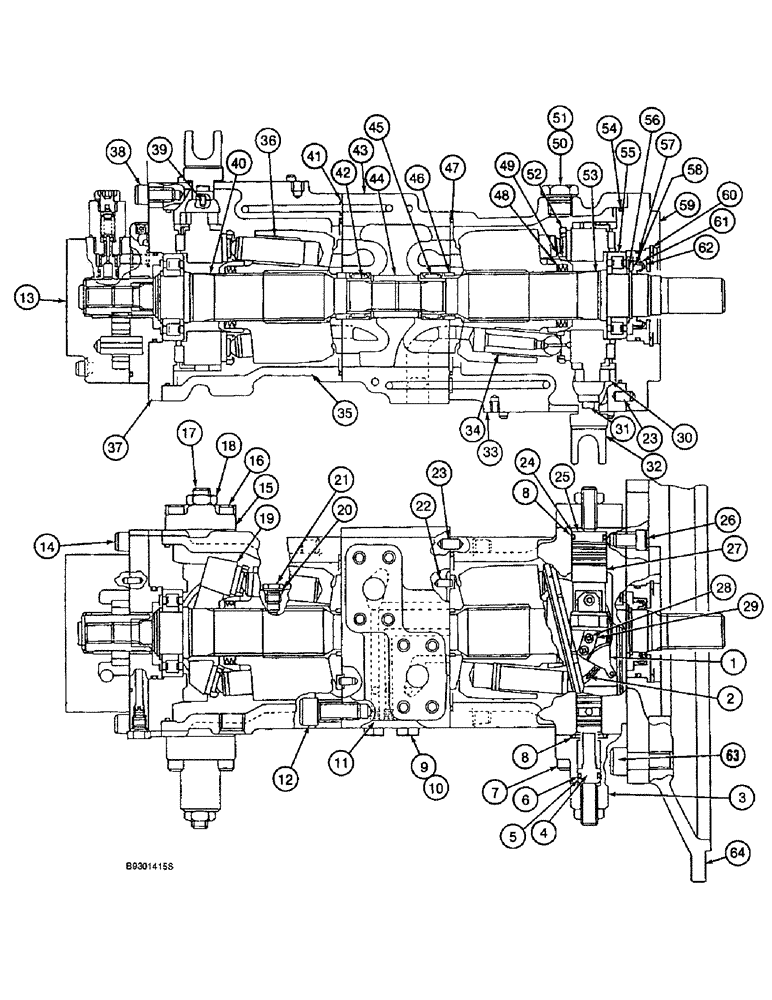

Схема запчастей Case 9010 - (8-14) - 156803A1 HYDRAULIC PUMP (08) - HYDRAULICS
7
15
50
37
36
43
39
47
57
48
20
25
49
18
6
2
22
3
23
33
17
64
46
54
45
13
53
21
44
34
1
29
42
8
51
62
12
28
38
35
16
4
10
30
9
23
8
59
31
61
55
56
41
11
19
40
32
52
63
5
24
60
27
14
26
58

Артикул

Название

Примечание

Количество

156803A1

PISTON

PUMP ASSEMBLY hydraulic without regulator assembliesl, Includes: Ref. 1-40

1шт.

For complete pump, see Figures 8-04 and 8-14 - 8-24.

1шт.

1

156804A1

GUIDE

gear

4шт.

2

156805A1

BEARING, ROLLER

BEARING roller

4шт.

3

156806A1

CAP

HOUSING valve

2шт.

4

156807A1

SPRING SEAT

SEAT spring

2шт.

5

153964A1

BACK-UP RING

RING backup

2шт.

6

154479A1

O-RING

spring seat

2шт.

7

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

8шт.

8

154509A1

O-RING

, Serial Range: cover-housing

4шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

port plug

2шт.

10

156808A1

PLUG

port

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG port

10шт.

12

156809A1

BOLT (MACHINE),Hex Skt

BOLT hex socket special

8шт.

13

156810A1

GEAR

PUMP ASSEMBLY gear parts list Figure 8-18

1шт.

14

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT hex socket 10 - 1.5 x 35 mm, class 12.9

4шт.

15

156821A1

COVER

regulator

2шт.

16

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

8шт.

17

156822A1

SET SCREW

set

4шт.

18

156823A1

LOCK NUT

lock set screw

4шт.

19

156824A1

PLATE

swash

2шт.

20

154455A1

O-RING

1шт.

21

156811A1

PLUG

port

1шт.

22

156812A1

COTTER PIN

PIN dowel

2шт.

23

156825A1

COTTER PIN

PIN dowel

10шт.

24

153987A1

BACK-UP RING

RING backup

2шт.

25

156826A1

STOP

piston

2шт.

26

156827A1

BOLT (MACHINE),Hex Skt

BOLT hex socket, special

8шт.

27

156828A1

PISTON

regulator

2шт.

28

156829A1

SCREW

fillister head, special

8шт.

29

156830A1

GEAR

swash plate positioning

4шт.

30

156831A1

SLIDE

metal

2шт.

31

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

BOLT hex socket 6 - 1.0 x 16 mm, class 12.9

4шт.

32

156832A1

STAY

BRACKET retaining

2шт.

33

156833A1

CASE

HOUSING pump flange end

1шт.

34

156834A1

BLOCK ASSY.

BLOCK ASSEMBLY cylinder flange end, includes block, valve plate and 9 pistons

1шт.

35

156835A1

CASE

HOUSING pump rear

1шт.

36

156836A1

BLOCK ASSY.

BLOCK ASSEMBLY cylinder closed end, includes block, valve plate and 9 pistons

1шт.

37

156837A1

REAR COVER

COVER pump rear

1шт.

38

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT hex socket 10 - 1.5 x 20 mm, class 12.9

4шт.

39

156838A1

PIN

dowel

4шт.

40

156839A1

SHAFT

drive rear

1шт.

156803A1

PISTON

PUMP ASSEMBLY hydraulic without regulator assemblies, Includes: Ref. 41-64

1шт.

For complete pump, see Figures 8-04 and 8-14 - 8-24

1шт.

41

154459A1

O-RING

oil passage

7шт.

42

156840A1

BEARING CONE

inner, needle bearing

2шт.

43

156841A1

BLOCK

HOUSING pump center section

1шт.

44

156842A1

COUPLING

drive shaft

1шт.

45

156843A1

NEEDLE BEARING

BEARING needle

2шт.

46

156844A1

COLLAR

shaft

2шт.

47

154767A1

O-RING

housing

2шт.

48

156845A1

SPRING SEAT

SEAT spring

2шт.

49

156846A1

KIT

SPRING compression

2шт.

50

154487A1

O-RING

3шт.

51

156847A1

PLUG

port

3шт.

52

156848A1

RETAINER

ASSEMBLY shoe consists of plate and holder

1шт.

53

156849A1

SHAFT

drive front, flange end

1шт.

54

156850A1

O-RING

end, Serial Range: cover-housing

2шт.

55

156851A1

BEARING, ROLLER

BEARING roller

2шт.

56

156852A1

SPACER

2шт.

57

154667A1

O-RING

end cover

1шт.

58

800-1135

SNAP RING,M35, Ext

Retaining, size 35 shaft M35, Ext

2шт.

59

156853A1

FLANGE

COVER end front

1шт.

60

156854A1

RING, SNAP

RING snap

1шт.

61

156855A1

OIL SEAL

shaft flange end

1шт.

62

156856A1

CASE

RETAINER shaft seal

1шт.

63

861-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

BOLT hex socket 16 - 2.0 x 35 mm, class 12.9

4шт.

64

156857A1

FLANGE

pump mounting

1шт.

Выбрано товаров: 68
