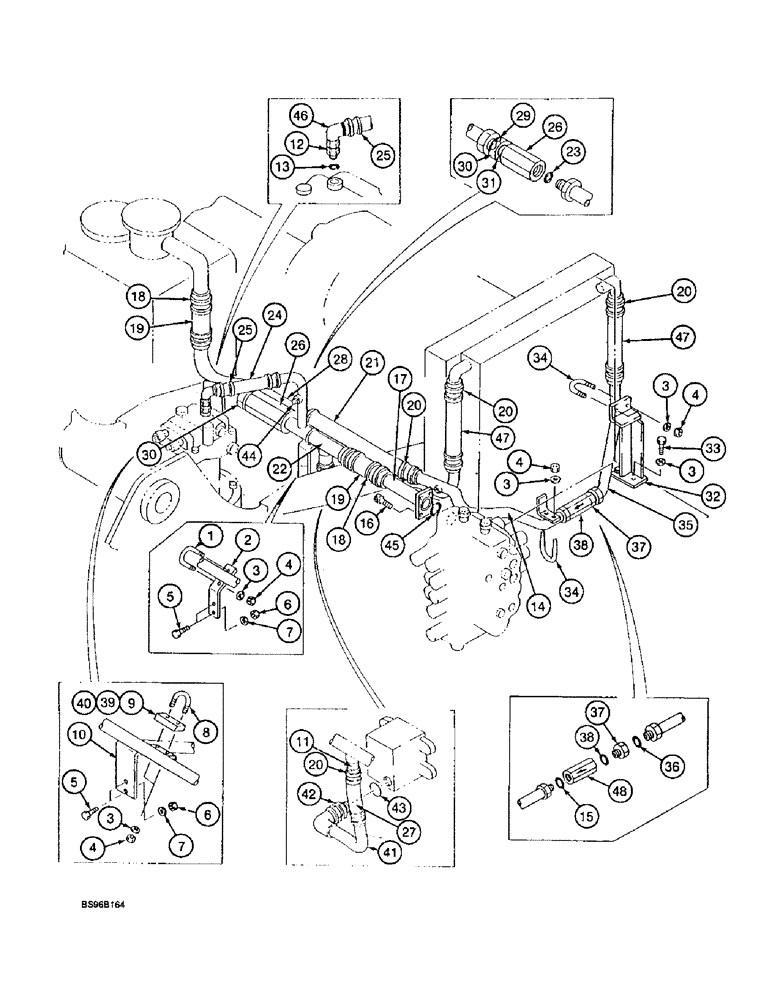

Запчасти Case 9010 (8-12) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

1

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT U-type tube clamp retaining

1шт.

2

152544A1

BRACKET

mounting

1шт.

3

150732A1

WASHER

special 10 mm

10шт.

4

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

8шт.

5

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, class 10.9

4шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

4шт.

7

150988A1

WASHER

flat, special 12 mm

4шт.

8

153160A1

U-BOLT,M10 x 46mm W x 80mm L

BOLT U-type

1шт.

9

153145A1

SHIM

PLATE shim

1шт.

10

153147A1

BRACKET

mounting

1шт.

11

151913A1

HYD TUBE,34 mm OD, 105 mm Length

TUBE hydraulic

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight hydraulic, Includes: Ref. 13

1шт.

13

154503A1

O-RING

adapter

1шт.

14

153151A1

TUBE

from cooler at check valve, Includes: Ref. 15

1шт.

15

154523A1

O-RING

tube

1шт.

16

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

17

152928A1

TUBE

control valve return

1шт.

18

150887A1

CLAMP

adjustable

8шт.

19

152788A1

HYDRAULIC HOSE

8-5/8 inch (220 mm) long

2шт.

20

150885A1

COLLAR

CLAMP adjustable

16шт.

21

151958A1

HOSE,34.00 mm ID x 450.00 mm

- Cooling system return 34.00 mm ID x 450.00 mm

1шт.

22

152541A1

TUBE,127 mm OD, 358.2, 159.1 mm Length

control valve return, Includes: Ref. 23

1шт.

23

154559A1

O-RING

tube

1шт.

24

152584A1

HOSE,27.00 mm ID x 170.00 mm

- Swing motor return 27.00 mm ID x 170.00 mm

1шт.

25

150881A1

CLIP,ELECTRICAL

CLAMP hose

4шт.

26

153267A1

VALVE, CHECK

VALVE check

1шт.

27

151950A1

HOSE,34.00 mm ID x 172.00 mm

- Cooling system 34.00 mm ID x 172.00 mm

1шт.

28

153149A1

TUBE,42.7 mm OD, 228.7, 167.5 mm Length

cooler return, at tank

1шт.

29

154589A1

O-RING

seal to check valve

1шт.

30

151471A1

UNION

ADAPTER straight to check valve, Includes: Ref. 31

1шт.

31

154559A1

O-RING

adapter

1шт.

32

153155A1

BRACKET

mounting

1шт.

33

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

34

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT U-type

2шт.

35

153153A1

TUBE,34 mm OD, 420, 218.7 mm Length

return to tank, at cooler

1шт.

36

154549A1

O-RING

hose

1шт.

37

151468A1

UNION

CONNECTOR straight, Includes: Ref. 38

1шт.

38

154523A1

O-RING

connector

1шт.

39

152786A1

SHIM

3/32 inch (2.3 mm) thick

1шт.

40

152787A1

SHIM

1/8 inch (3.2 mm) thick

1шт.

41

152632A1

TUBE,132.9, 135 mm Length

auxiliary control valve return

1шт.

42

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER straight, Includes: Ref. 43

1шт.

43

154523A1

O-RING

adapter

1шт.

44

151030A1

PLUG

port

1шт.

45

154569A1

O-RING

, Serial Range: O-RING-valve

1шт.

46

152582A1

TUBE,27.2 mm OD, 105, 46.6 mm Length

90 degree

1шт.

47

150820A1

HYDRAULIC HOSE,34.00 mm ID x 500.00 mm

- At radiator 34.00 mm ID x 500.00 mm

2шт.

48

153481A1

VALVE, CHECK

VALVE check

1шт.
